    Multi-function Single Side Double Station Spot Welding Machine
  • Voltage
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

Automation High-Precision Spot Welding Machine Single Sided for Battery Pack Lithium Battery

Single Sided Battery Pack Lithium Battery Automation High-Precision Spot Welding Machine

Equipment introduction

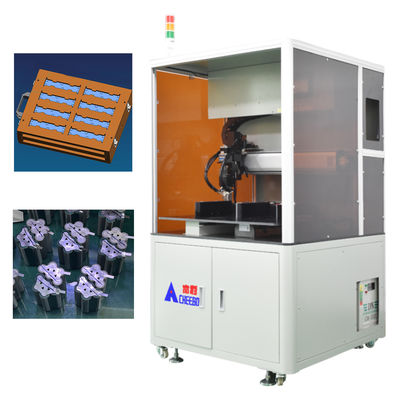

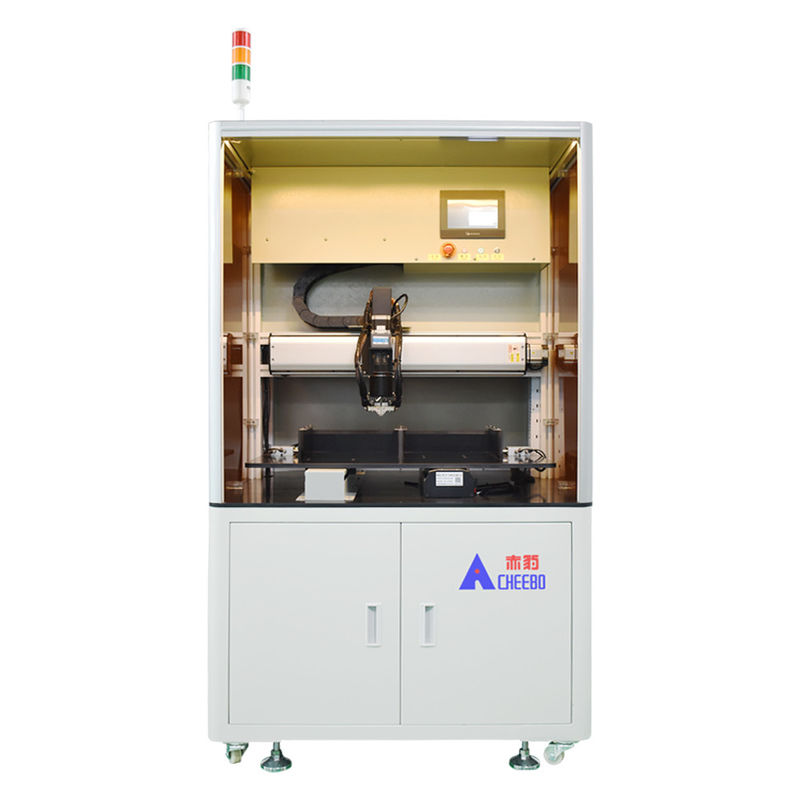

● This lithium battery spot welding machine is a multi-axis control machine tool developed by modern automation experts, equipped with precision transmission and motor control mechanism, self-propelled travelling mechanism, automated production equipment, effective real-time control of processing.

● Applicable to fully automatic single-side spot welding of 18650, 21700, 26650, 32700 and other cylindrical battery combinations.

● CBMO4-1710 Li-ion battery welding single-side machine adopts welding fixture design, which can be automatically turned over after A-side welding is completed, and can be automatically turned over to B-side welding without manually turning over the fixture.

● CHEEBO core welding head automatic spot welder can be rotated 135°, which is suitable for the welding of irregular shape nickel sheet, and effectively avoid the needle dirt during welding.

● There are grid protection devices on both sides to ensure the safe operation of the equipment.

● Blow-up welding and false welding equipment will automatically alarm, automatic area replenishment welding, single-point replenishment welding manual adjustment.

● Adopt HIWIN module, high precision, low noise, smooth and durable sliding.

● Adopt Panasonic servo, fast welding speed and high precision.

● High-definition LCD touch screen, human-machine interactive interface, easy and convenient operation.

● Independently developed various automation intelligent system, convenient for equipment operation, help to improve production efficiency.

● With energy switching function, production counting function, soldering foot compensation function, manual debugging function and so on. It can assist the intelligent operation of equipment.

● Manual programming, CAD drawing, spot welding path import, quick programming. Easy to learn, fully competent for production line workers.

● Aluminium alloy structure, electrostatic powder coating process, scratch-resistant, anti-rust, anti-static.

● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve production safety factor.


Technical specification
Comprehensive time limit
Equipment weight
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools


Function Introduction



1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Automation High-Precision Spot Welding Machine Single Sided for Battery Pack Lithium Battery 0

2. Precision servo welding head

The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.

Automation High-Precision Spot Welding Machine Single Sided for Battery Pack Lithium Battery 1


3. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Automation High-Precision Spot Welding Machine Single Sided for Battery Pack Lithium Battery 2
