Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder

  • Temporary Load Rate
    20%
  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Max. Welding Thickness
    135° (Max.)
  • Purpose
    Welding Nickel Sheet Of Battery Pack
  • XY Shaft Welding Stroke
    400MM*600MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder

Equipment introduction

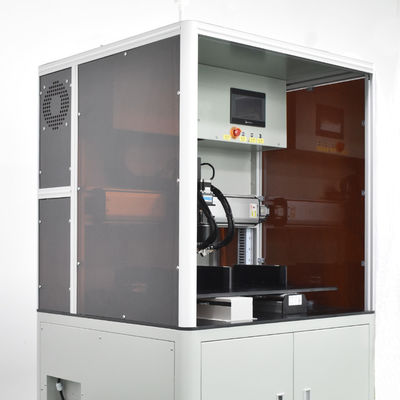

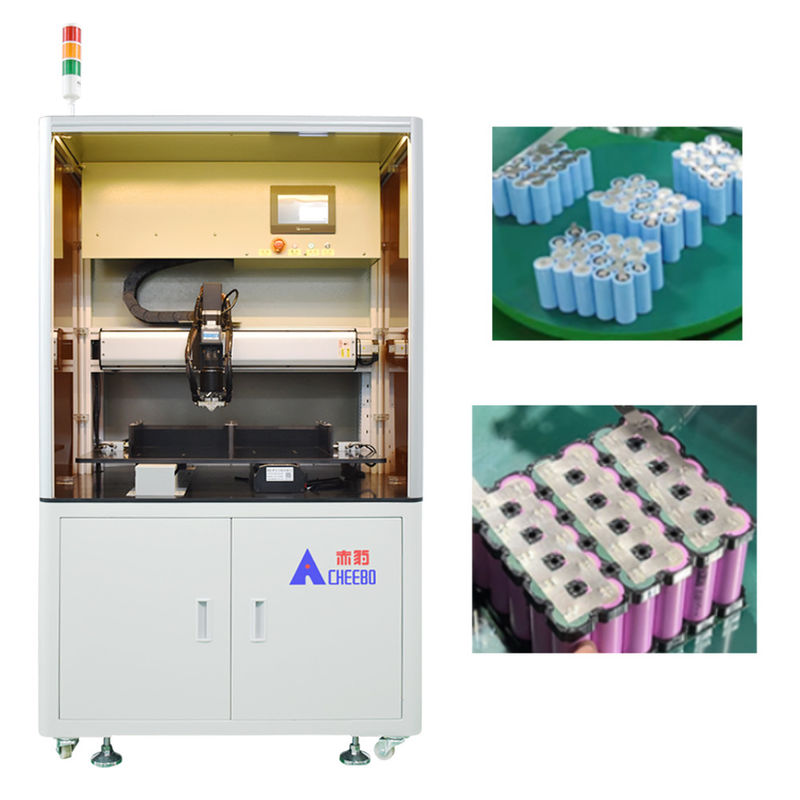

● Spot welding machine with lithium battery package, automatic welding on one side, silent, stable and efficient modular design.



● It adopts heightening design, which can be used for automatic welding of protective plates in various battery pack schemes, and one machine can be used for two purposes.


● CBMO4-6040 lithium battery pack adopts the design of left and right platforms, and the left and right platforms do not interfere with each other, and can be used only by platforms.


● The spot welding machine of lithium battery will automatically alarm the explosive welding and virtual welding equipment, and manually adjust the automatic area repair welding and single-point repair welding.


●CHEEBO's self-developed battery automatic spot welding has multiple automatic intelligent systems, which is convenient for equipment setting and operation and helps to improve production efficiency.


●CHEEBO lithium battery welder has the functions of energy switching, production counting, capillary compensation and manual debugging.


● The welding direction can be adjusted according to the slot position of the nickel sheet of the battery pack. The maximum rotation angle of the welding needle is 135, which effectively avoids the welding error caused by the inability to rotate the angle.


● Automatic batch spot welding has the functions of manual programming, CAD drawing and spot welding path introduction, which can be programmed quickly. Easy to learn, ordinary workers are completely capable.


● The automatic spot welding machine for battery pack adopts 7-inch high-definition LCD touch screen, with simple human-computer interaction interface and convenient operation.


● The lithium battery spot welding machine adopts HIWIN guide rail module, which has high precision, low noise, smooth sliding and durability.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention and antistatic.


● Imported acrylic protective board, beautiful and generous, strong sense of science and technology, intuitive operation, improving production safety factor.



Application case



1. Energy storage battery pack        2. Electric bicycle battery pack           3. Power tool battery pack

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 0      Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 1        Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 2



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction

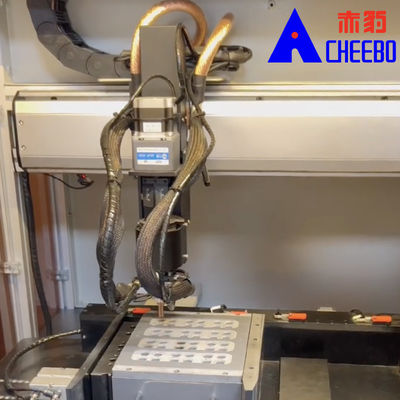

 1.  Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 3



 2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 4



 3. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Power Battery Pack Automatic Battery Spot Welding Machine Single Side Spot Welder 5





FAQ



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
