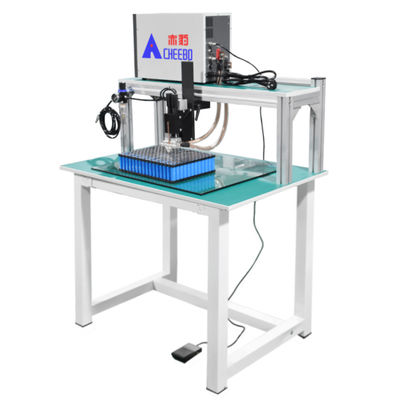

● Applications:Power lithium-ion battery pack welding, 3C lithium-ion battery pack welding, NiMH battery pack welding, small hardware parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products welding, etc. It is also suitable for product maintenance, sampling and other welding work.
● Digital LED display, more intuitive adjustment of equipment parameters, easy to learn and operate.
● Self-developed precision welding head with precise pressure adjustment control.
● Proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm and clear welding joints, no false welding and fried welding. Smaller cremation during welding, good surface quality.
● Microcomputer technology control, control grid voltage, automatic tracking compensation.
● Applicable battery size: minimum not less than 50MM, maximum not more than 130MM.
● Adopt high quality tempered glass to protect the table from wear and tear during welding process.
● Adopt the vertical spot welding method for spot welding and manually control the downward pressure depth.
● The welder can pre-store multiple programs, and these programs can be changed and called at will.
● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process
Power on - display 600 OE self-test screen - press the up arrow to enter the system - place the product to be soldered on the desktop -
press the foot pedal - press the soldering head down - spot soldering is complete - the soldering head is back in place
| Welding thickness | 0.02-0.18MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 130MM (Maximum pitch adjustable) |
| Supply current | 3000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 12KW | Equipment size | 600*900*1300MM |

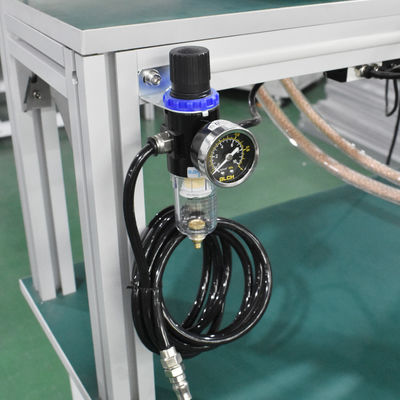

| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
1. Multi-pulse power supply
Digital LED display, simple and convenient button adjustment, one-touch switch, yellow and green prompt light. Simple construction, small size and high power, industrial grade circuit design, safe and reliable welding process
2. Explosion-proof tempered glass
High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.
3. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
