Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use

Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use

  • High Light

    Cylindrical Lithium Ion Battery Welding Machine

    ,

    Cylindrical Battery Cell Welding Machine

    ,

    CNC Battery Cell Welding Machine

  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Welding Power Supply
    Optional
  • Welding Head Rotation Angle
    135° (Max.)
  • Driving Mode
    Pneumatic
  • Welding Mode
    Automatic
  • Welding Method
    Resistance Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use

Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use


Equipment introduction

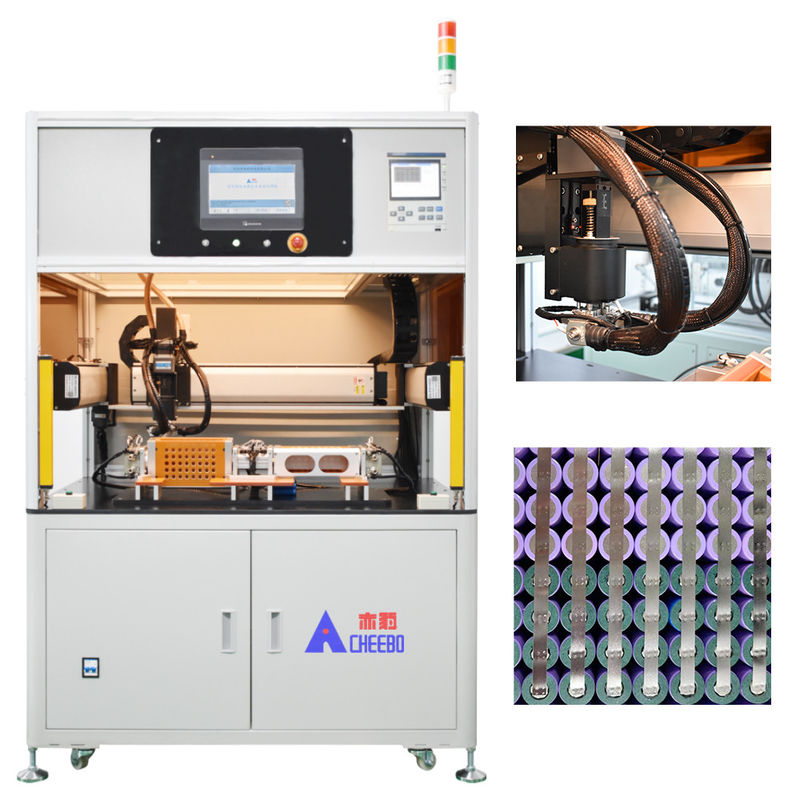

● This lithium battery spot welding machine is a multi-axis control machine tool developed by modern automation experts, equipped with precision transmission and motor control mechanism, self-propelled walking mechanism, automatic production equipment, effective real-time control processing.



● It is suitable for automatic single-sided spot welding of cylindrical battery combinations such as 18650, 21700, 26650, 32700, etc.



● CBMO4-1710 lithium-ion battery welding single-sided machine adopts welding fixture design, which can be automatically flipped after the A side welding is completed, and can be automatically flipped to the B side welding without manually flipping the fixture.



● Chebo electric core welding head automatic spot welding machine can rotate 135°, suitable for the welding of irregular shape nickel sheets, effectively avoid needle contamination during welding.



● Power grid protection devices are provided on both sides to ensure the safe operation of the equipment.



● Explosion welding and virtual welding equipment will automatically alarm, automatic area repair welding, single point repair welding manual adjustment.



● Using HIWIN module, high precision, low noise, smooth and durable sliding.



● Using Panasonic servo, fast welding speed and high precision.



● High-definition LCD touch screen, man-computer interaction interface, simple and convenient operation.



● Independent development of various automatic intelligent systems, convenient equipment operation, help improve production efficiency.



● It has energy switching function, production counting function, welding foot compensation function, manual debugging function, etc. It can assist the intelligent operation of the device.



● Manual programming, CAD drawing, spot welding path import, fast programming. Easy to learn, fully qualified as a production line worker.



● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, anti-static.



● Imported acrylic protection board, beautiful and generous, strong sense of science and technology, intuitive operation, improve production safety factor.



Technical specification
Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method

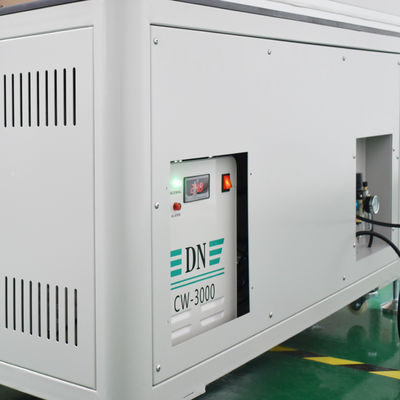

Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools



Function Introduction



 1. Double station rotating platform

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.



Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 0



 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 1



 3. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 2



  1. Welding case



Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 3 Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 4 Cylindrical CNC Lithium Ion Battery Welding Machine Automated Cell Use 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
