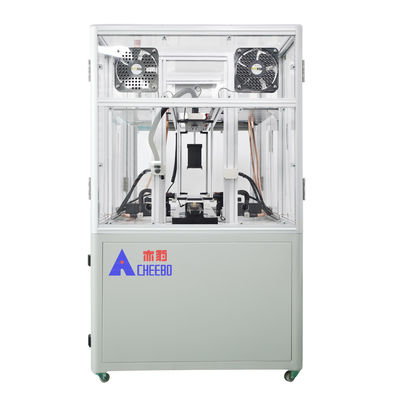

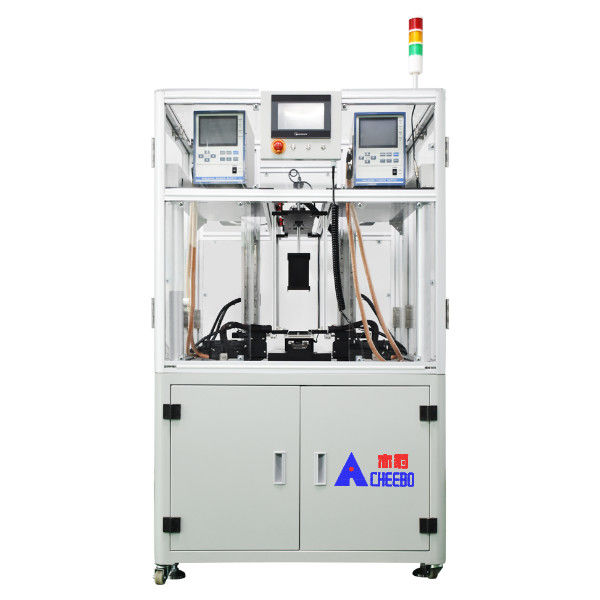

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding

  • High Light

    High Power Battery Spot Welding Machine

    ,

    Automatic Battery Spot Welding Machine 10000A

    ,

    18650 Battery Spot Welder 10000A

  • Applicable Industries
    New Energy、Household Electronic Products
  • Maximum Welding Thickness
    0.02-0.3MM
  • Welding Pressure
    5KG/F (adjustable)
  • Cooling Method
    Water Cooler Control
  • Weight
    330KG
  • Product Name
    5-axis Standard Double-sided Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    cheebo Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding


Equipment introduction

​​● CHEEBO CBMN5-6040 lithium battery spot welding machine adopts double-sided spot welding at the same time, no need to connect the air source production is more efficient, but also avoid the fluctuation caused by the unstable pressure of the air source during welding, welding speed, high precision.


​​● Suitable for welding and assembly of power battery pack with nickel sheet less than 0.3MM.


​​● Transistor welding power supply, the current rising speed is fast, welding efficiency.


​​● Panasonic servo motor control, response speed, accurate and efficient control, long service life, not easy to damage.


​​● Using Taiwan silver screw guide module, high precision, low noise, smooth sliding, durable.


​​● The whole machine adopts imported parts, long service life, low damage rate.


​​● Blast welding, welding equipment automatic alarm, manual adjustment of automatic area repair welding, single point repair welding.


​​● The lithium battery spot welder has the function of manual programming and CAD mapping. The spot welding path can be quickly imported by ​​     CAD mapping to realize programming. Simple and easy to learn, production line workers can be fully competent.


​​● Automatic battery spot welder adopts HD LCD touch screen, easy to operate interactive man-machine interface.


​​● Independent development of a variety of automated intelligent systems, easy to set the running state of equipment, so that production capacity doubled.


​​● With energy switching function, production counting function, welding needle compensation function, manual debugging function.


​​● Adopt through-through design structure (both forward forward and forward back out). It is easy to connect with other assembly processes at the back end, making the assembly and production process of battery packs simpler and faster.


​​● Aluminum alloy skeleton, imported acrylic shield plate, beautiful and generous sense of science and technology, comprehensive visual operation to improve the production safety factor.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 0



 2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 1



 3. Electric precision welding head
No need to connect the air source, low noise. The built-in pressure sensor can monitor and control the instantaneous pressure of welding head. Precision welding head, small pressure inertia, soft pressure

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 2

Application case

1. Energy storage battery pack      2. Electric bicycle battery pack      3. Power tool battery pack

10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 3   10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 4    10000A High Power Automatic Battery Spot Welding Machine Battery Pack Welding 5

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
