Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment

Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment

  • High Light

    Battery Pack CCD Tester

    ,

    Battery Pack Precision Test Equipment

  • Display
    Graphical Display
  • Alarm Device
    Sound And Light, Wrong Position Colour Change
  • Lens Pixel
    500W
  • Accuracy
    99.99%
  • Product Name
    Positive And Negative Detection Equipment
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCCD-2540
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment

CCD Tester Precision Test Equipment Battery Pack Positive And Negative Detection

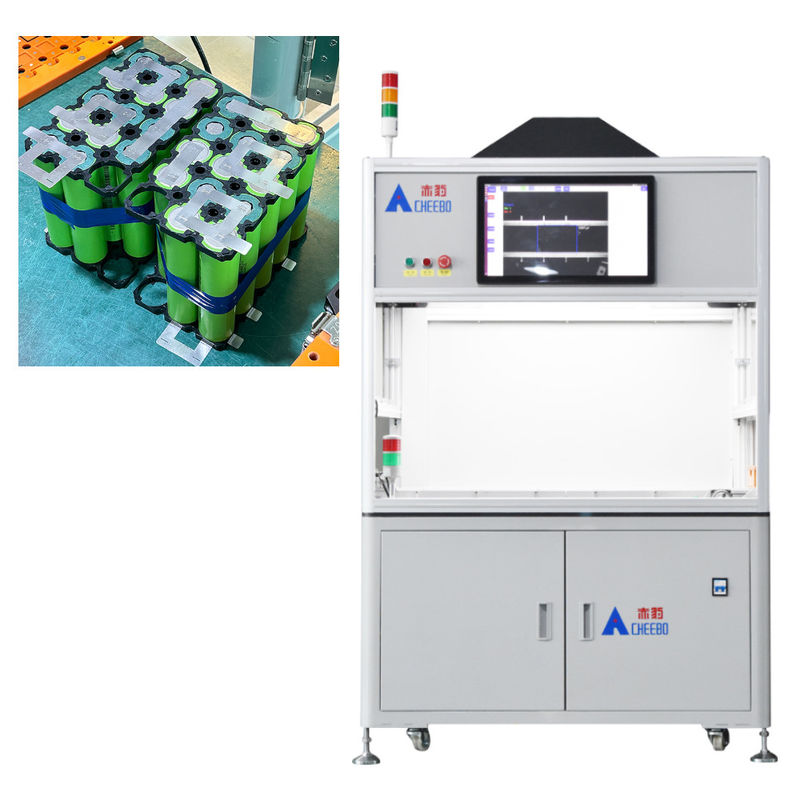

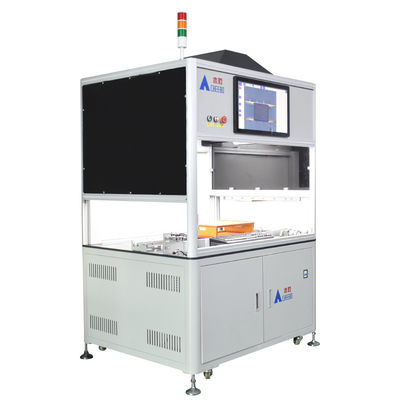

Equipment introduction

● A multi-purpose visual inspection system for CCD visual inspection equipment based on CCD industrial camera using machine vision technology.


● It is suitable for measuring the polarity of a variety of batteries, saving labor costs and being able to carry out highly repetitive work.


● CCD vision inspection can work stably for a long time, with good reliability and high detection accuracy. It has the function of manual debugging, which can be used for fine-tuning each inspection and saving the parameters of the monitoring area, and can also be adjusted for using the overall offset function.


● With counting function, you can count the number of OK/NG.


● With the function of fixture automatic in-place detection.


● Support multi-lock board comparison, and support up to 100 sets of templates.


● The design with adjustable lighting height can be used in various lighting environments.



Device action flow description

Workflow of detection OK: the fixture is fed from the feed port of the belt line -- the belt stops running when it reaches the detection position --



waiting for detection -- detection OK -- Manually close the fixture cover -- click the button to close the cover -- the fixture flows out



Detection NG workflow: the fixture is fed from the belt line feed port -- arrives at the detection position and the belt stops running -- waits for



detection -- Detects NG -- determines the problem point according to the software diagram -- performs manual intervention -- clicks the manual



start detection button -- detects OK -- manually closes the fixture cover -- clicks the closing cover finish button -- the fixture flows out



Technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change




Application case



1. Energy storage battery pack      2. Electric bicycle battery pack       3. Power tool battery pack

Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment 0   Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment 1    Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment 2



Function Introduction


1.Comprehensive multi-angle fill light, HD photo head, industrial-grade camera with high detection accuracy, fast speed and high efficiency, zero error.
Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment 3

 3. 19 "HD touch screen
Clear display, mouse and keyboard configuration, easy to operate, simple and fast, only industrial control system, can store all the test results, convenient verification of data.
Battery Pack CCD Tester Positive And Negative Detection Precision Test Equipment 4
