Cylindrical Battery Pack Testing Machine Positive And Negative Electrode Testing Equipment

Cylindrical Battery Pack Positive And Negative Electrode Testing Equipment


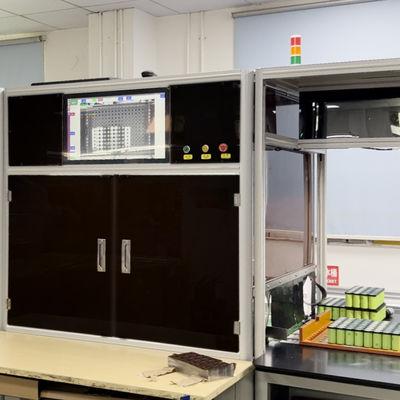

Equipment introduction

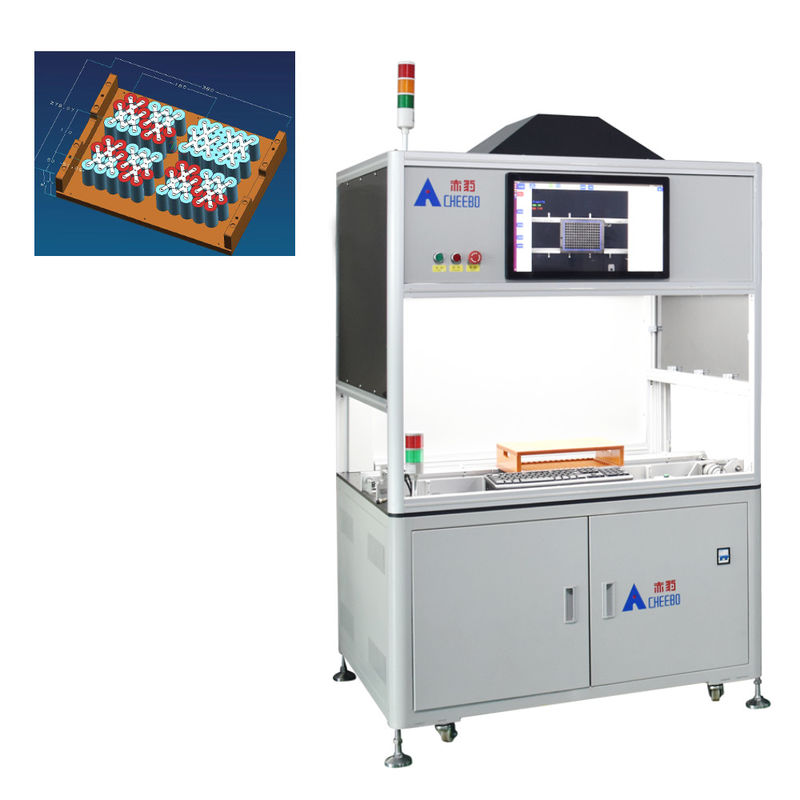

● A CCD vision inspection equipment using machine vision technology based on CCD industrial camera for inspection of multi-purpose vision inspection system


● Applicable to a variety of core polarity character measurement, saving labour costs, and able to carry out highly repetitive work.


● CCD vision inspection can work long time to stable, good reliability, high detection accuracy with manual debugging function, can be fine-tuned for each detection and monitoring area parameter preservation, but also for the use of the overall offset function to adjust.


● With a counting function, you can count the number of OK / G


● With fixture automatic in place detection function


● Support multi-lock board comparison, the maximum support for 100 groups of templates.


● Adopt light height adjustable design, can be used in a variety of lighting environment.



Technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change





Debugging project
  1.  Template setting and sampling
  2.  Threshold adjustment and analysis
  3.  Template preservation and extraction
  4.  Template making and programming
  5.   Parameter setting
Device action flow description

Workflow of detection OK: the fixture is fed from the feed port of the belt line -- the belt stops running when it reaches the detection position --



waiting for detection -- detection OK -- Manually close the fixture cover -- click the button to close the cover -- the fixture flows out



Detection NG workflow: the fixture is fed from the belt line feed port -- arrives at the detection position and the belt stops running -- waits for



detection -- Detects NG -- determines the problem point according to the software diagram -- performs manual intervention -- clicks the manual



start detection button -- detects OK -- manually closes the fixture cover -- clicks the closing cover finish button -- the fixture flows out



Function Introduction



1.Comprehensive multi-angle fill light, HD photo head, industrial-grade camera with high detection accuracy, fast speed and high efficiency, zero error.

Cylindrical Battery Pack Testing Machine Positive And Negative Electrode Testing Equipment 0



2. Large detection range
Support a variety of cell models, detection range: 250*400mm. Can be customized according to requirements.

Cylindrical Battery Pack Testing Machine Positive And Negative Electrode Testing Equipment 1



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
