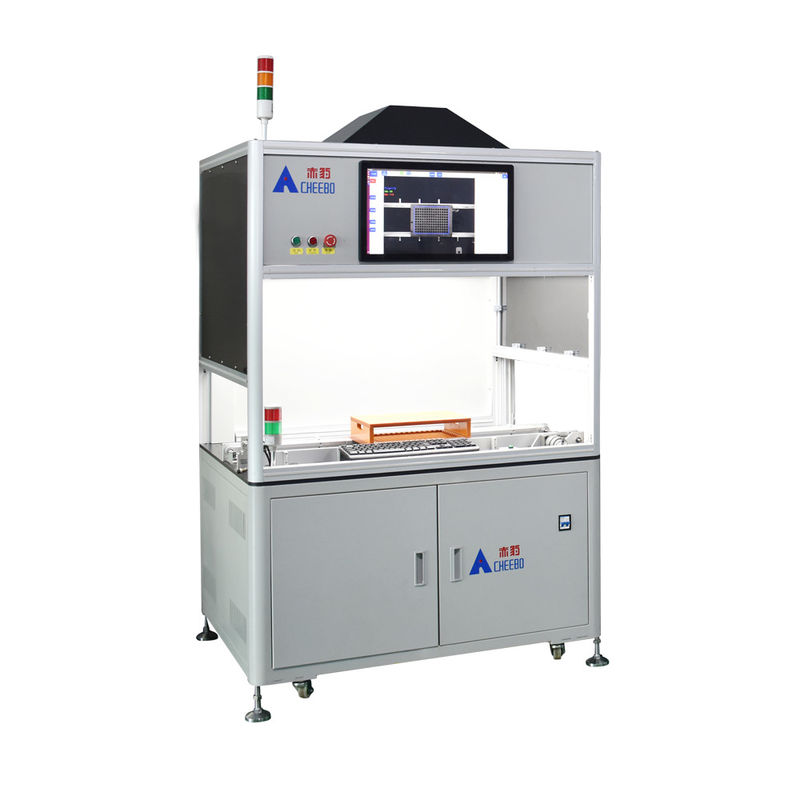

Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment

Brand Name: CHEEBO Technology
Model Number: CBCCD-2540
MOQ: 1 set
Price: NEGOTIABLE
Packaging Details: Marine moisture-proof wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
CE certification
Transmission Mode:
Belt Transmission
Accuracy:
99.99%
Weight:
150KG
Dimensions:
1200*1000*1870MM
Application Scenario:
Polarity Detection Of Various Cells
Product Name:
Battery Positive And Negative Polarity Detection
Supply Ability:
50 Set/Sets per Month
Highlight:

Battery Pack Automated Visual Inspection Equipment

,

Polarity Detection Automated Visual Inspection Equipment

Product Description

Battery Pack Positive And Negative Polarity Automated Visual Inspection Equipment

Equipment introduction

● A multi-purpose vision inspection system for CCD vision inspection equipment based on CCD industrial camera using machine vision technology.


● It is suitable for polarity grid measurement of many kinds of cells, saves labor cost, and can carry out high repetitive work.


● CCD visual inspection can work stably for a long time, good reliability, high detection accuracy and manual debugging function. It can fine-tune and save the parameters of the monitoring area for each detection, and can also be adjusted for the use of the overall offset function.


● With counting function, you can count the number of OK/G.


● It has the function of automatic detection of fixtures.


● Support for multi-lock plate comparison, up to 100 sets of templates.


● The use of light height adjustable design, in a variety of lighting environment can be used.



Equipment dimensional drawing

Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 0



Technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change






Application case



1. Energy storage battery pack      2. Electric bicycle battery pack       3. Power tool battery pack

Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 1   Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 2    Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 3



Function Introduction



 1. 19 "HD touch screen

Clear display, mouse and keyboard configuration, easy to operate, simple and fast, only industrial control system, can store all the test results, convenient verification of data.

Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 4

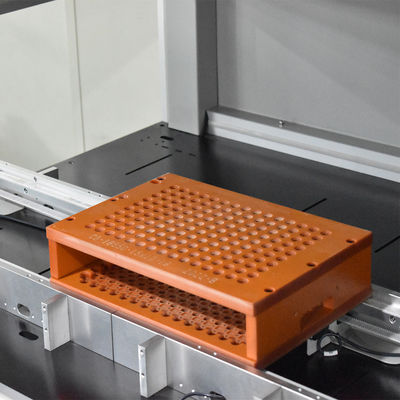

 2. Large detection range
Support a variety of cell models, detection range: 250*400mm. Can be customized according to requirements.

Battery Pack Positive And Negative Polarity Detection Automated Visual Inspection Equipment 5



Service process

Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
