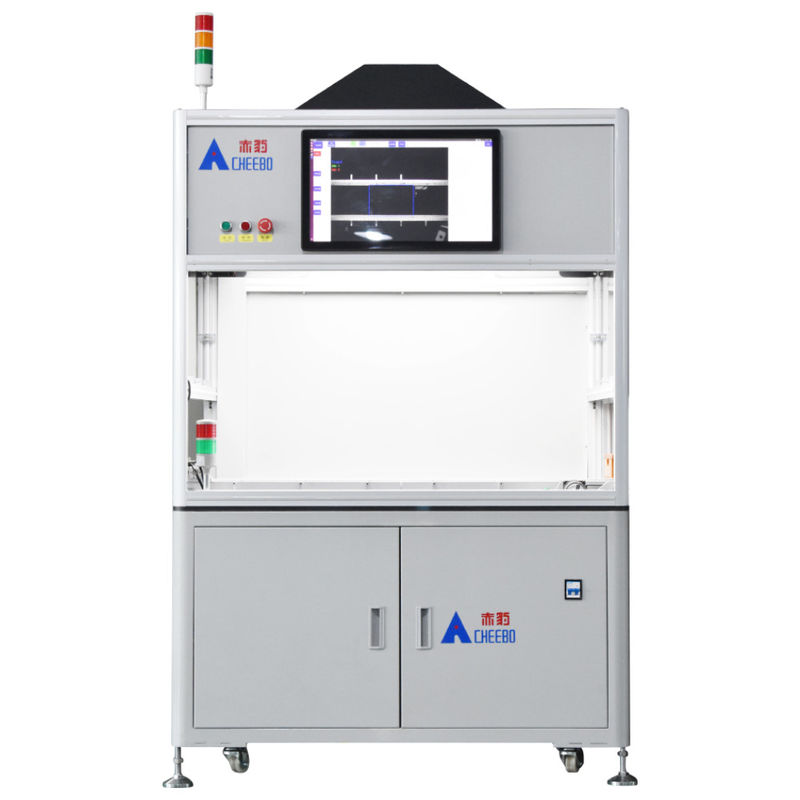

Battery Pack CCD Tester Positive And Negative Visual Test Equipment

Battery Pack CCD Tester Positive And Negative Visual Test Equipment

  • High Light

    Battery Pack CCD Tester

    ,

    Positive And Negative Visual CCD Tester

    ,

    Positive And Negative Visual Test Equipment

  • Test Range
    250*400 (customizable)
  • Test Fill Light
    High Lumen Fill Light Plate
  • Detection Alarm Mode
    Sound And Light Alarm, Error Position Color Change
  • Lens Pixel
    500W Pixel HD Lens
  • Repeated Positioning Accuracy
    ±0.1mm
  • Product Name
    CCD Positive And Negative Visual Detection
  • Place of Origin
    china
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCCD-2540
  • Minimum Order Quantity
    1 set
  • Price
    GOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Battery Pack CCD Tester Positive And Negative Visual Test Equipment

CCD Tester Battery Pack Positive And Negative Visual Test Equipment


Equipment introduction



● A multi-purpose vision inspection system using machine vision technology based on CCD industrial cameras for inspection


● It is suitable for the polar character measurement of various cells, saves labor cost, and can carry out high repeatability work.


● CCD visual inspection can work stably for a long time, has good reliability, high detection accuracy with manual debugging function, can be fine-tuned for each detection and monitoring area parameter saving, can also be adjusted for the use of the overall offset function.


● With counting function, you can count the number of OK/NG


● With fixture automatic spot detection function


● Supports comparison of multiple locking plates, and supports a maximum of 100 groups of templates.


● With adjustable lighting height design, it can be used in a variety of lighting environments.



Technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change



Equipment dimensional drawing

Battery Pack CCD Tester Positive And Negative Visual Test Equipment 0



Function Introduction

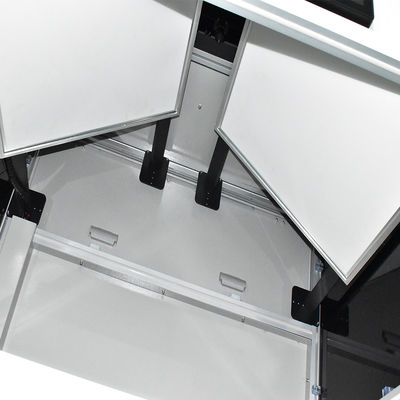

1.Comprehensive multi-angle fill light, HD photo head, industrial-grade camera with high detection accuracy, fast speed and high efficiency, zero error.

Battery Pack CCD Tester Positive And Negative Visual Test Equipment 1



 2. 19 "HD touch screen

Clear display, mouse and keyboard configuration, easy to operate, simple and fast, only industrial control system, can store all the test results, convenient verification of data.

Battery Pack CCD Tester Positive And Negative Visual Test Equipment 2



 3. Large detection range
Support a variety of cell models, detection range: 250*400mm. Can be customized according to requirements.

Battery Pack CCD Tester Positive And Negative Visual Test Equipment 3
