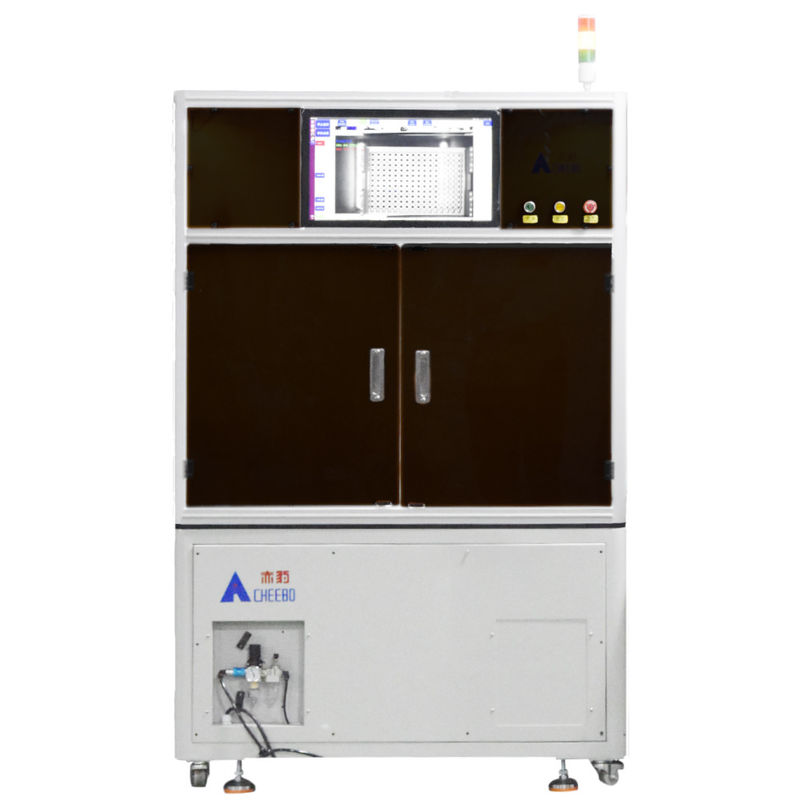

High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection

High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection

  • High Light

    High Precision CCD Tester

    ,

    CCD Tester for Polarity Detection

  • Detection Efficiency
    Based On Manual Speed
  • Transmission Mode
    Belt Transmission
  • Application Scenario
    Detection Of Positive And Negative Electrodes Of Battery Pack
  • Detection And Reminder Mode
    Sound And Light Alarm
  • Frame Material
    Aluminum Alloy
  • Power Supply
    220V
  • Place of Origin
    china
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCCD-2540
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection

High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection


Equipment introduction

● A CCD vision inspection device is a multi-purpose vision inspection system that uses machine vision technology to inspect CCD industrial cameras


● It is suitable for extreme personality testing of a variety of cells, saving labor costs and enabling highly repetitive work.


● CCD visual inspection can work stably for a long time, good reliability, high detection accuracy, with manual debugging function, can be fine-tuned for each inspection and monitoring area parameters saved, and can also be adjusted for the use of the overall offset function.


● With counting function, the number of OK/G can be counted


● With fixture automatic in place detection function


● Support multi-lock plate comparison, up to 100 sets of templates.


● The height-adjustable design allows it to be used in a variety of lighting environments.


Technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change




Device action flow description

Workflow of detection OK: the fixture is fed from the feed port of the belt line -- the belt stops running when it reaches the detection position --



waiting for detection -- detection OK -- Manually close the fixture cover -- click the button to close the cover -- the fixture flows out



Detection NG workflow: the fixture is fed from the belt line feed port -- arrives at the detection position and the belt stops running -- waits for



detection -- Detects NG -- determines the problem point according to the software diagram -- performs manual intervention -- clicks the manual



start detection button -- detects OK -- manually closes the fixture cover -- clicks the closing cover finish button -- the fixture flows out


Function Introduction


1.Comprehensive multi-angle fill light, HD photo head, industrial-grade camera with high detection accuracy, fast speed and high efficiency, zero error.
High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection 0

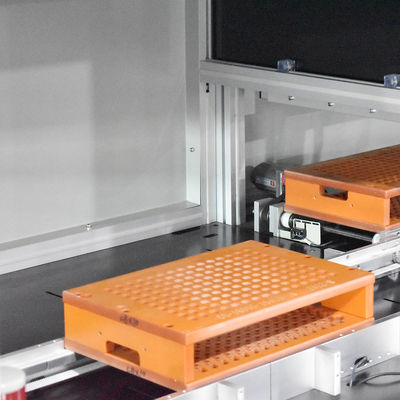

 2.  Large detection range
Support a variety of cell models, detection range: 250*400mm. Can be customized according to requirements.
High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection 1


 3. 19 "HD touch screen
Clear display, mouse and keyboard configuration, easy to operate, simple and fast, only industrial control system, can store all the test results, convenient verification of data.
High Precision CCD Tester Battery Pack Positive And Negative Polarity Detection 2


FAQ



Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
