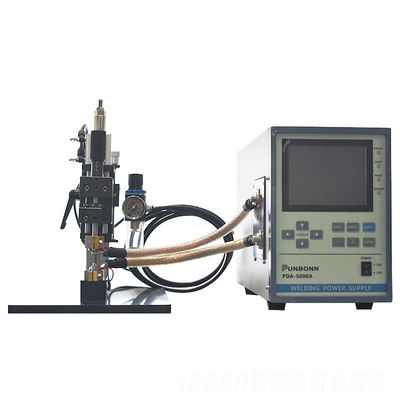

Cylindrical Welding Power Supply Lithium Battery Pack Spot Welding Machine

Cylindrical Welding Power Supply Lithium Battery Pack Spot Welding Machine

  • High Light

    MTB Welding Power Supply

    ,

    Pneumatic Welding Power Supply

    ,

    Cell Use Power Sources For Welding

  • Rated Duty Cycle
    20%
  • Max. Welding Thickness
    0.2
  • Voltage
    220v
  • Key Selling Points
    High-accuracy
  • Weight (KG)
    25 KG
  • Product Name
    Transistor Welding Power Supply
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    MTB-5000A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Cylindrical Welding Power Supply Lithium Battery Pack Spot Welding Machine

Welding Power Supply Cylindrical Lithium Battery Pack Spot Welding Machine


Equipment introduction



● The welding current of the power supply rises quickly and achieves high quality welding in a short time.


● There are three welding modes: constant voltage, constant current and constant voltage current


● The output current has various polarity switching functions, which can effectively eliminate the polarity effect in the welding process.


● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


● The welding current can be controlled efficiently and quickly by switching between transistors without the need for a transformer


● No need for welding transformer, small, lightweight, beautiful


● Built-in pre-check function, can be used to judge the work piece before welding power


● 5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored


● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.



Technical specification

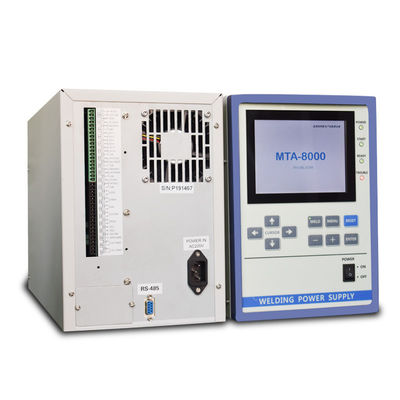

Model MTA-5000A MTA-8000A MTA-10000A MTB-5000A
Type Normal form Normal form Normal form Bipolar switching type
Maximum power consumption 330W 300W 550W 550W
Maximum welding current 3000A 6000A 10000A 5000A
Maximum voltage 30V(customizable)
Control mode 1. Constant current control 2. Constant voltage control 3. Current and voltage combination mode
Time setting Preloading time:0000-9999MS
Rise time:0.00-9.99MS
Welding 1 Welding 2 Set time:0.00-9.99MS
Cooling time:0.00-9.99MS
Slow down time:0.00-9.99MS
Holding time:0000-9999MS
Current setting range 100-999A 100-999A 100-999A 100-999A
0.25-3.0KA 0.50-6.0KA 1.00-9.99KA 0.50-5.00KA
Voltage setting range 0.00-9.99V
Current upper and lower limits set 000-999A 0.00-9.99KA
Voltage upper and lower limits set 0.00-9.99V
Monitoring display Power on 1.2(current and voltage RMS/voltage RMS),
Power 1.2(peak current/peak voltage),
Power 1.2(Power RMS/impedance RMS Current voltage Power positive reactance waveform specification label)
Input power supply Single-phase 200-240VAC50/60HZ



Operating interface
The waveform of welding current, voltage, power and resistance is dynamically detected, and the welding energy is displayed in real time.
