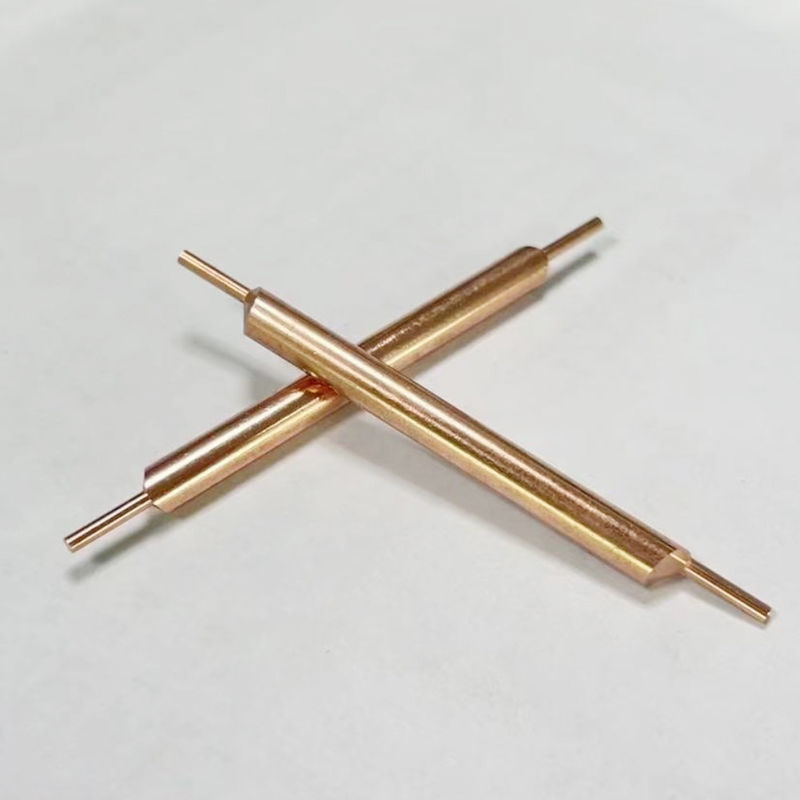

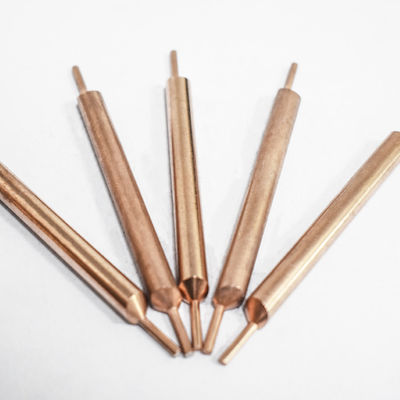

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod

  • High Light

    Double Eccentric Welding Needle

    ,

    Double Eccentric Spot Welding Copper Rod

    ,

    Alumina Copper Spot Welding Copper Rod

  • Product Name
    Spot Welding Needle
  • Origin
    Guangdong, China
  • Welding Needle Model
    Eccentric Core/same Core/straight Through
  • Needle Diameter
    Customizable
  • Material
    Aluminum Oxide Copper
  • Conductivity
    80%
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    C15760
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Paper box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 PCS per day

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod

Welding Needle Alumina copper spot welding needle double eccentric needle


Product introduction



● It is suitable for spot welding between nickel strip, nickel-infiltrated steel sheet, coated steel strip and other materials in battery production.
Spot welding connecting piece, core and lead sheet in the production of nickel gas battery, nickel pot battery, polymer battery, management battery and so on.


● Product name: alumina copper spot welding needle, contact welding needle.


● Materials: domestic materials, Taiwan materials, Japanese materials, American materials.


● Needle type: eccentric flat head, eccentric ball head, concentric ball head, straight ball head, straight bar, other customized.


● The welding needles produced by our factory are all made of alumina copper.


● Resistance welding material-nanometer alumina dispersion strengthened copper (alumina copper).


● Alumina copper-specially designed for spot welding of galvanized steel sheet, nickel plated plate, nickel strip, aluminum alloy, stainless steel, brass, etc.


● Alumina copper material has the advantages of softening and ablation resistance, long service life, high spot welding times, and the electrode life is more than 5 times that of ordinary chromium-zirconium copper, which reduces the time of shutting down and grinding the electrode.


● The battery spot welding machine adopts a welding needle made of alumina copper, which improves the efficiency of the automatic welding production line and does not bond the electrode when welding the coated metal, which provides a terminal solution for the welding of galvanized steel plate. It is an indispensable electrode material for welding galvanized steel plate, nickel strip, aluminum alloy, stainless steel, brass and so on.


● Alumina copper welding needle softening temperature up to 930C, is a relatively high alloy in copper, electrical conductivity up to 85% IACS high strength, good wear resistance.


● The electrical conductivity can reach 85% IACS, and the heat dissipation performance is between tungsten copper (220 W/m.k) and pure copper (390 W/m-k).


● The softening temperature is 930C, which is higher than that of copper alloy, but lower than that of tungsten copper (1000 ℃).



Product specification



Place of origin Guangdong, China Processing customization Yes
Operating temperature 25℃ Type Through/Eccentric/convex (optional)
Model number C15760 Length 100MM (customizable)
Melting point 930℃ Diameter 1.7MM (customizable)
Material Aluminum oxide copper Scope of application Metal welding




Product Parameter



Model Al2O3 content(wt%) HRB Electrical conductivity(%lACS) Strength of extension(MPa)
C15715 0.3 65 94 480
C15740 0.6 74 85 540
C15760 1.1 85 80 620



Function Introduction



1. Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod 0



2. Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod 1

3. High quality material

imported alumina copper material is more wear resistant to burning, longer service life

Double Eccentric Welding Needle Alumina Copper Spot Welding Copper Rod 2

Features
  1. Avoid sticky electrode phenomenon
  2. No yellowing of the welding area, beautiful welding joints
  3. Avoid the occurrence of false welding phenomenon
  4. Reduce the phenomenon of welding sparks
  5. Excellent electrical and thermal conductivity and good high temperature performance
  6. Passed the EU ROHS environmental certification standard
Product Parameter



Model Al2O3 content(wt%) HRB Electrical conductivity(%lACS) Strength of extension(MPa)
C15715 0.3 65 94 480
C15740 0.6 74 85 540
C15760 1.1 85 80 620
