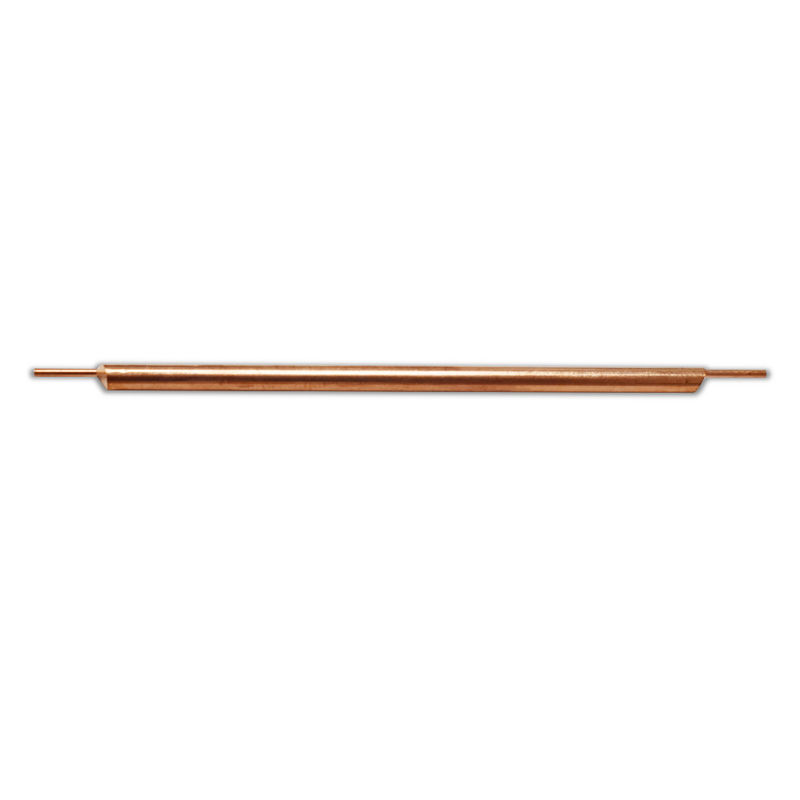

Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery

Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery

  • High Light

    Welding Needle C15760

    ,

    C15760

    ,

    Spot Welding Rods For Battery

  • Tensile Strength
    620 Mpa
  • Conductivity
    80% LACS
  • HRB
    85
  • Containing Al2O3
    1.1wt%
  • Material
    Aluminum Oxide Copper
  • Country Of Origin
    China / Taiwan China / Japan / USA
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    C15760
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 PCS per day

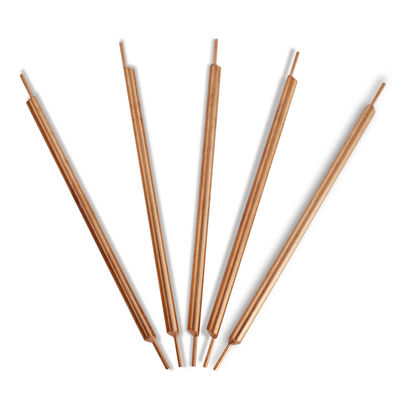

Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery

C15760 Welding Needle spot welder Aluminum oxide copper welding needle for battery


Product introduction



● It is suitable for spot welding between materials such as nickel strips, nickel-permeable steel sheets, and coated steel strips in the production of batteries. Spot welding of connecting pieces, cells and lead-in pieces in the production of batteries such as nickel gas batteries, nickel pot batteries, polymer batteries and rational batteries.


​●Product Name: Aluminum Oxide Copper Spot Welding Needles, Touch Welding Needles


​●Material: Domestic material, Taiwan material, Japanese material, American material.


​●Pin type: Off-center flat head, Off-center ball head, Same-center ball head, Straight baseball head, Straight bar, Other customization
All the welding needles produced by our factory are made of aluminum oxide copper.


● Resistance welding material--Nanometer alumina diffusion strengthened copper (aluminum oxide copper)


● Aluminum copper oxide----specifically designed for spot welding of galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, and so on.


●  Alumina copper material is resistant to softening and ablation, long service life, high number of spot welding, electrode life is more than 5 times that of ordinary chrome zirconium copper, reducing downtime for electrode repair and grinding.


● Battery spot welder adopts alumina copper material welding needle, which improves the efficiency of automatic welding production line, and does not bond the electrode when welding coated metal, which provides a terminal solution for welding galvanized steel, and is an indispensable electrode material for welding galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass and so on.


● Alumina copper welding needles softening temperature up to 930 ℃, is a relatively high alloy of copper, conductivity up to 85% IACS high strength, good wear resistance.


●Conductivity up to 85% IACS, heat dissipation performance between tungsten copper (220 W/m.k) and pure copper (390 W/m-k).


● Softening temperature up to 930 ℃, which is higher than that of copper alloys, but lower than tungsten copper (1000 ℃)



Product specification



Place of origin Guangdong, China Processing customization Yes
Operating temperature 25℃ Type Through/Eccentric/convex (optional)
Model number C15760 Length 100MM (customizable)
Melting point 930℃ Diameter 1.7MM (customizable)
Material Aluminum oxide copper Scope of application Metal welding



Function Introduction



 1.Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point



Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery 0

 2.Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements

Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery 1

 3. High quality material

imported alumina copper material is more wear resistant to burning, longer service life

Aluminum Oxide Copper Welding Needle C15760 Spot Welding Rods For Battery 2

Features
  1.   Avoid sticky electrode phenomenon
  2.   No yellowing of the welding area, beautiful welding joints
  3.   Avoid the occurrence of false welding phenomenon
  4.   Reduce the phenomenon of welding sparks
  5.   Excellent electrical and thermal conductivity and good high temperature performance
  6.   Passed the EU ROHS environmental certification standard
