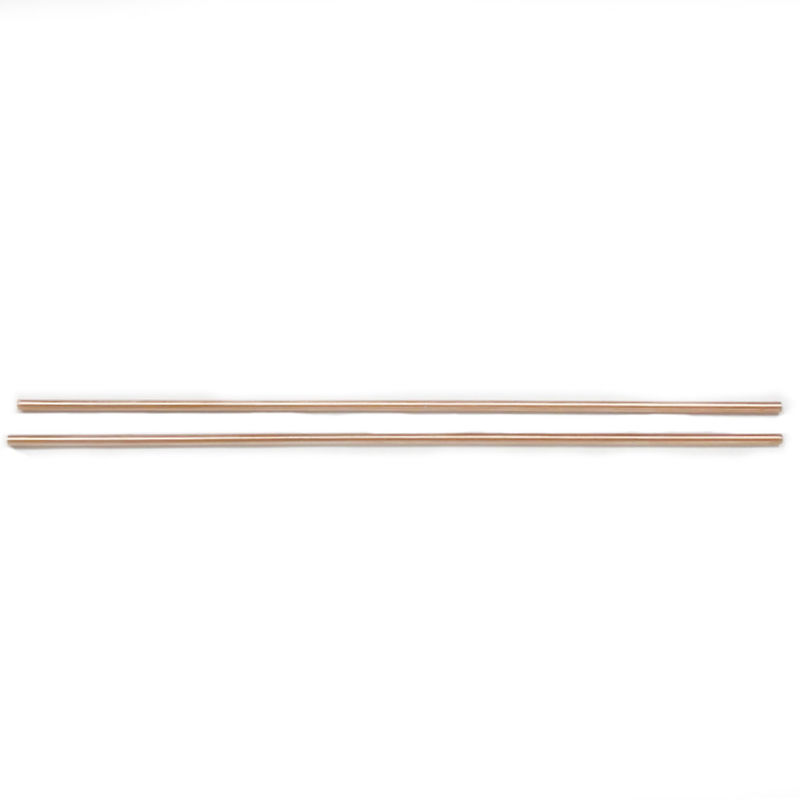

Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length

Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length

  • High Light

    Welding Needle 100mm

    ,

    Copper Welding Electrode 100mm

    ,

    Straight Through Aluminum Copper Brazing Rod

  • Use
    Welding
  • Product Name
    Spot Welding Needle
  • Product Model
    C15760
  • Length
    100MM(customizable)
  • Diameter
    1.7/1.8MM (customizable)
  • After-sales Service
    Provide Online After-sales Service
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO
  • Certification
    CE certification
  • Model Number
    C15760
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Foam and cardboard boxes
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 PCS per day

Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length

Straight-Through Alumina Brazing Needle 0.7MM*100MM Spot Welding Needle


Product introduction

● Product Name: Aluminum Oxide Copper Spot Welding Pin, Butt Welding Pin


● Material: domestic material, Taiwan material, Nissan material, American material


● Needle type: eccentric flat head, eccentric ball head, concentric ball head, straight baseball head, straight rod, other customized


● The welding pins produced by this manufacturer are all made of aluminum oxide copper


● Resistance welding material - nano-alumina dispersion strengthened copper (alumina copper)


● Expert in resistance welding materials Nano-alumina dispersion strengthened copper for short (alumina-copper) alumina-copper—specially designed for spot welding of galvanized steel plate, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, etc.


● Alumina copper material has the advantages of anti-softening and ablation resistance, long service life and high frequency of spot welding.


● The service life of the electrode is more than 5 times that of ordinary chrome-zirconium copper, which reduces the downtime and grinding time of the electrode.


● The softening temperature is as high as 930°C, which is relatively high among copper alloys, but lower than tungsten copper (1000°C)


● The conductivity of aluminum oxide brazing pin is as high as 85%IACS, and the heat dissipation performance is between tungsten copper (220 W/m-k) and pure copper (390 W/m-k).


● Alumina brazing pins are suitable for spot welding between nickel strips, nickel-impregnated steel strips, coated steel strips and other materials in battery production. Used in the production of nickel gas batteries, nickel pot batteries, polymer batteries, lithium batteries and other batteries, spot welding connectors, batteries, and extraction parts.


Product application



Aluminum oxide brazing needle is suitable for spot welding between materials such as nickel strip, nickel infiltrated steel plate, and coated steel



strip in battery production. Production of nickel gas batteries, nickel pot batteries, polymer batteries, lithium batteries, and other batteries, spot



welding connectors, batteries, and extraction parts.



Product Parameter



Model Al2O3 content(wt%) HRB Electrical conductivity(%lACS) Strength of extension(MPa)
C15715 0.3 65 94 480
C15740 0.6 74 85 540
C15760 1.1 85 80 620



Function Introduction

 1.  High quality material
Imported aluminum copper material is more wear-resistant and burn resistant, with a longer service life

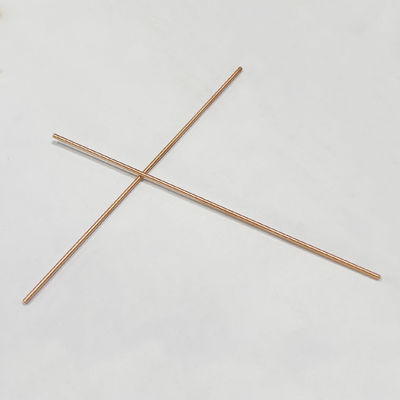

Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length 0
 2.  Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point
Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length 1
 3.  Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements
Straight Through Welding Needle Aluminum Copper Brazing Rod 100mm Length 2


Product specification



Place of origin Guangdong, China Processing customization Yes
Operating temperature 25℃ Type Through/Eccentric/convex (optional)
Model number C15760 Length 100MM (customizable)
Melting point 930℃ Diameter 1.7MM (customizable)
Material Aluminum oxide copper Scope of application Metal welding




Features
  1.  Avoid sticky electrode phenomenon
  2.  No yellowing of the welding area, beautiful welding joints
  3.  Avoid the occurrence of false welding phenomenon
  4.  Reduce the phenomenon of welding sparks
  5.  Excellent electrical and thermal conductivity and good high temperature performance
  6.  Passed the EU ROHS environmental certification standard
