Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type

Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type

  • High Light

    Copper Alumina C15760 Rod

    ,

    Copper Alumina Spot Welding Copper Rod

    ,

    Through Type C15760 Rod

  • Model
    C15760 Copper Alumina
  • Type
    Raised Spot Welding Needle
  • Scope Of Application
    Semi-automatic/Automatic
  • Length
    70(customizable)
  • Specifications
    6.0*70*3.0MM
  • Product Name
    Welding Needle
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    C15760
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Foam and cardboard boxes
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 PCS per day

Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type

Copper Alumina Welding Needle Lithium Battery Assembly Welding Accessories


Product introduction



● The welding pins produced by this manufacturer are all made of aluminum oxide copper


● Resistance welding material - nano-alumina dispersion strengthened copper (alumina copper)


● Expert in resistance welding materials Nano-alumina dispersion strengthened copper for short (alumina-copper) alumina-copper—specially designed for spot welding of galvanized steel plate, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, etc.


● Alumina copper material has the advantages of anti-softening and ablation resistance, long service life and high frequency of spot welding.


● The service life of the electrode is more than 5 times that of ordinary chrome-zirconium copper, which reduces the downtime and grinding time of the electrode.


● The battery spot welder uses aluminum oxide copper welding pins, which improves the efficiency of the automatic welding production line, and does not bond electrodes when welding plated metals. It provides a terminal solution for the welding of galvanized steel sheets. It is suitable for welding galvanized steel sheets, Indispensable electrode materials such as nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, etc.


● The softening temperature is as high as 930°C, which is relatively high among copper alloys, but lower than tungsten copper (1000°C)


●The conductivity of aluminum oxide brazing pin is as high as 85%IACS, and the heat dissipation performance is between tungsten copper (220 W/m-k) and pure copper (390 W/m-k).


●Alumina copper welding pins are suitable for spot welding between nickel strips, nickel-impregnated steel strips, and coated steel strips in battery production. Used in the production of nickel gas batteries, nickel pot batteries, polymer batteries, lithium batteries and other batteries, spot welding connectors, batteries, and extraction parts.



Product specification



Place of origin Guangdong, China Processing customization Yes
Operating temperature 25℃ Type Through/Eccentric/convex (optional)
Model number C15760 Length 100MM (customizable)
Melting point 930℃ Diameter 1.7MM (customizable)
Material Aluminum oxide copper Scope of application Metal welding



Product Parameter



Model Al2O3 content(wt%) HRB Electrical conductivity(%lACS) Strength of extension(MPa)
C15715 0.3 65 94 480
C15740 0.6 74 85 540
C15760 1.1 85 80 620



Function Introduction

 1.  Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements

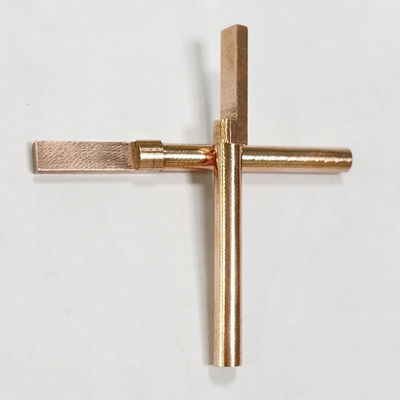

Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type 0

 2.  High quality material
imported alumina copper material is more wear resistant to burning, longer service life

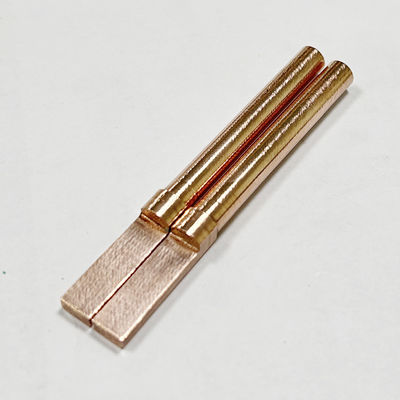

Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type 1

 3.  Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point
Copper Alumina Spot Welding Copper Rod , C15760 Rod Through Type 2



Features
  1.  Avoid sticky electrode phenomenon
  2.  No yellowing of the welding area, beautiful welding joints
  3.  Avoid the occurrence of false welding phenomenon
  4.  Reduce the phenomenon of welding sparks
  5.  Excellent electrical and thermal conductivity and good high temperature performance
  6.  Passed the EU ROHS environmental certification standard
