18650 Portable Battery Spot Welder 7W High Power  Resistance Type

18650 Portable Battery Spot Welder 7W High Power Resistance Type

  • High Light

    Portable Battery Spot Welder 12000W

    ,

    Resistance Type Portable Battery Spot Welder

    ,

    All In One Lithium Ion Welder

  • Boundary Dimension
    64cm*20cm*36cm
  • Welding Material
    Metal
  • Power Types
    Multiple-pulse
  • Product Name
    Manufacturer Price Portable Spot Welding Machine
  • Fundamentals Of Welding
    Resistance Welding
  • Welding Pressure
    5KG/F
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Custom wooden frame packing
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

18650 Portable Battery Spot Welder 7W High Power Resistance Type

18650 Portable Battery Spot Welder 7W High Power Resistance Type

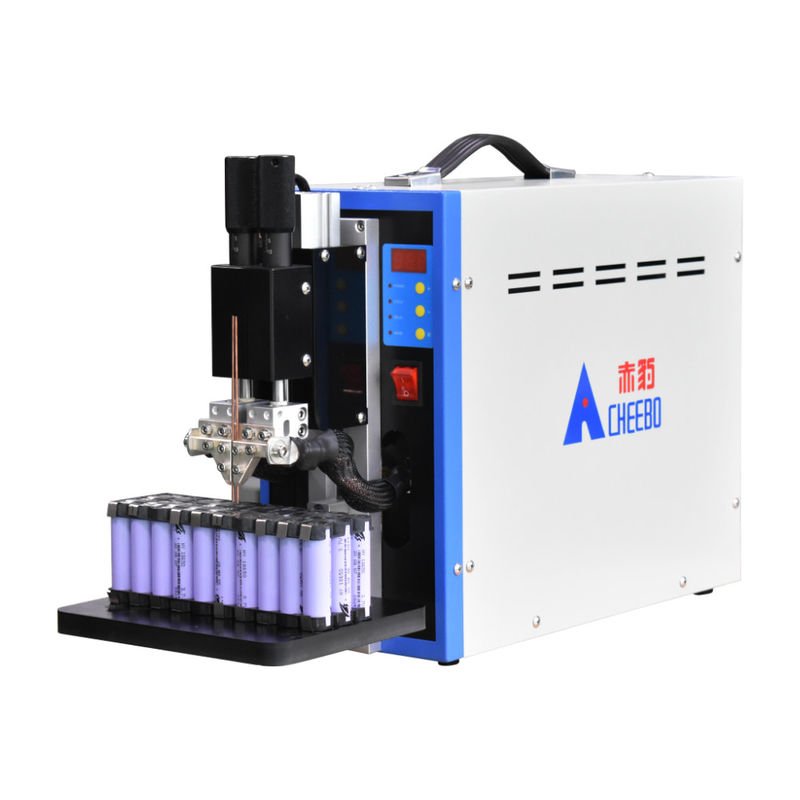

Equipment introduction



●Portable lithium battery spot welding machine adopts an integrated design, which saves space and is convenient to carry.


●The welding machine can pre store multiple programs, which can be freely changed and called.


●Controlled by a microcomputer microcontroller, it can achieve single pulse, multi pulse, and double pulse welding methods.


●The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no false welding, low ignition, and excellent surface quality.


● Independent welding needle, spring buffering design, and precise adjustment of welding pressure.


● Imported high-quality aluminum oxide copper electrodes, pure copper welding cables, pure copper electrode clamps and other accessories make the machine durable and durable.


● The welding head platform can be adjusted up and down, and can be welded to various specifications of batteries.


● The battery pack micro welding machine adopts a pneumatic precision welding head independently developed by Qibo, with precise pressure regulation control.


● Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and runs stably.


● All parameters are set digitally, and parameter adjustments are stable, intuitive, and accurate.


● The vertical spot welding method is spot welding, and the pressure depth is manually controlled.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction

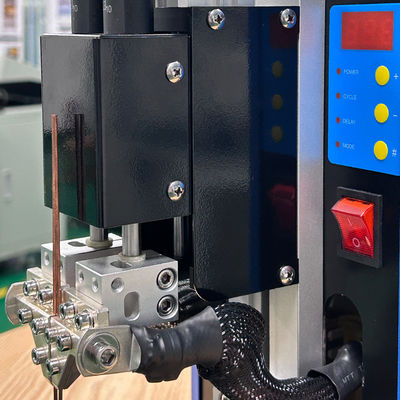

 1. Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.

18650 Portable Battery Spot Welder 7W High Power  Resistance Type 0



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.

18650 Portable Battery Spot Welder 7W High Power  Resistance Type 1



 3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.

18650 Portable Battery Spot Welder 7W High Power  Resistance Type 2



Debugging project

1.  Welding pressure: 1-10 kg


2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters


3.  Air pressure regulation


4.  Adjustment of needle extension length


5.  Adjust the position under the table top


6.  Adjust the spacing between the left and right pins



  1. Welding case



18650 Portable Battery Spot Welder 7W High Power  Resistance Type 3      18650 Portable Battery Spot Welder 7W High Power  Resistance Type 4       18650 Portable Battery Spot Welder 7W High Power  Resistance Type 5



FAQ



Q: How do I install and run the machine?



A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
