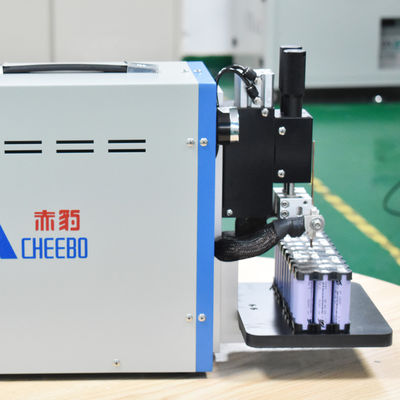

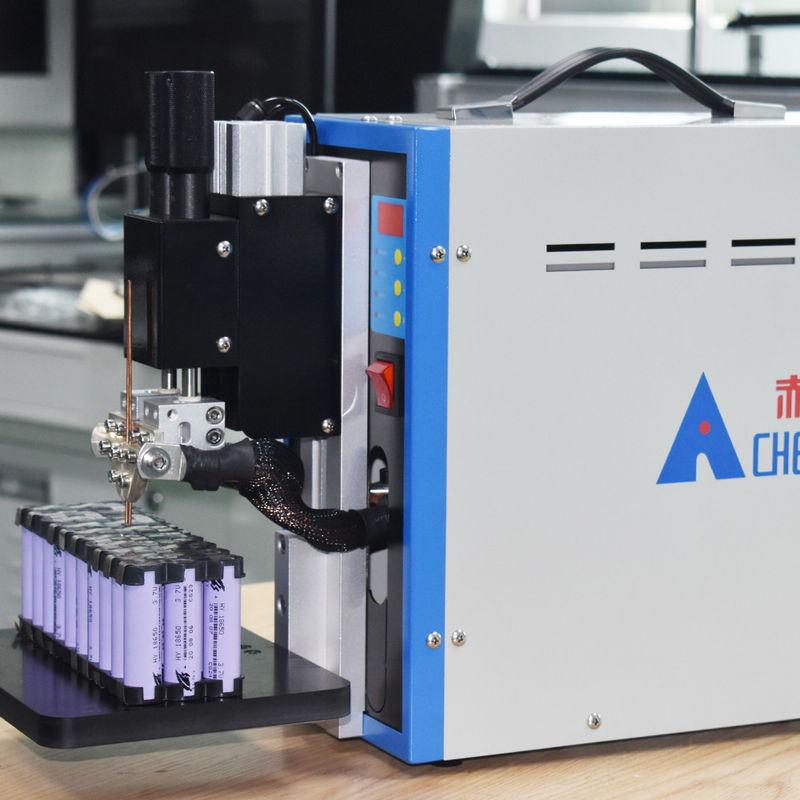

Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder

Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder

  • High Light

    Mini Welding Power Supply

    ,

    Lithium Ion Welding Power Supply

    ,

    Lithium Ion Professional Battery Spot Welder

  • Product Name
    Portable Lithium Battery Spot Welder
  • Product Selling Point
    Integrated
  • Appearance Material
    Aluminum Alloy
  • Air Pressure
    200P/M
  • Max. Welding Thickness
    0.2mm
  • Bench Height
    Adjustable
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Custom wooden frame packing
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    20 Set/Sets per Week

Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder

Mini Portable Battery Spot Welder Spot Welding Machine For Lithium Ion Battery


Equipment introduction



● Adopting microcontroller control, it can realize single pulse, multi-pulse and double-pulse welding.


● Using the proprietary output energy optimization algorithm, the output voltage and output current are converted reasonably, with strong welding capacity, firm welding joints, no miswelding, low ignition and excellent surface quality.


● Independent welding needle, spring cushion design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, which can weld various specifications of batteries.


● Using CHEEBO's self-developed pneumatic precision welding head, with precise pressure adjustment control.


● The digital LED display makes the adjustment of equipment parameters more intuitive and easy to learn and operate.


● Micro-computer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.


● The welding machine can store several programs in advance, which can be changed and called freely.


● Imported high-quality aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp and other accessories, make the machine durable.


● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are digitally set, parameter adjustment is stable, intuitive and accurate.


● Compact structure, small volume, high power, large industrial circuit design, welding process is safe and reliable.


● This product is widely popular AC pulse spot welder, using microcomputer single-chip computer control, stable and reliable performance.

Industrial-grade welding equipment. Used for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery pack welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum products welding.





Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1.  Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.



Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 0



 2.  Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.

Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 1



 3.  High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.

Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 2



  1. Welding case



Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 3 Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 4 Lithium Ion Mini Welding Power Supply Professional Battery Spot Welder 5
