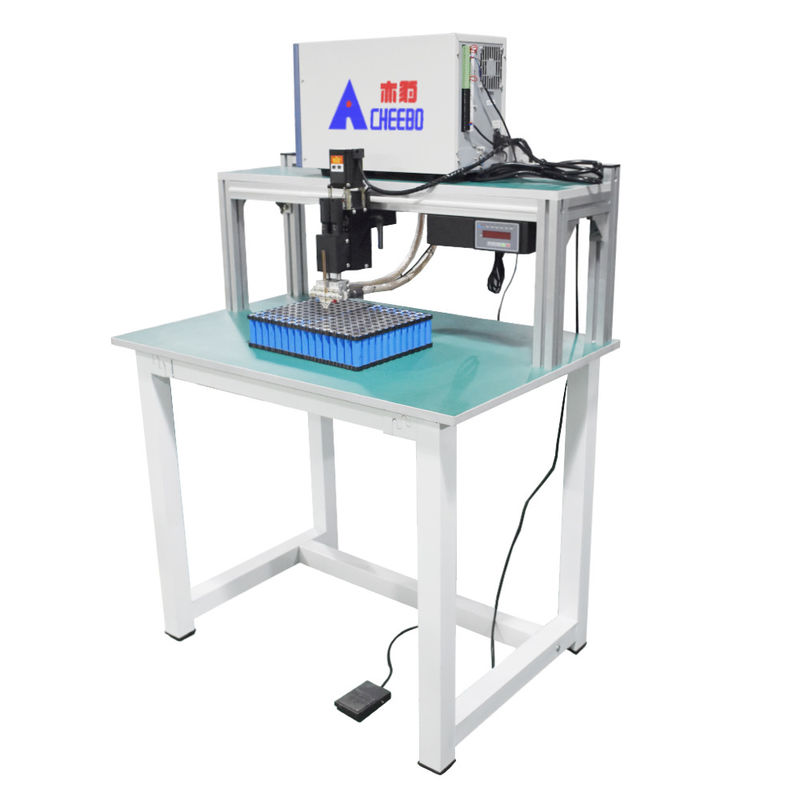

Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries

Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries

  • High Light

    Spot Welder For Lithium Ion Batteries

    ,

    Electric 18650 Spot Welder

    ,

    18650 Spot Welder Gantry Frame Type

  • Core Components
    Welding Power Source, Mesa Table Frame, Welding Head, CU, Elastic Cable Paper, Foot Switch
  • Condition
    New
  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Key Selling Points
    Easy To Operate
  • Power (kW)
    350W-450W
  • After-sales Service Provided
    Online Service Provided
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries

Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries



Application scope of the product



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, Nickel–metal hydride battery pack welding, hardware piece



welding,electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products



welding,aluminum products welding. Suitable for product maintenance and sampling work.



Equipment introduction

◆ The independently developed precision welding head has precise pressure regulation and control. Servo welding head, pure electric, no need to connect the cylinder to drive the welding head. Welding noise is low, speed is fast, and pressure is stable. Built in precision bearings for precise pressure control without damaging the battery.

◆ The independently developed electric control box: precisely controls the high-speed operation of the motor. Adjustable movement mode: single point/semi-automatic/automatic.

◆ The Welding power supply can adjust the welding mode according to the demand: there are three welding modes: constant voltage, constant current and combination of constant voltage and current.

◆ This type of welding adopts transistor Welding power supply, which does not need welding transformer inside, and is small in size and light in weight.

◆ The Welding power supply is controlled by switch mode, which can realize small and efficient welding with high output.

◆ The welding current of the power supply increases rapidly, achieving high-quality welding in a short period of time.

◆ Energy saving and environmental protection, stable and efficient, and low power consumption.

◆ Micro computer technology control, control voltage grid connection, automatic tracking and compensation.

◆ Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM.

◆ High quality tempered glass is used to protect the desktop from wear and tear during the welding process.

◆ Vertical spot welding method is used for welding, and the pressure depth is manually controlled.

◆ The welding machine can pre store multiple programs, which can be freely changed and called.

◆ Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.

Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries 0



 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. It can weld various types of cells with different heights.



Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries 1

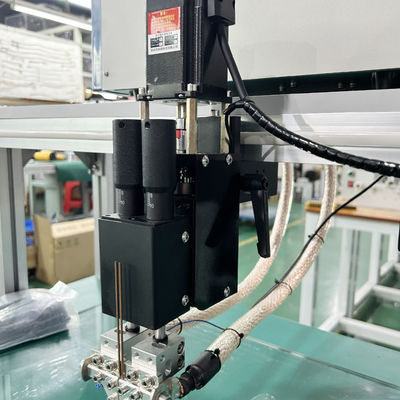

 3. Electric precision welding head

Motor driven welding, no need for external solenoid valves and cylinders, low noise. Vertical is a welded structure with dual linear guide rail design, and the left and right pressures can be adjusted separately. Built in pressure sensor for precise control and stable pressure applications.



Lithium Battery Spot Welder Electric Spot Welder For Lithium Ion Batteries 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
