Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder

  • High Light

    Single Side Lithium Battery Welding Machine

    ,

    Automatic Lithium Battery Welding Machine

    ,

    Single Side Cell Spot Welding Machine

  • Welding Method
    Convex Spot Welding/tip Spot Welding
  • Welding Power Supply
    Transistor
  • Uses
    Battery Pack Welding
  • Cable Material
    Pure Copper
  • Cable Length
    0.5M
  • Welding Mode
    Single Point/connected Point/automatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

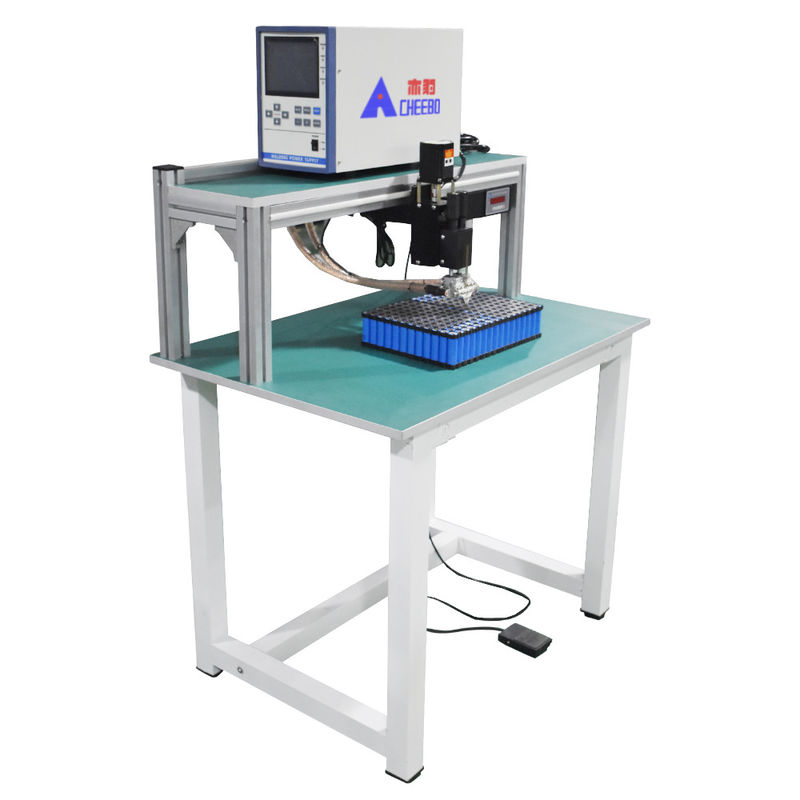

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder


Equipment introduction

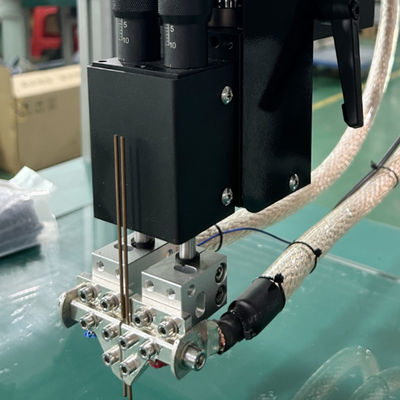

◆ Self-developed precision welding head, with accurate pressure regulation and control. Servo welding head, pure electric no need to connect the cylinder to drive the welding head. Low noise, fast speed and stable pressure during welding. Built-in precision bearing, precise control of pressure, no damage to the battery.


◆ Self-developed electric control box: precise control of motor high-speed operation. Adjustable movement mode: single point/semi-automatic/automatic.


◆ The welding power supply can adjust the welding mode according to the demand: there are three welding modes: constant voltage, constant current and constant voltage current combination.


◆ This type of welding adopts transistor welding power supply, does not need welding transformer inside, small size, light weight.


◆ Welding power supply control using switch mode, can achieve small and efficient welding, high output.


◆ The welding current of the power supply rises fast, and high quality welding is achieved in a short time.


◆ Energy saving and environmental protection, stable and efficient, low power consumption.


◆ Microcomputer technology control, control voltage grid, automatic tracking compensation.


◆ Applicable battery specifications: minimum no less than 50MM, maximum no more than 130MM.


◆ High quality tempered glass is used to protect the desktop from abrasion during welding.


◆ Use vertical spot welding method for spot welding, manual control of the depth of pressure.


◆ The welder can prestore multiple programs, which can be changed and called at will.


◆ Compact structure, small size, large power, large industrial circuit design, safe and reliable welding process.



Function Introduction



 1. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 0



 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 1



 3. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.

Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 2

Device action flow description

Power on - Check if the WELED switch is turned on - Turn on the motion control system power - Welding head action - Find the origin position -



Place the product that needs to be welded on the desktop - Step on the foot pedal - Welding head pressing down - Welding head completed -



Welding head returning to its original position

Matters needing attention

  •  Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM
  •  For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible
  •  Clean the end face of the spot welding needle regularly
  1. Welding case



Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 3 Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 4 Industrial Grade Electrodynamic Type Manual Lithium Battery Spot Welder 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
