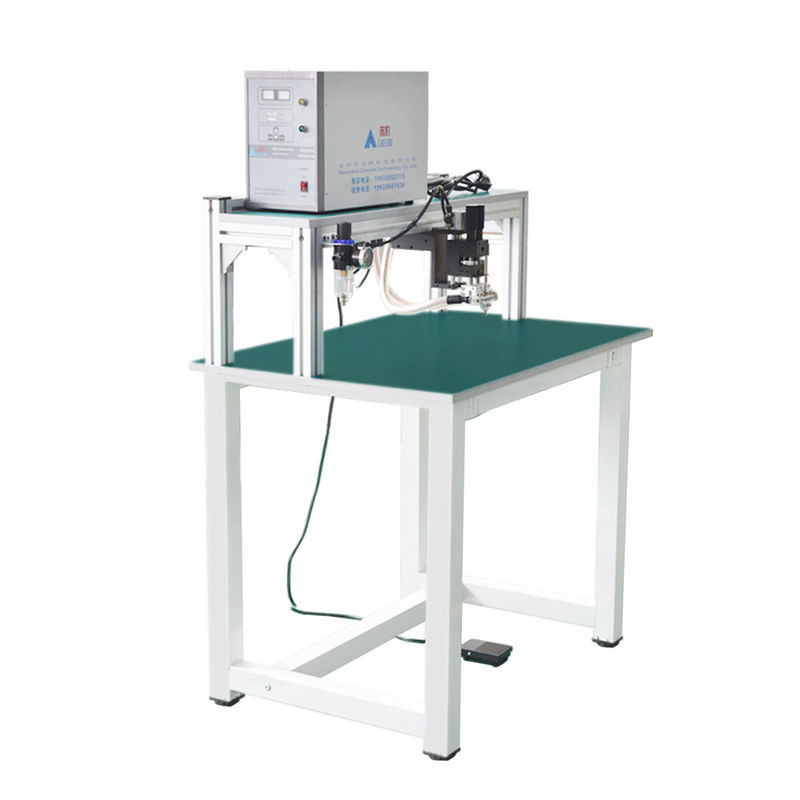

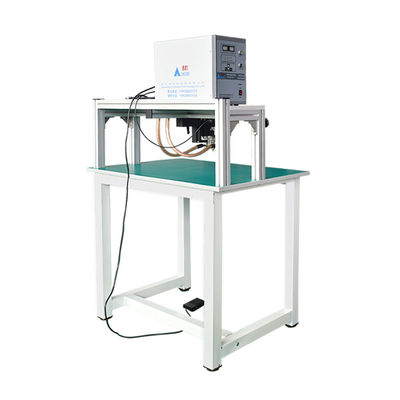

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head

  • High Light

    Pneumatic Lithium Ion Spot Welding Machine

    ,

    Bench Type Lithium Spot Welding Machine

    ,

    Bench Type Cell Spot Welding Machine

  • Welding Power Source
    Multi-pulse Welding
  • Welding Head Type
    Pneumatic
  • Product Name
    Multi-pulse Pneumatic Lithium Battery Spot Welding Machine
  • Welding Head Height
    50-130MM
  • Welding Stroke
    10
  • Power Supply
    220V50/60HZ
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head


Product application



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery pack welding, hardware accessories



welding, electronic and electrical accessories welding, wire terminal welding, stainless steel accessories welding, metal jewelry welding, copper



products welding, aluminum products welding, etc.



Equipment introduction

● Digital LED display, the parameter adjustment of the equipment is more intuitive, easy to learn and operate.


● Self-developed precision welding head, precise pressure adjustment control.


● Proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm solder joint, no virtual welding, small cremation, good surface quality.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● APPLICABLE BATTERY SPECIFICATIONS: MINIMUM NOT LESS THAN 50MM, MAXIMUM NOT MORE THAN 130MM. (More than can be used to increase height)


● High-quality tempered glass is used to protect the table top from wear during the welding process.


● Vertical spot welding is adopted to manually control the depth of pressure.


● The welding machine can store multiple programs in advance, which can be changed and called at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.



Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 0



 2. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 1



 3. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 2



  1. Welding case



Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 3 Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 4 Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 5



Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return



Apparent dimension

Pneumatic 18650 Lithium Battery Spot Welder Precision Welding Head 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
