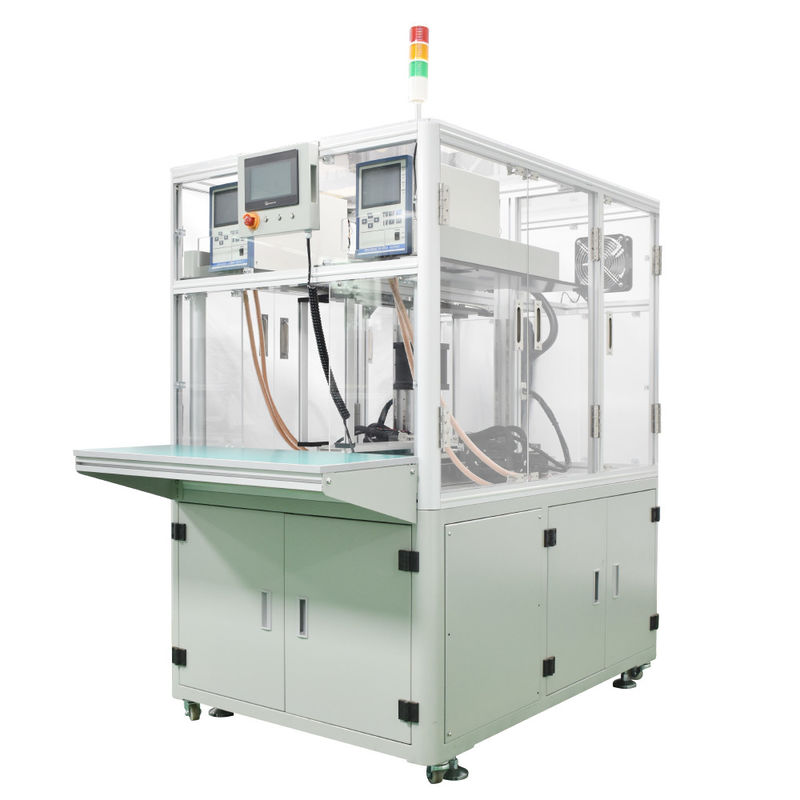

Equipment introduction

● It is suitable for spot welding of modular lithium battery packs such as NB/electric tools/Garden tool/high-power/energy storage power station batteries/electric motorcycles/electric vehicles, and can be used together with the production line of lithium battery packs.


● This lithium battery spot welding machine is suitable for automatic double-sided spot welding of cylindrical battery combinations such as 1865021700 and 2665032700.


● Independently develop various automated intelligent systems with equipment intelligent operation functions, such as energy switching function, production process function, welding needle compensation function, and manual debugging function.


Energy switching function, which can store 4 sets of energy modes and automatically switch different welding energies for different materials.


● Production counting function, set production quantity, and complete automatic shutdown of output.


Welding needle compensation function, setting the number of welding needles, and performing welding needle maintenance after reaching the automatic reminder quantity.


● The manual debugging function allows for fine-tuning and saving of the spot welding parameters of each point on the welding head (easy to modify the coordinates of the welding points), and can also be adjusted using the one click calibration function.


● Featuring modular design, low noise, stable energy output, and efficient welding.


● High definition LCD touch screen, convenient parameter adjustment, real-time display of device working status. Manual programming, CAD drawing, importing spot welding paths, fast programming. Easy to learn, can be set by ordinary workers.


● The designed structure (forward outward or forward outward) can be connected to the back-end production line, and can be removed from the other side after welding to improve production efficiency.


● Sand blasting welding, virtual welding, automatic alarm of welding equipment, manual adjustment of welding error area, automatic repair welding, and single point repair welding can also be set.


● Adopting Taiwan's silver screw guide rail, it has high accuracy, low noise, smooth sliding, and durability.


Aluminum alloy framework, imported acrylic shield plate, beautiful and generous sense of science and technology, intuitive operation, improve production Factor of safety.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding


Debugging project

  1. Y axis, Z axis, A axis coordinate parameters
  2. Spot welding power supply parameter setting
  3. Spot welding pressure, stroke adjustment
  4. Spot welding times set
  5. Needle service life setting
  6. Spot welding spacing setting
  7. Spot welding mode setting

Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 0





 2. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 1



 3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 2

Application case

 1. Energy storage battery pack       2. Electric bicycle battery pack           3. Power tool battery pack



High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 3       High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 4       High Performance 18650 Lithium Battery Spot Welder 5-Axis Precision Control 5
