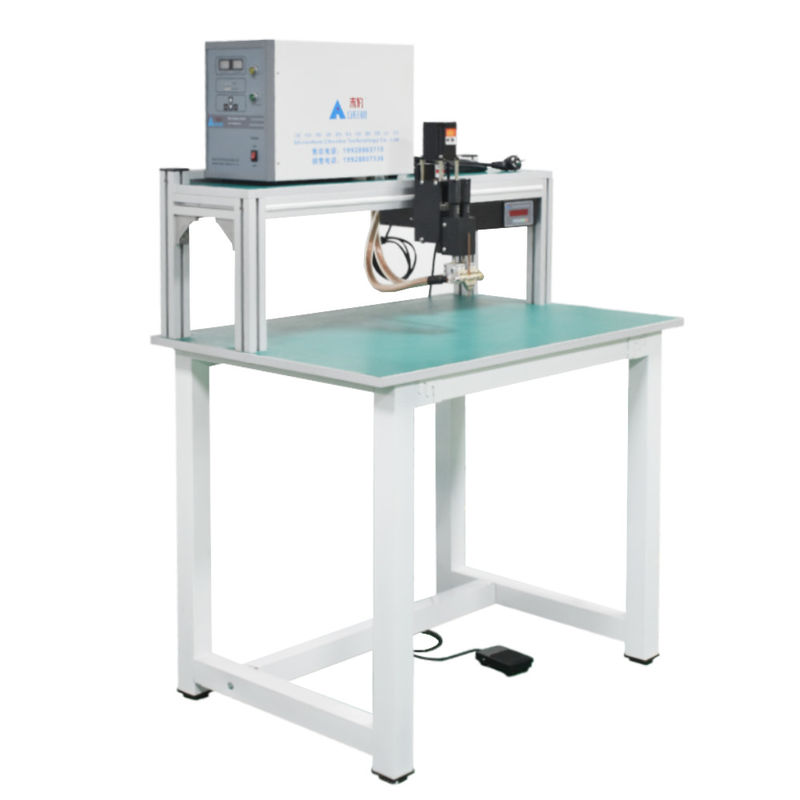

High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power

High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power

  • High Light

    High Precision Lithium Battery Spot Welder

    ,

    Multi Pulse Lithium Battery Spot Welder

    ,

    High Precision Nickel Spot Welder

  • Power Supply Type
    Multi-pulse
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Second Pulse
    Level 0-3 (adjustable)
  • First Energy
    0-999 (adjustable)
  • Second Energy
    0-999 (adjustable)
  • Welding Thickness
    0.04-0.2MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power

High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power


Equipment introduction
● The lithium battery spot welding machine adopts a pure electric cylinder free design, without the need to connect air sources, with low noise and stable welding pressure output.

● Motor driven, precise control of the control box, adjustable in three modes: single point, semi-automatic, and automatic.

● The multi-pulse lithium battery spot welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and current, high output power, strong welding ability, clear and firm solder joints, and small ignition.

● Independently developed precision welding heads with precise pressure regulation and control.

● Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.

● Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM.

● The welding platform adopts high-quality tempered glass to protect the tabletop from wear and tear during the welding process.

● Vertical spot welding with manual control of pressure depth.

● Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.

● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.

Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pressure regulating device

The welding pressure can be adjusted to the appropriate parameters according to the welding thickness and material to ensure precise and high quality welding.

High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power 0



 2. Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power 1

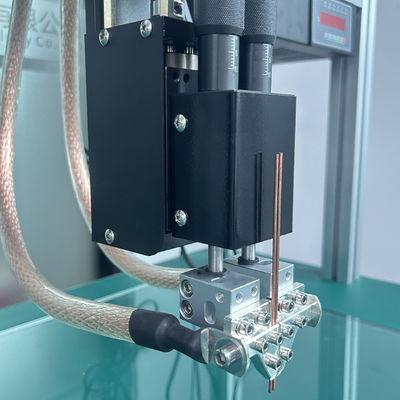

 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



High Precision Lithium Battery Spot Welder Nickel Plate Welding Multi Pulse Power 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Service process



Pre-sale:


1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery


After sale:


1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
