Rail Model Lithium Battery Spot Welder Large Battery Pack Welding

Rail Model Lithium Battery Spot Welder Large Battery Pack Welding

  • High Light

    Lithium Battery Spot Welder 21700

    ,

    Spot Welder For Battery Packs 21700

    ,

    Aluminum Alloy Lithium Battery Spot Welder

  • X Axis Travel
    750MM (Manual Slide)
  • Y Axis Travel
    350MM (Manual Slide)
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Working Mode
    Pure Electricity
  • Packaging
    Control Box
  • Guide Material
    Aluminum Alloy
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Rail Model Lithium Battery Spot Welder Large Battery Pack Welding

Rail Model Lithium Battery Spot Welder Large Battery Pack Welding


Application scope of the product

Power lithium ion battery module welding, 3C lithium ion battery pack welding, nickel metal hydride battery pack welding, hardware welding,



 electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum



products welding. At the same time, it is also suitable for product maintenance proofing and other work.

Equipment introduction

​​● Pure electric no cylinder, low noise, fast speed, stable pressure.


​​● Independently developed precision welding head, the pressure can be accurately adjusted and controlled according to the thickness and material of nickel sheet to achieve precision welding.


​​● Transistor welding power supply, current rise fast, short time to achieve high quality welding.


​​● There are three welding modes: constant voltage, constant current and constant voltage current.


​​● Compact structure, small size, large power, no need to weld transformers.


​​● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


​​● 5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.


​​● Double guide rail thickening, the chassis is stable and firm, not easy to deformation.


​​● Welding The welding head can be moved up and down, and the welding head can be moved according to the size of the battery pack for easy welding.


​​● The table guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.


​​● The spot welding process does not need to push the battery pack, saving energy and fast, the platform can carry 60KG, especially suitable for large battery pack welding.


​​● The guide rail is convenient to move, saving time and labor, greatly shortening welding time and improving manual welding speed.


​​● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Driving mode Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

  • Welding precautions

1. Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2. For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3. Clean the end face of the spot welding needle regularly.





Function Introduction

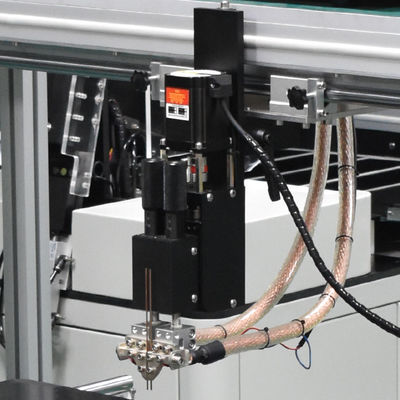

 1. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.

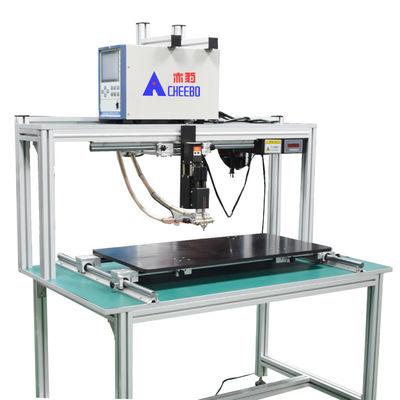

Rail Model Lithium Battery Spot Welder Large Battery Pack Welding 0



 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Rail Model Lithium Battery Spot Welder Large Battery Pack Welding 1



 3. Guide rail design

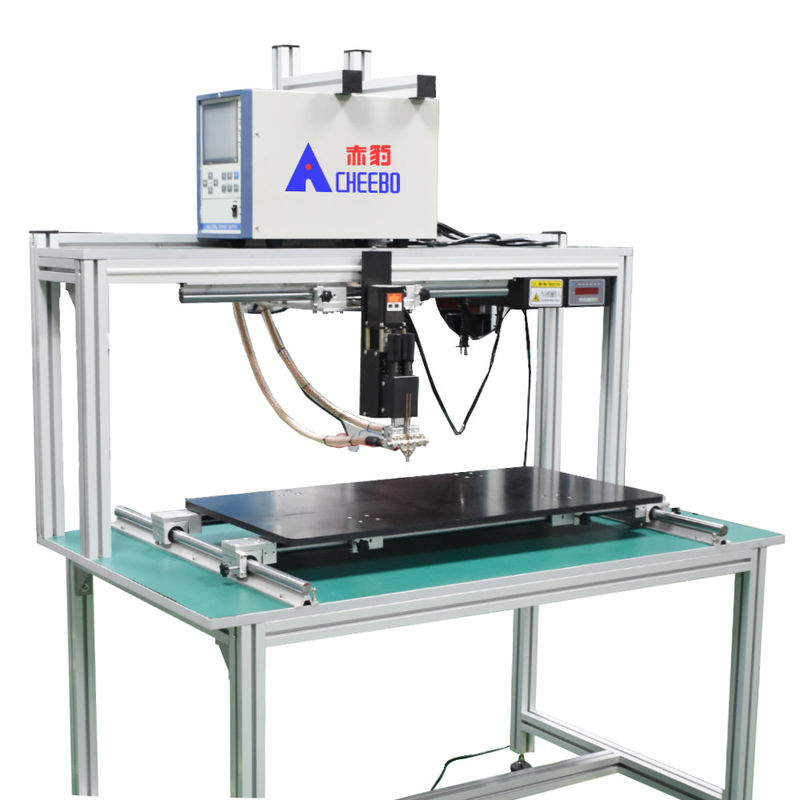

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.
