Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head

Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head

  • High Light

    Battery Pack Testing Machine 5000A

    ,

    Fast Speed Table Top Spot Welder

    ,

    Battery Pack Testing Machine

  • Welding Pressure
    Electric Resistance Welding
  • Welding Mode
    1-5KG
  • Input Voltage
    220V
  • Voltage
    30V(max)
  • Product Name
    Lithium Battery Spot Welder
  • Welding Current
    3000/6000/10000A
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

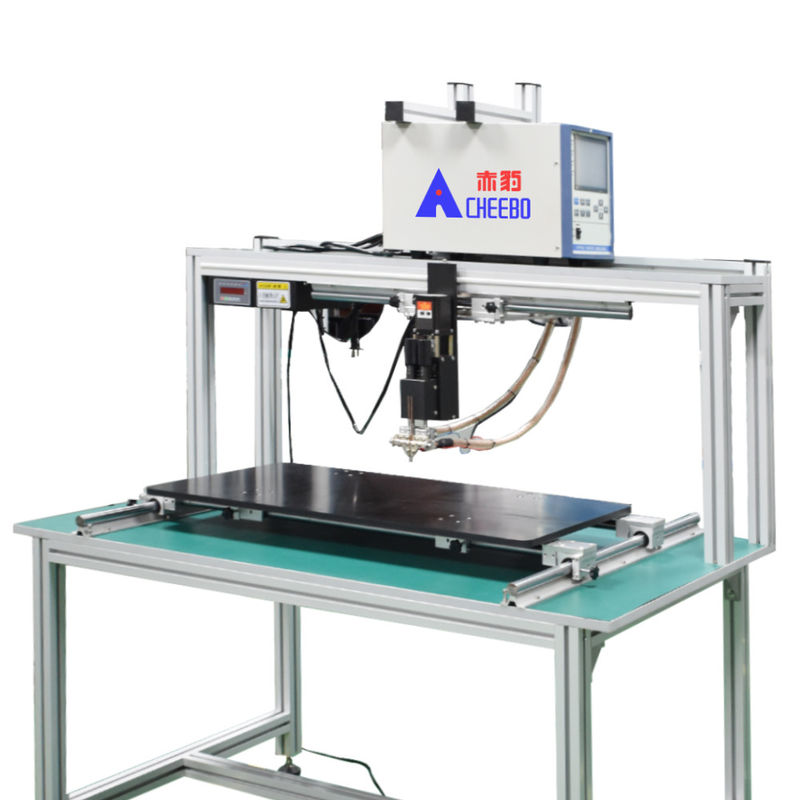

Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head

Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head


Equipment introduction

​​● Pure electric without cylinder, low noise, fast speed, and stable pressure.


​​● Transistor Welding power supply, with fast current rise, can realize high-quality welding in a short time.


​​● There are three welding modes: constant voltage, constant current, and constant voltage current.


​​● Compact structure, small size, high power, no need for welding transformers.


​​● Controlled by microcomputer technology, real-time monitoring of welding voltage, current, and resistance waveforms.


​​● 5.7 inch high-definition LED display, device parameter adjustment is convenient and intuitive, and multiple programs can be pre stored.


​​● Double guide rails are thickened and thickened, ensuring a stable and firm chassis that is not easily deformed.


​​● The welding head can move left and right up and down, and can be moved according to the size of the battery pack, making it convenient for welding.


​​● Independently developed precision welding machine head, the pressure can be accurately adjusted and controlled according to the thickness and material of the nickel sheet, achieving precision welding.

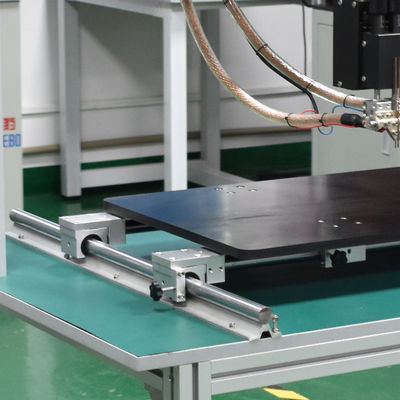

​​● The desktop guide rail can be pushed and pulled back and forth, with a stroke of 750 * 350mm.


​​● The spot welding process does not require pushing the battery pack, which is labor-saving and fast. The platform can carry a load of 60KG, making it particularly suitable for welding large battery packs.


​​● The guide rail is easy to move, time-saving and labor-saving, greatly reducing welding time and improving manual welding speed.


Energy saving and environmental protection, stable and efficient, and low equipment power consumption.

Application scope of the product

Power lithium ion battery module welding, 3C lithium ion battery pack welding, nickel metal hydride battery pack welding, hardware welding,



electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum



products welding. At the same time, it is also suitable for product maintenance proofing and other work.

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Driving mode Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding


Function Introduction

 1. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head 0



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head 1



 3. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.



Mobile Platform Battery Tab Spot Welding Machine Electric Precision Welding Head 2

  • Welding precautions

1. Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2. For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3. Clean the end face of the spot welding needle regularly.

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.





Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
