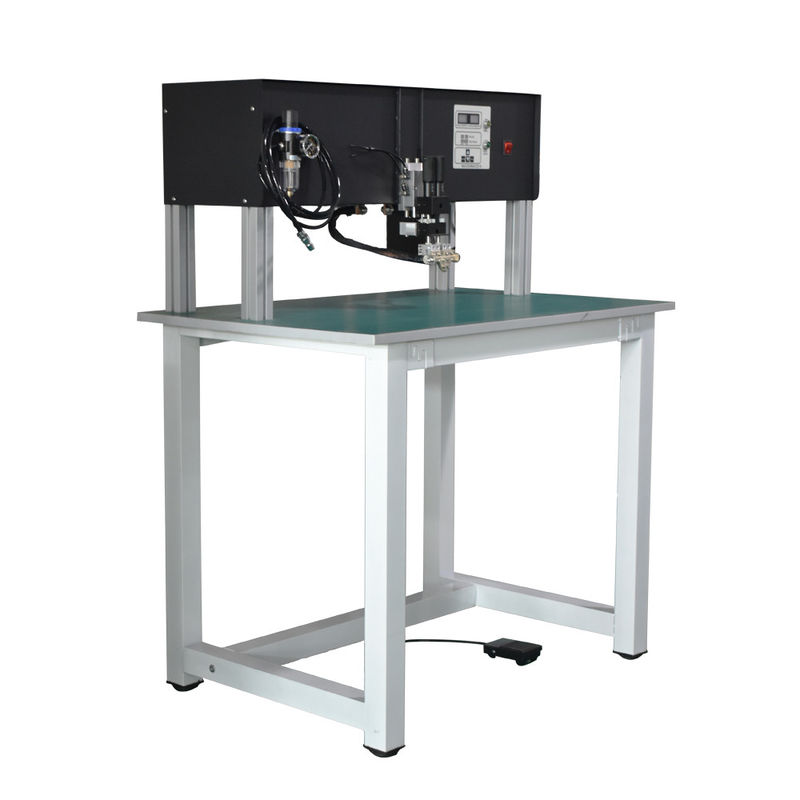

Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery

Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery

  • High Light

    Spot Welding Machine For 18650 Battery

    ,

    Pneumatic Welding Machine For 18650 Battery

    ,

    Multi Pulse Manual Spot Welding Machine

  • Mpa0.4-0.6
    0.4 To 0.6
  • Pressure Adjustment
    1-5KGF (adjustable)
  • Spot Welding Method
    Convex Points/sharp Points
  • Equipment Power
    7KW
  • Product Name
    Pneumatic Lithium Battery Spot Welder
  • Weight (KG)
    65 KG
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-23
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery

Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery


Product application scope



Power lithium-ion battery pack welding, 3C lithium-ion battery pack welding, Ni-MH battery pack welding, hardware parts welding, electronic and



electrical parts welding, terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products



welding, etc. It is also suitable for product maintenance, sampling and other welding work.



Equipment introduction



● Double section multi-pulse design, improve energy output waveform, improve welding capacity.


● Microcomputer technology control, monitoring power grid voltage, automatic compensation.


● Digital LED display, device parameter adjustment is convenient and intuitive, the device can pre-store multiple programs.


● Stable equipment performance, mature technology, cost-effective, well received by users.


● High quality tempered glass is used to protect the desktop from wear during welding.


● Vertical spot welding method for welding, manual control of the depth of pressure.


● Compact structure, small volume, large power, large industrial circuit design, long welding safe and reliable.



Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop --



Step on the pedal -- push down the welding head -- spot welding completed -- return the welding head



Technical specification



Welding thickness 0.02-0.15MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 2800A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 7KW Equipment size 600*900*1150MM
Driving mode Pneumatic Machine Weight 48KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 0 Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 1 Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 2



Function Introduction



 1. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 3



 2. Foot on switch drives welding

Metal iron shell, not easy to damage, durable. Silver alloy electric shock, stable and durable. Humanized foot step non-slip design.



Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 4

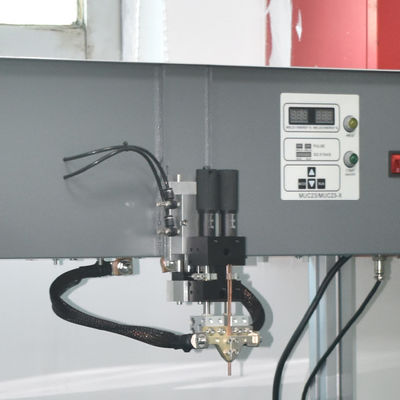

 3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Multi Pulse Power Manual Lithium Spot Welding Machine Pneumatic For 18650 Battery 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
