Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type

Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type

  • High Light

    Single Sided Lithium Battery Spot Welder

    ,

    Rotary Head Lithium Battery Spot Welder

    ,

    Single Sided Automatic Spot Welder

  • Warning Light Type
    Tri-color Light
  • Welding Stroke
    170MM * 100MM (single Station)
  • Size
    60*90*142mm
  • Welding Current
    0-10000A
  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Welding Pressure
    1-5Kgf
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1410
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type

Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type​


Equipment introduction

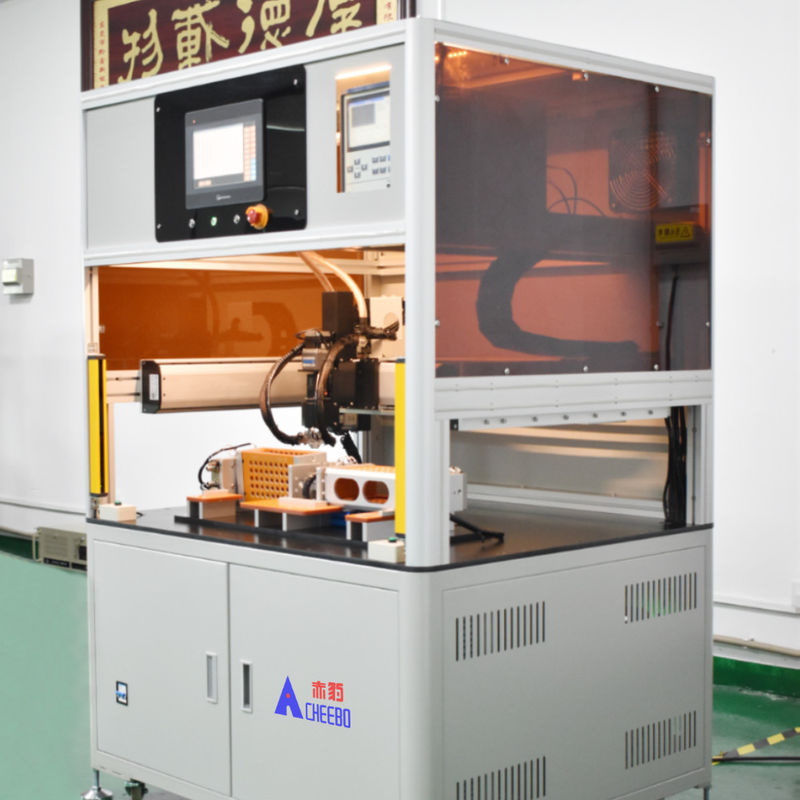

● This lithium battery spot welding machine is a multi-axis control machine developed by modern automation experts, combining precision transmission and automatic walking mechanism of the motor control mechanism, effectively control the real-time processing of automated production equipment.


● The equipment is suitable for 18650, 21700, 26650, 32700 and other cylindrical unit combination automatic single side spot welding.


● CBMO4-1710 lithium battery welding single-sided machine adopts automatic flipping welding fixture design. After the A-side welding is completed, it can be automatically turned over to B-side welding without manually turning the fixture.


● CHEEBO battery welding head automatic spot welding machine can be rotated 135°, suitable for welding irregular shape nickel plate, effectively avoid the phenomenon of sticking needles in the welding process.


● Grating protection devices are installed on both sides to ensure the safe operation of the equipment.


● Blast welding and virtual welding equipment will automatically alarm, automatic zone repair welding and single spot repair welding will be manually adjusted.


● Taiwan silver guide rail module, high precision, low noise, smooth sliding, durable.


● Panasonic servo, fast welding speed, high precision.


● HD LCD touch screen, human-machine interface, easy to operate.


● Independently develop a variety of automated intelligent systems to facilitate equipment operation and help improve production efficiency.


● With energy switching function, production counting function, welding needle compensation function, manual debugging function, etc., can assist the intelligent operation of equipment.


● Manual programming, CAD drawing, importing spot welding path, and quickly executing programming. Easy to learn, fully qualified as a production line worker.


● Aluminum alloy structure, electrostatic powder spraying process, anti-scratch, anti-rust, anti-static.


● Imported acrylic protective plate, beautiful, strong sense of science and technology, intuitive operation, improve the production safety factor.

Technical specification

Production efficiency 3800PCS/H Welding head rotation Angle 1/CFM
Welding thickness 0.02-0.3MM Relocation accuracy 0.1mm
Simplex welding stroke 170MM*100MM Platform load 35KG
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Welding head rotation Angle 0°-135° Welding pressure 600*900*1420MM
XY shaft welding stroke 170MM*100MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding


Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type 0

 2. Precision servo welding head

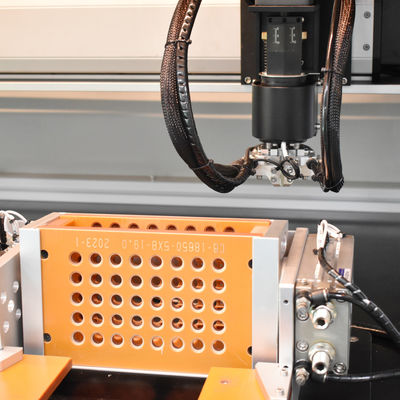

The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.



Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type 1



 3. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type 2
