Battery Pack Assembly Line

Semi-Automatic Cylindrical Battery Pack Assembly Line 3000PCS/H

All Category

Battery Accessories

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

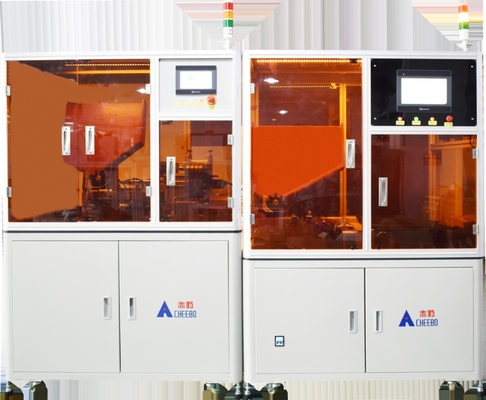

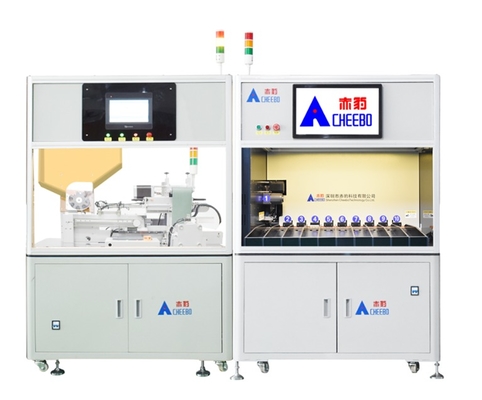

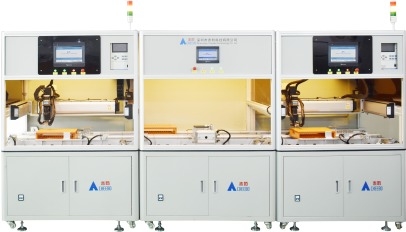

Semi-Automatic Cylindrical Battery Pack Assembly Line 3000PCS/H

Brand Name:	CHEEBO
Model Number:	CBZDL-SS-5046
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Compatible Cell Models:

18650/21700/32700/26650/32650

Dimensions:

11600*1000*1730MM (L*W*H)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H (Automatic Part)

CCD Detection Field:

400*300MM (Max)

CCD Lens Pixel:

2000W

Spot Welder Stroke:

500*360MM (Max)

Cell Sorting Channels:

Nickel Sheet Thickness:

0.02-0.3MM

Number Of Stickers:

4PCS (Depends On Cell Type)

User Interface:

Touch Screen

Manpower Required:

3-5 People

Line Color:

Ivory White (Customizable)

Welding Thickness:

0.02-0.3MM

Highlight:

semi-automatic battery pack assembly line

cylindrical battery pack assembly machine

3000PCS/H battery pack production line

Product Description

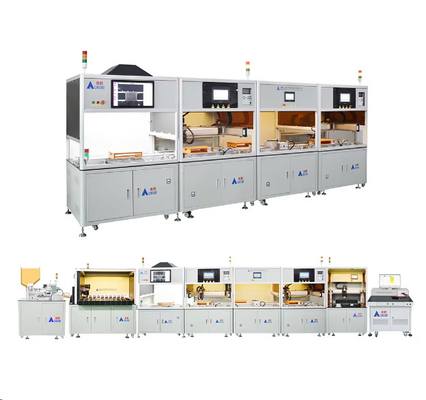

Semi Automatic Battery Pack Assembly Line for Cylindrical Battery Pack Assembly Factory

Product Attributes

Attribute	Value
After-sales service	Provided
Key selling point	Simple and quick

Product Introduction

Technical Specifications

Compatible cell models: 18650/21700/32700/26650/32650, etc Cylindrical cell
Dimensions: 11600*1000*1730MM (L*W*H)
Line color: Ivory white (Customizable)
Total power: 220V 50/60Hz 6KW
Use air pressure: 0.5-0.8Mpa
Production efficiency: 3000PCS/H (Automatic part)
CCD detection field: 400*300MM (Max)
CCD lens pixel: 2000W
Spot welder welding stroke: 500*360MM (Max)
Cell sorting channels: 6+1
Nickel sheet welding thickness: 0.02-0.3MM
Number of stickers (Each time): 4PCS (Depends on cell type)
User interface: Touch screen
Manpower required: 3-5 people

Applications

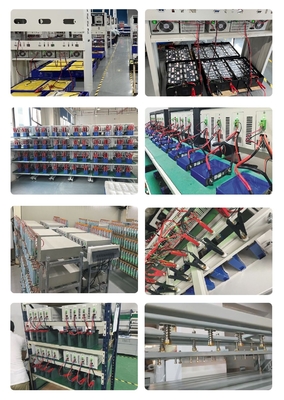

Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)

Company Profile

Frequently Asked Questions

Q: I don't know which one is right for me?

A: Please tell us the following information:
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack?
3) How many battery packs should be produced per day

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: What can we offer you?

A: Equipment and resources for lithium battery pack assembly.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: When the machine can't work well, what should I do?

A: 1. The engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have one-year warranty. If there is any problems of machine parts under "normal use", new machine parts will be sent to you but your side should pay the shipping cost.
3. Operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.

Q: If we do not know to use the machine, can you teach us?

A: Yes, we will, if you come to China, we will offer you free training until you can use machine freely. During installation, we will have our professional engineer to your country to train your stuff to use it.
