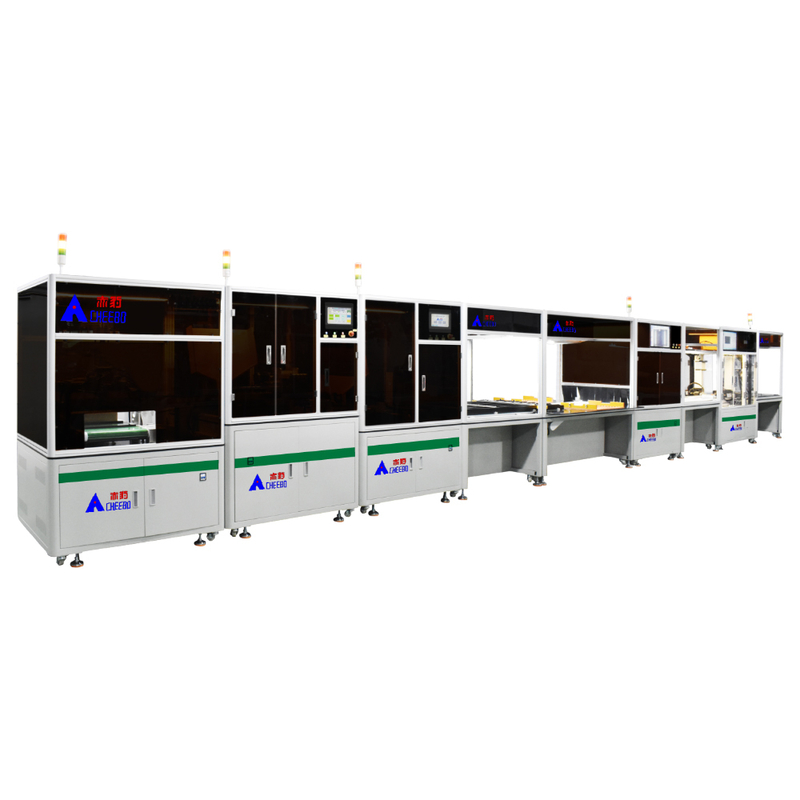

Automatic Lithium Battery Assembly Line for 18650 21700 Cells

Brand Name:	CHEEBO
Model Number:	CBZDL-SS-5046
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Compatible Cell Models:

18650/21700/32700/26650/32650, Etc Cylindrical Cell

Dimensions:

11600*1000*1730MM (L*W*H)

Line Color:

Ivory White (Customizable)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H (Automatic Part)

CCD Detection Field:

400*300MM (Max)

CCD Lens Pixel:

2000W

Spot Welder Stroke:

500*360MM (Max)

Cell Sorting Channels:

Nickel Sheet Thickness:

0.02-0.3MM

Number Of Stickers:

4PCS (Depends On Cell Type)

User Interface:

Touch Screen

Manpower Required:

3-5 People

Highlight:

18650 lithium battery assembly line

21700 cell automatic production line

lithium battery pack assembly machine

Product Description

Lithium Battery Assembly Equipment Automatic Production Line

Key Features

Simple and quick operation
Comprehensive after-sales service
On-site service available

Product Overview

Technical Specifications

Compatible cell models	18650/21700/32700/26650/32650, etc Cylindrical cell
Dimensions	1160010001730MM (LWH)
Line color	Ivory white (Customizable)
Total power	220V 50/60Hz 6KW
Use air pressure	0.5-0.8Mpa
Production efficiency	3000PCS/H (Automatic part)
CCD detection field	400*300MM (Max)
CCD lens pixel	2000W
Spot welder welding stroke	500*360MM (Max)
Cell sorting channels	6+1
Nickel sheet welding thickness	0.02-0.3MM
Number of stickers (Each time)	4PCS (Depends on cell type)
User interface	Touch screen
Manpower required	3-5 people

Applications

Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)

Frequently Asked Questions

Q: I don't know which one is right for me?

A: Please tell us the following information:

What type of cell do you want to assemble? What is its model number?
Capacity and volume of battery pack?
How many battery packs should be produced per day

Q: How do I install and run the machine?

A: Our technicians install the machine before shipment. For installation of some widgets, we provide detailed training videos and user manuals. 95% of customers can teach themselves.

Q: What can we offer you?

A: Equipment and resources for lithium battery pack assembly.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it's an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests are performed on each unit. After all tests are passed, our QC tests the welding performance.

Q: When the machine can't work well, what should I do?

Our engineer is available 24/7 to diagnose problems and provide solutions
All machines have one-year warranty. For problems under normal use, we'll send replacement parts (customer pays shipping)
Operation CD and manual are provided with machine for easy operation

Q: If we don't know how to use the machine, can you teach us?

A: Yes, we provide free training in China until you can operate the machine freely. For international customers, we send a professional engineer during installation to train your staff.
