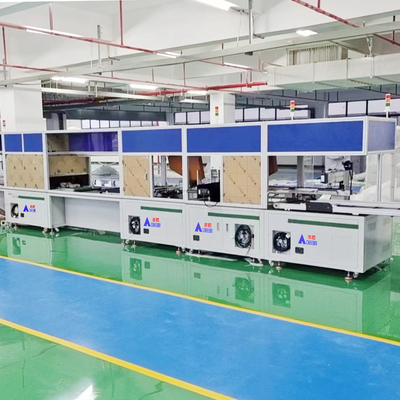

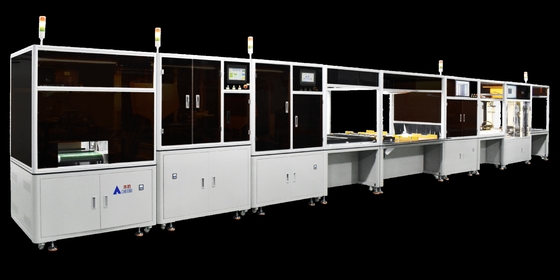

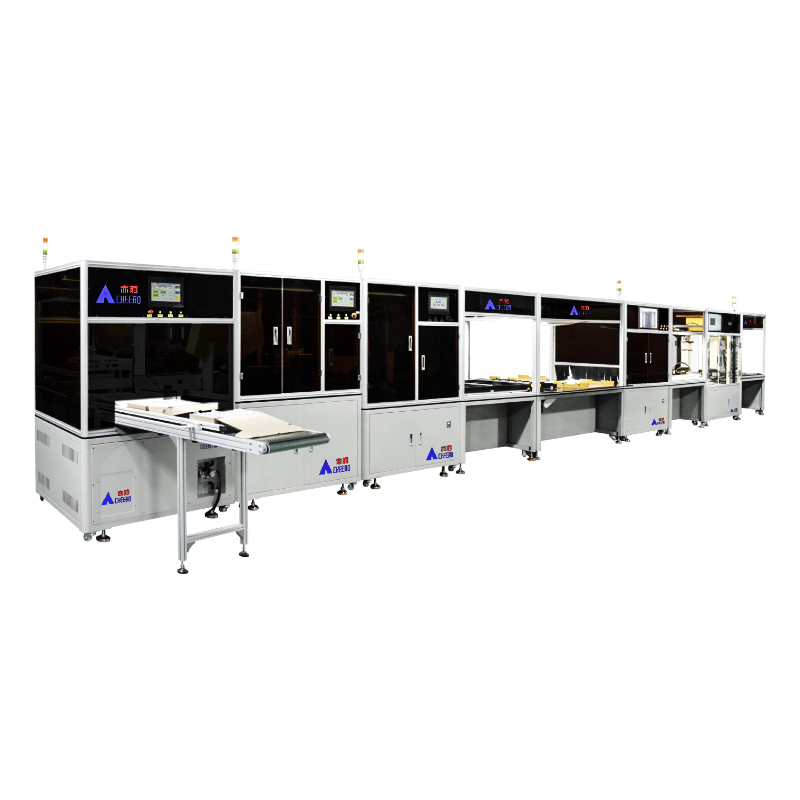

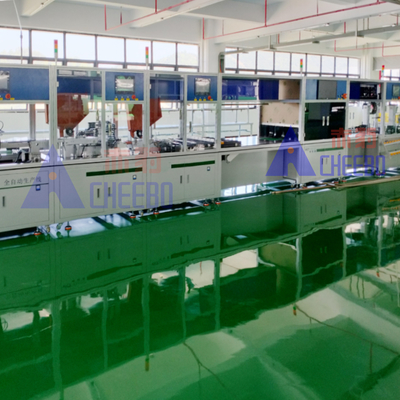

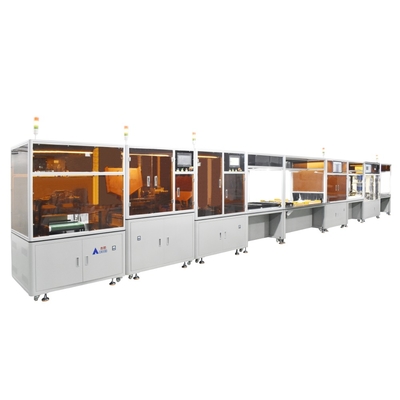

Cylindrical Lithium Battery Pack Assembly Line 3000PCS/H Automatic

Brand Name:	CHEEBO
Model Number:	CBZDL-SS-5046
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Compatible Cell Models:

18650/21700/32700/26650/32650

Dimensions:

11600*1000*1730MM (L*W*H)

Line Color:

Ivory White (Customizable)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H (Automatic Part)

CCD Detection Field:

400*300MM (Max)

CCD Lens Pixel:

2000W

Spot Welder Stroke:

500*360MM (Max)

Cell Sorting Channels:

Nickel Sheet Thickness:

0.02-0.3MM

Number Of Stickers:

4PCS (Depends On Cell Type)

User Interface:

Touch Screen

Manpower Required:

3-5 People

Highlight:

automatic cylindrical lithium battery pack assembly line

3000PCS/H battery pack assembly machine

lithium battery pack production line with warranty

Product Description

Cylindrical Cell Group Cylinder Lithium Battery Group Automatic Production Line

Key Features

Simple and quick operation
Comprehensive after-sales service

Product Introduction

Compatible cell models	18650/21700/32700/26650/32650, etc Cylindrical cell
Dimensions	1160010001730MM (LWH)
Line color	Ivory white (Customizable)
Total power	220V 50/60Hz 6KW
Use air pressure	0.5-0.8Mpa
Production efficiency	3000PCS/H (Automatic part)
CCD detection field	400*300MM (Max)
CCD lens pixel	2000W
Spot welder welding stroke	500*360MM (Max)
Cell sorting channels	6+1
Nickel sheet welding thickness	0.02-0.3MM
Number of stickers (Each time)	4PCS (Depends on cell type)
User interface	Touch screen
Manpower required	3-5 people

Applications

Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)

Frequently Asked Questions

Q: I don't know which one is right for me?

A: Please tell us the following information:
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack?
3) How many battery packs should be produced per day

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: What can we offer you?

A: Equipment and resources for lithium battery pack assembly.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: When the machine can't work well, what should I do?

A: 1. The engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have one-year warranty. If there is any problems of machine parts under "normal use", new machine parts will be sent to you but your side should pay the shipping cost.
3. Operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.

Q: If we do not know to use the machine, can you teach us?

A: Yes, we will, if you come to China, we will offer you free training until you can use machine freely. During installation, we will have our professional engineer to your country to train your stuff to use it.
