Automatic Cylindrical Battery Pack Assembly Line for 18650 21700 Cells

Brand Name:	CHEEBO
Model Number:	CBZDL-SS-5046
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Compatible Cell Models:

18650/21700/32700/26650/32650, Etc Cylindrical Cell

Dimensions:

11600*1000*1730MM (L*W*H)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H(Automatic Part)

CCD Detection Field:

400*300MM（Max）

CCD Lens Pixel:

2000W

Spot Welder Stroke:

500*360MM（Max）

Cell Sorting Channels:

Nickel Sheet Thickness:

0.02-0.3MM

Number Of Stickers:

4PCS（Depends On Cell Type）

User Interface:

Touch Screen

Manpower Required:

3-5 People

Line Color:

Ivory White（Customizable）

Welding Thickness:

0.02-0.3MM

Highlight:

18650 battery pack assembly line

21700 cylindrical battery production line

automatic battery pack assembly machine

Product Description

Lithium-ion Battery Pack Equipment Automatic Cylinder Battery Pack Assembly Line

Key Features

High-efficiency automatic assembly line for cylindrical battery packs
Compatible with multiple cell models (18650/21700/32700/26650/32650)
High production capacity of 3000PCS/H (automatic part)
Precision CCD detection system with 2000W pixel lens
User-friendly touch screen interface
After-sales service provided

Technical Specifications

Attribute	Value
Dimensions	1160010001730MM (LWH)
Line color	Ivory white (Customizable)
Total power	220V 50/60Hz 6KW
Use air pressure	0.5-0.8Mpa
CCD detection field	400*300MM (Max)
Spot welder welding stroke	500*360MM (Max)
Nickel sheet welding thickness	0.02-0.3MM
Manpower required	3-5 people

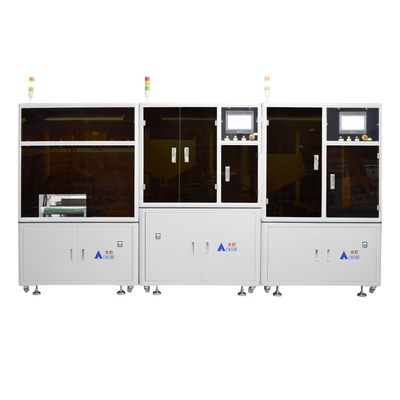

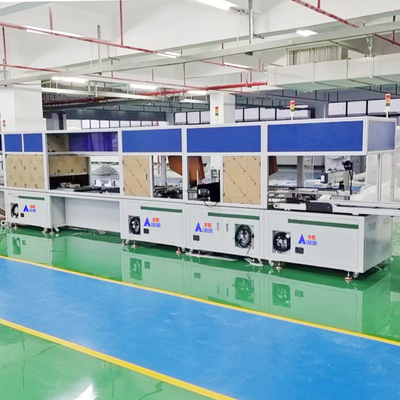

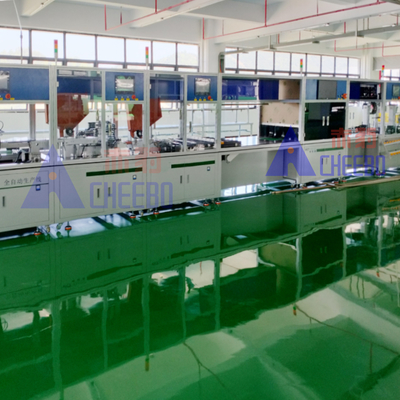

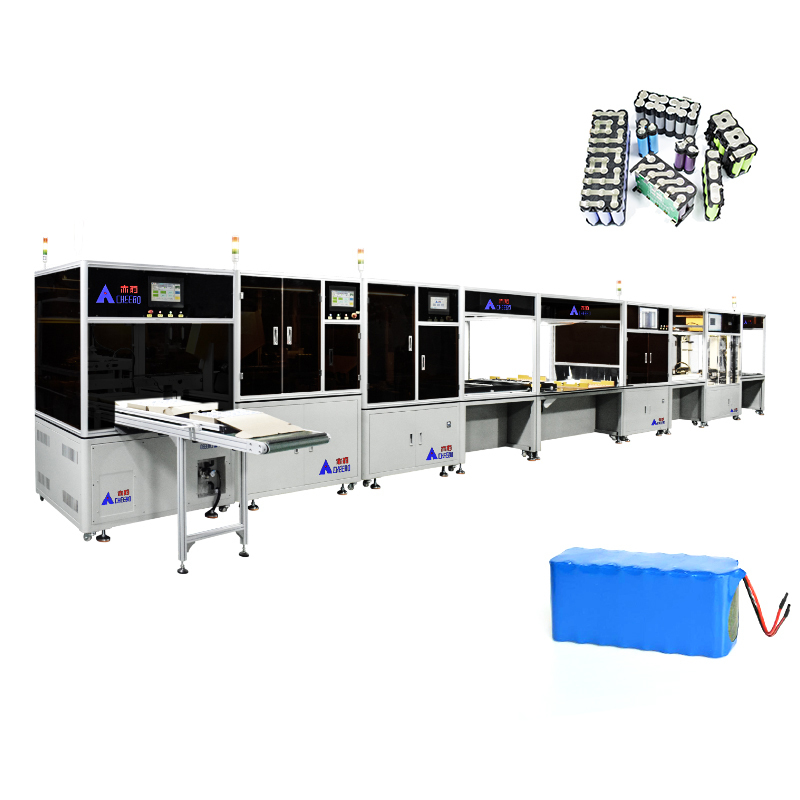

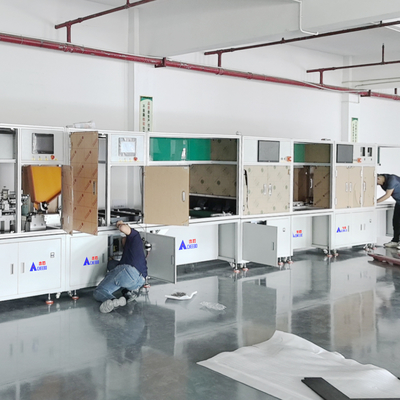

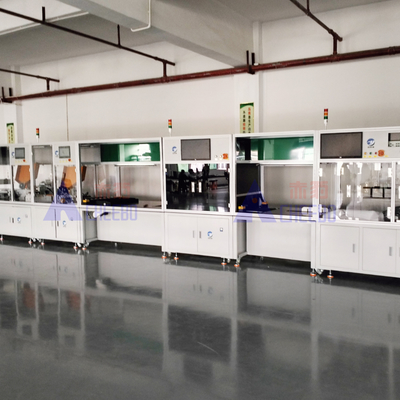

Product Images

Applications

This assembly line is suitable for manufacturing various types of battery packs including:

Power tool battery packs
Energy storage battery packs
Electric vehicle battery packs
Other cylindrical battery pack applications

Frequently Asked Questions

Q: I don't know which one is right for me?

A: Please provide the following information:
1) Cell type and model number you want to assemble
2) Capacity and volume of battery pack
3) Daily production requirements

Q: How do I install and run the machine?

A: Our technicians pre-install the machine before shipment. We provide detailed training videos and user manuals. 95% of customers can learn operation independently.

Q: What's your minimum order quantity?

A: No minimum order quantity - we support orders from 1 to 100+ units.

Q: How does your factory handle quality control?

A: Each unit undergoes more than 20 quality tests, including welding performance verification by our QC team.

Q: What if the machine has operational issues?

A: We provide:
1) 24/7 online engineer support
2) One-year warranty (customer covers shipping for replacement parts)
3) Comprehensive operation manual and training materials

Q: Can you provide training for machine operation?

A: Yes, we offer free training in China. For international customers, we send professional engineers to provide on-site training during installation.
