Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells

Brand Name: CHEEBO
Model Number: CBZDL-SS-5046
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Compatible Cell Models:
18650/21700/32700/26650/32650, Etc Cylindrical Cell
Dimensions:
11600*1000*1730MM (L*W*H)
Total Power:
220V 50/60Hz 6KW
Use Air Pressure:
0.5-0.8Mpa
Production Efficiency:
3000PCS/H(Automatic Part)
CCD Detection Field:
400*300MM（Max）
CCD Lens Pixel:
2000W
Spot Welder Stroke:
500*360MM（Max）
Cell Sorting Channels:
6+1
Nickel Sheet Thickness:
0.02-0.3MM
Number Of Stickers:
4PCS（Depends On Cell Type）
User Interface:
Touch Screen
Manpower Required:
3-5 People
Line Color:
Ivory White（Customizable）
Welding Direction:
Double-sided Automatic Spot Welding
Highlight:

semi-automatic 18650 battery pack assembly line

,

lithium battery pack assembly line for 21700 cells

,

semi-automatic battery pack assembly machine

Product Description
Lithium Ion Battery Assembly Line Equipment Multifunctional Battery Pack Production Line
Key Features
  • Semi-automatic lithium battery pack assembly line
  • Compatible with multiple cylindrical battery types including 18650, 21700, 26650, and more
  • Integrated production line design with optimized workflow
  • Automated CCD detection and spot welding capabilities
  • Customizable production according to specific requirements
Product Specifications
Compatible Cell Models
18650/21700/32700/26650/32650, etc Cylindrical cell
Dimensions
11600*1000*1730MM (L*W*H)
Line Color
Ivory white (Customizable)
Total Power
220V 50/60Hz 6KW
Use Air Pressure
0.5-0.8Mpa
Production Efficiency
3000PCS/H (Automatic part)
CCD Detection Field
400*300MM (Max)
CCD Lens Pixel
2000W
Spot Welder Welding Stroke
500*360MM (Max)
Cell Sorting Channels
6+1
Nickel Sheet Welding Thickness
0.02-0.3MM
Number of Stickers (Each time)
4PCS (Depends on cell type)
User Interface
Touch screen
Manpower Required
3-5 people
Applications
Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)
Product Images

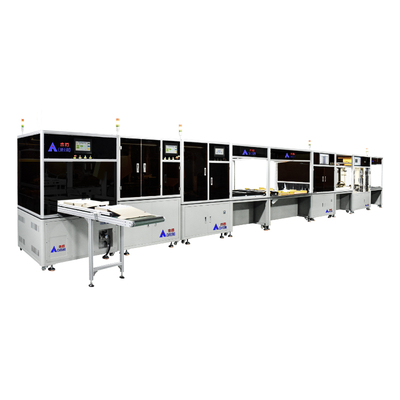

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells 0

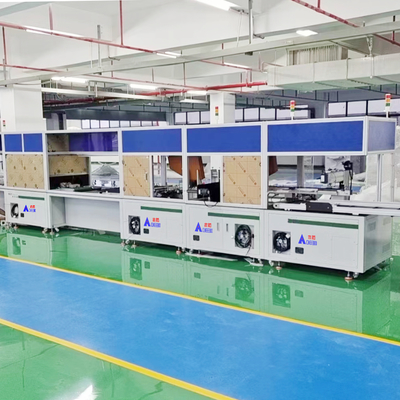

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells 1

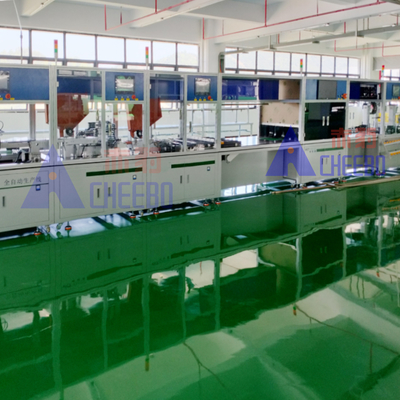

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells 2

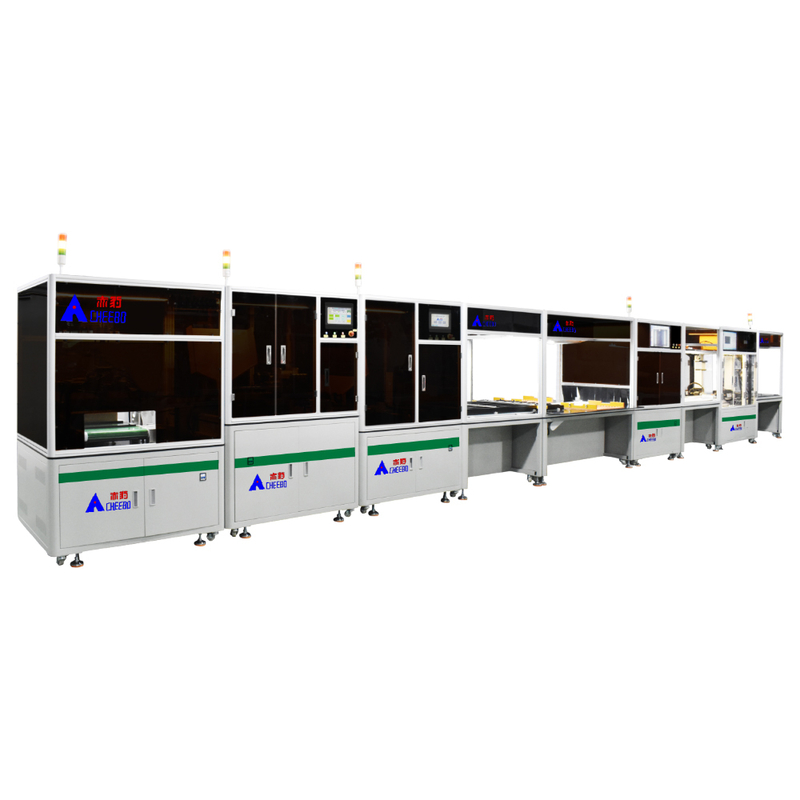

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells 3

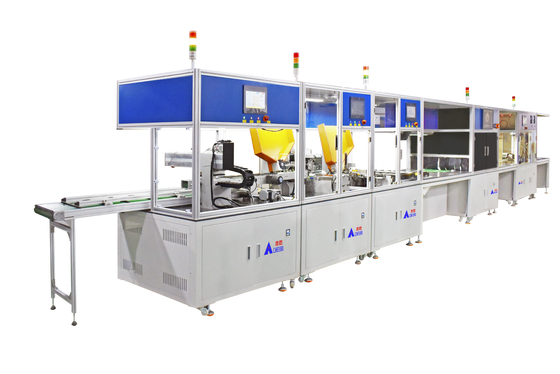

Semi-Automatic Lithium Battery Pack Assembly Line for 18650 21700 Cells 4
After-Sales Service
We provide comprehensive after-sales support including technical assistance, warranty coverage, and training materials.
Frequently Asked Questions
Q: I don't know which one is right for me?
A: Please tell us the following information:
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack?
3) How many battery packs should be produced per day
Q: How do I install and run the machine?
A: Our technicians install the machine before shipment. For installation of some widgets, we provide detailed training videos and user manuals. 95% of customers can teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it's an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. Each unit undergoes more than 20 tests. After passing all tests, our QC team verifies welding performance.
Q: When the machine can't work well, what should I do?
A: 1. Our engineers are available 24/7 to diagnose problems and provide solutions.
2. All machines come with a one-year warranty. For problems under normal use, we'll send replacement parts (customer covers shipping).
3. Operation CD and manual are provided with each machine for easy operation.
Q: If we don't know how to use the machine, can you teach us?
A: Yes, we offer free training in China until you can operate the machine confidently. For international customers, we send professional engineers to train your staff during installation.
