18650 EV Battery Pack Assembly Line for E-Bikes and Power Tools

Brand Name:	CHEEBO
Model Number:	CBZDL-SS-5046
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Compatible Cell Models:

18650/21700/32700/26650/32650

Dimensions:

11600*1000*1730MM (L*W*H)

Line Color:

Ivory White (Customizable)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H (Automatic Part)

CCD Detection Field:

400*300MM (Max)

CCD Lens Pixel:

2000W

Spot Welder Stroke:

500*360MM (Max)

Cell Sorting Channels:

Nickel Sheet Thickness:

0.02-0.3MM

Number Of Stickers:

4PCS (Depends On Cell Type)

User Interface:

Touch Screen

Manpower Required:

3-5 People

Welding Type:

Spot Welder

Highlight:

18650 EV battery assembly line

e-bike battery pack production line

power tool battery pack assembly

Product Description

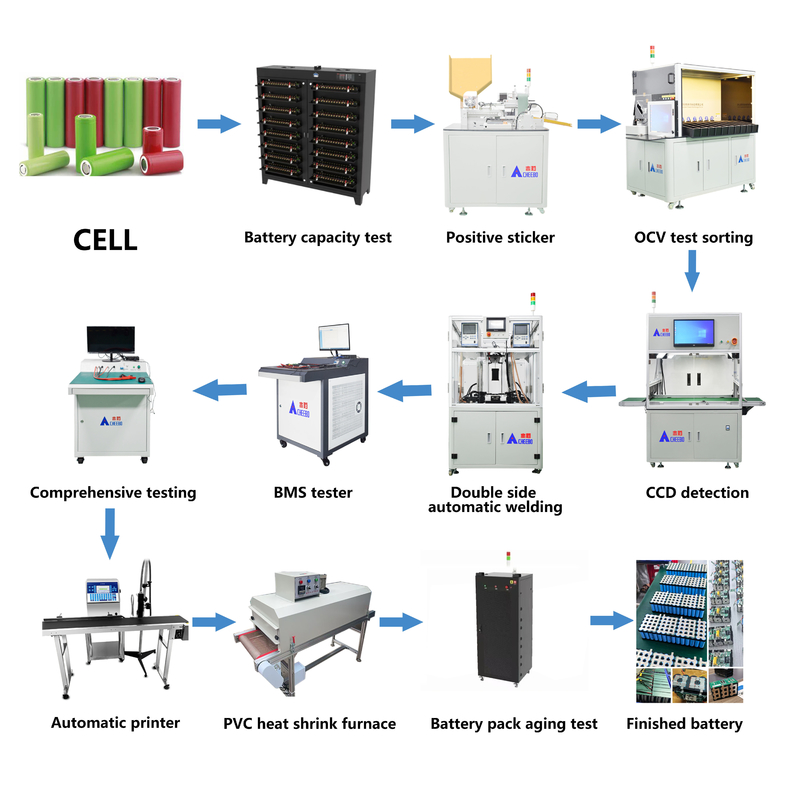

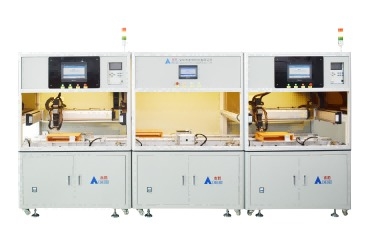

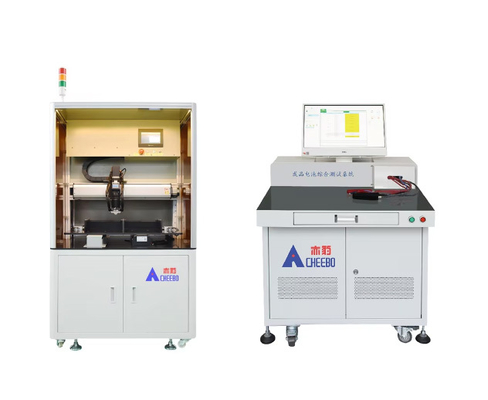

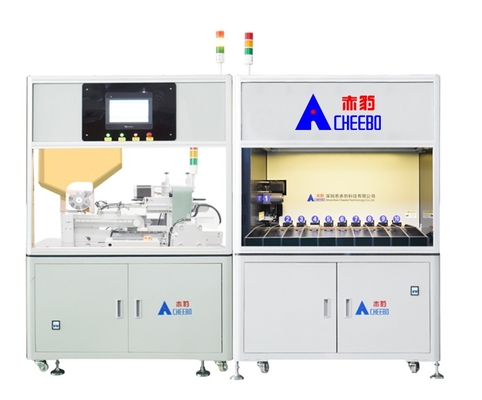

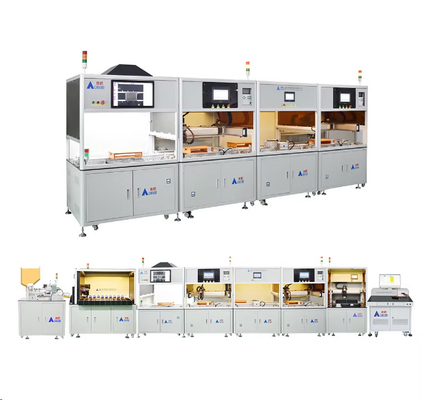

18650 E-Vehicles EV Bike Battery Pack Assembly Machine

Key Features

High-efficiency battery pack assembly line for electric bikes and vehicles
Compatible with multiple cylindrical cell models (18650/21700/32700/26650/32650)
Automated production with touch screen interface
High-speed operation with production capacity of 3000PCS/H
Precision CCD detection system with 2000W pixel lens

Technical Specifications

Compatible Cell Models:

18650/21700/32700/26650/32650, etc Cylindrical cell

Dimensions:

11600*1000*1730MM (L*W*H)

Line Color:

Ivory white (Customizable)

Total Power:

220V 50/60Hz 6KW

Use Air Pressure:

0.5-0.8Mpa

Production Efficiency:

3000PCS/H (Automatic part)

CCD Detection Field:

400*300MM (Max)

Spot Welder Welding Stroke:

500*360MM (Max)

Nickel Sheet Welding Thickness:

0.02-0.3MM

Manpower Required:

3-5 people

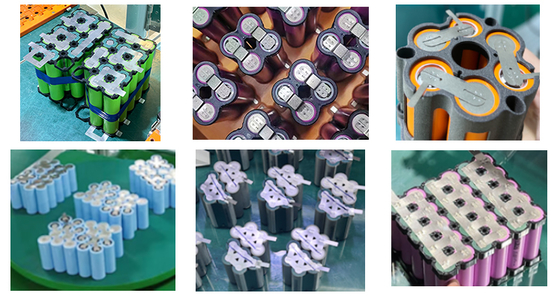

Applications

This battery pack assembly machine is suitable for manufacturing:

Power tool battery packs
Energy storage battery packs
Electric vehicle battery packs (including but not limited to)

After-Sales Support

We provide comprehensive after-sales service including:

24-hour online technical support
One-year warranty on all machines
Detailed operation manuals and training videos
Optional on-site training by professional engineers

Frequently Asked Questions

Q: I don't know which machine is right for me?

A: Please provide: 1) Cell type and model number, 2) Battery pack capacity and volume, 3) Daily production requirements.

Q: How do I install and run the machine?

A: Machines are pre-installed before shipment. We provide detailed training videos and manuals - 95% of customers can self-install.

Q: What's your minimum order quantity?

A: No minimum order quantity - we support orders from 1 to 100+ units.

Q: How does your factory handle quality control?

A: Each unit undergoes 20+ quality tests, including welding performance verification by QC specialists.

Q: What if the machine has operational issues?

A: 1) 24-hour engineer support, 2) One-year warranty (parts replacement for normal use), 3) Comprehensive operation guides included.

Q: Do you provide training for machine operation?

A: Yes, we offer free training in China. For international customers, we can send engineers for on-site training during installation.
