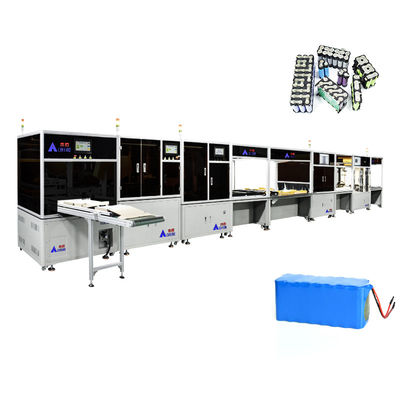

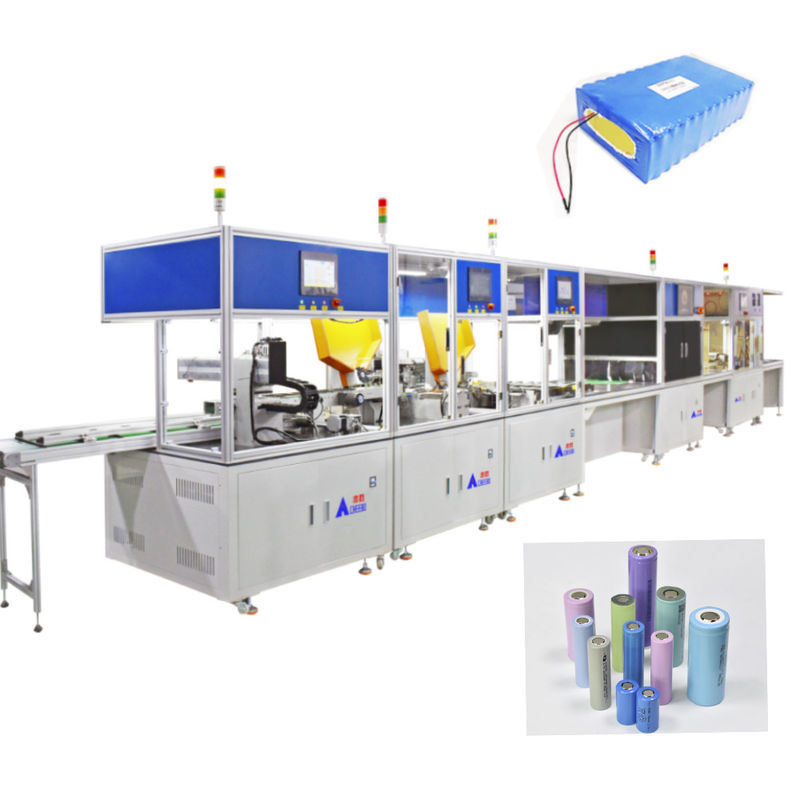

1. Suitable for batteries: The entire production line is suitable for 18650 21650 21700 26650 32650 32700 cylindrical steel shell batteries (CCD and double-sided 8-axis automatic spot welding machine parts can be used for 33140 resistance welding batteries).
2. Whole box battery feeding saves manpower and time.
3. The overall design of the production line body, the forward design of the battery charging mechanism, is easy to operate, and the overall appearance is beautiful.
4. The installation and release of sorting units directly unloading to the unit operator station saves manpower and time.
5. The core workbench and line body of the human body fixture are designed to be integrated, making it easy to operate.
6. The CCD automatically senses incoming and outgoing work, intervenes automatically during normal operation, and manually handles product abnormalities.
7. Eight axis double-sided automatic spot welding machine can spot weld slotted batteries in different directions.
8. Place the spot welding machine on the belt line end of the production line, so that the line end of the production line becomes integrated with the production line.
9. The fixture reflux mechanism is designed smoothly, easy to operate and use, and does not occupy space. 10. Production can be customized according to demand
| Compatible cell models | 18650/21700/32700/26650/32650, etc Cylindrical cell |
| Dimensions | Dimensions |
| Line color | Ivory white(Customizable) |
| Total power | 220V 50/60Hz 6KW |
| Use air pressure | 0.5-0.8Mpa |
| Production efficiency | 3000PCS/H(Automatic part) |
| CCD lens pixel | 2000W |
| CCD detection field | 380*500MM(Max) |
| Spot welder welding stroke | 500*360MM(Max) |
| Cell sorting channels | 6+1 |
| Nickel sheet welding thickness | 0.02-0.3MM |
| Number of stickers (Each time) | 4PCS(Depends on cell type) |
| User interface | Touch screen |
| Manpower required | 3-5 people |
Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)
Q: I don't know which one is right for me?
A: Please tell us the following information
1) What type of cell do you want to assemble? What is its model number? 2) Capacity and volume of battery pack? 3) How many battery packs should be produced per day
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can teach themselves.
