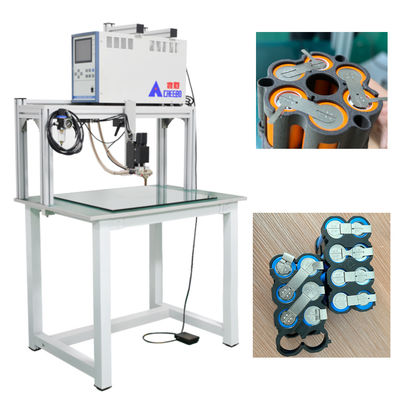

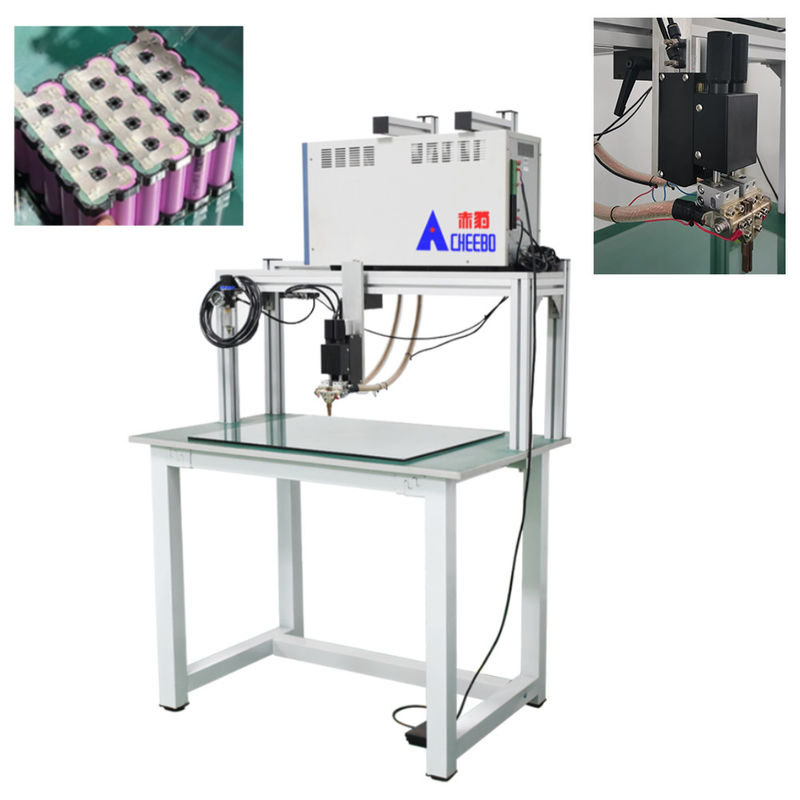

Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine

Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine

  • High Light

    Lithium Battery Spot Welding Machine

    ,

    Gantry Spot Welding Machine

    ,

    Semi Automatic Spot Welding Machine

  • Usage
    Spot Welding
  • Condition
    New
  • Weight
    60KG
  • Dimensions
    600*900*1420mm
  • Max. Welding Thickness
    0.3mm
  • Power (kW)
    Single Side Double Point Horizontal Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine

Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine


Equipment introduction



● Adopting the self-developed precision welding head, the pressure adjustment control is accurate.


● The bipolar output eliminates the welding polarity effect and makes the energy on both sides of the welding rod consistent, which can effectively eliminate the sticky needle phenomenon.


● In bipolar output, the welding voltage/current flows from the left pin to the right pin for the first weld and the welding energy flows from the right pin to the left pin for the second weld.


● Can be used for both bump and tip welding.


● Three control modes are available: constant current, constant voltage, and a combination of constant current and constant voltage.


● The built-in pre-test function can be used to determine whether the workpiece is energized before welding.


● Lithium battery spot welding machine has fast and efficient switching of welding current through transistors, no transformer required.


● No need for a welding transformer, small size, light weight and beautiful.


● The welding power supply is controlled by a switching method, enabling small but efficient welding and high output.


● The power supply has a fast rise in welding current, enabling high quality welding in a short time.


● Added continuous spot welding function to effectively improve production efficiency.


● Independently developed precision welding head with precise pressure adjustment control.


● Controlled by microcomputer technology, it can monitor the welding current, voltage, power and resistance waveform dynamically in real time.


● 5.7" HD LED Display for easy and intuitive adjustment of equipment parameters, and multiple programs can be stored in advance.


● Thicker explosion-proof glass protects the table from wear and tear when welding, ensuring smooth welding.


● Welding is done by vertical spot welding with manual control of press-in depth.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Bipolar transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1.Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine 0



2.Pure copper cable
Coarse pure copper cable, low wire resistance, large bearing capacity, thick enough, no thermal current lossless transfer to the welding head to ensure the welding current.



Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine 1



3.Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Direct Selling High-Quality Bipolar Semi-Automatic Gantry Transistor Lithium Battery Spot Welding Machine 2



Equipment workflow



Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -



press the welding head - spot welding completed - welding head return



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
