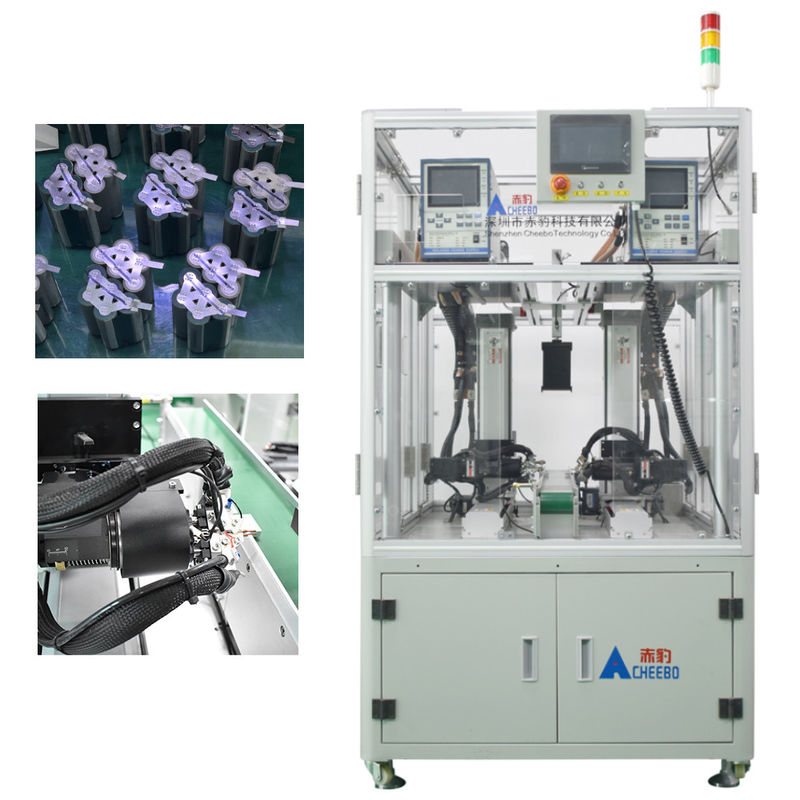

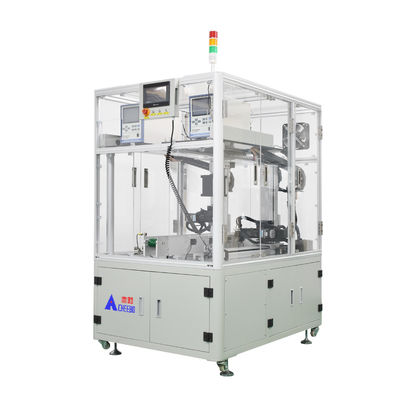

Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided

Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided

  • High Light

    Eight Axis Rotating Spot Welding Machine

    ,

    Lithium Battery Spot Welding Machine

    ,

    Double Sided Spot Welding Machine

  • Voltage
    220v50
  • Usage
    Spot Welding
  • Condition
    New
  • Weight
    330kg
  • Dimensions
    1400*1000*1680mm
  • Max. Welding Thickness
    0.3mm
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided

Hot Selling Lithium Battery Eight Axis Rotating Double-Sided Automatic Spot Welding Machine


Equipment introduction

● This lithium battery spot welding machine adopts the electric precision rotating welding head independently developed by ceebo technology. The 135° rotating welding head design can set the rotation Angle of the welding head according to the slot position of the nickel sheet to avoid welding errors caused by the failure of the welding head to rotate. At the same time, it has the function of anti-sticking needle.


● The left and right sides are welded at the same time, the left and right platforms can be independently set welding parameters, and the welding path and rotation Angle and direction can be independently set according to different welding requirements.


● HD LCD touch screen, human-machine interface, easy to operate. Manual programming, CAD drawing, importing spot welding path, fast programming. Simple and easy to learn, ordinary workers can set.


● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.


● Production count function, set the production quantity, complete the output automatically stop.


● Welding needle compensation function, set the number of welding needles, and automatically remind when the number of repairing needles is reached.


● Manual debugging function, you can fine-tune the welding head of each point, and save the spot welding parameters (easy to modify the welding coordinates), you can also use the one-click correction function to adjust.


● The designed structure (forward forward out or forward forward out) can be connected with the back-end production line, and can be taken out on the other side after welding to improve production efficiency.


● Blast welding, virtual welding, automatic alarm of welding equipment, manual adjustment of welding error area, automatic repair welding, can also set single point repair welding.


● Taiwan upper silver rod guide module, high precision, low noise, smooth sliding, durable.


● Aluminum alloy skeleton, imported acrylic shielding plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Device action flow description

The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device



automatically spot-welds the device to the extraction position (select the discharge method: forward forward out, forward forward



out) -- the battery pack is removed from the fixture -- and the next production cycle is carried out

Technical specification

Production efficiency 3600PCS/H Welding head rotation Yes
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
Welding source Transistor/multipulse (Optional) Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

1. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 0



2. Hd touch screen

Real time display of welding data and welding hole positions. The system parameter settings are simple and easy to learn.
Support manual programming, CCD mapping, importing solder joint paths, and achieving fast programming.



Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 1



3. Electric rotating welding head

The welding head can rotate 135 ° for welding, suitable for irregular nickel plates, and also has anti stick needle function.
The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 2

Application case

1. Energy storage battery pack 2. Electric bicycle battery pack 3. Electric tool battery pack



Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 3 Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 4 Lithium Battery Automatic Spot Welding Machine Eight Axis Rotating Double-Sided 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
