Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries

Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries

  • High Light

    Five Level Cylindrical Batteries Sorting Equipment

    ,

    Cylindrical Batteries Sorting Equipment

    ,

    Automatic Cylindrical Batteries Sorting Equipment

  • Product Name
    5 Gear Cell Sorting Machine
  • Core Component
    Internal Resistance Tester
  • Warranty Period
    1 Year
  • Appearance Structure
    Aluminum Alloy
  • Display Type
    7 "touch Screen
  • Transmission Mode
    Belt Transmission
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

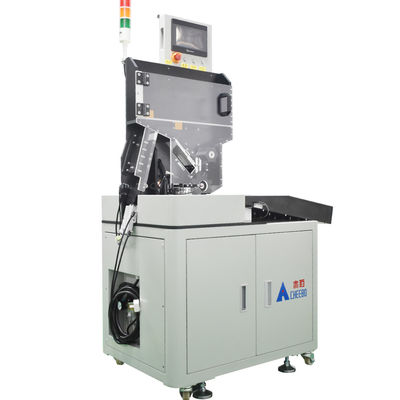

Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries

Five Level Automatic Sorting Equipment Suitable For Various Specifications Of High-Quality Cylindrical Batteries


Equipment introduction



● This battery sorting machine is suitable for automatic sorting equipment for cylindrical battery voltage internal resistance test of various specifications.


● Multiple battery types can be used: 18650/21700/26650/26700/32650/32700 models.


● CBFXH-05 lithium battery separator can complete the separation of more than 4,000 cylindrical products batteries per hour.


● Easy-to-operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, you can complete the parameter setting.


● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life, low failure rate.


● Using high-definition touch screen computer, human-computer interaction is simple and convenient.


● Reserved interface with the paper machine, can be directly connected with the paper machine, saving labor costs.



●PLC+ host computer control mode, real-time display of upper computer, record cell sorting data.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.


● With manual parameter modification function, you can fine-tune each gear, or you can use the one-key modification function to adjust.


● Sorting gear ramp design, cutting port, convenient to receive materials, improve production efficiency.


● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention, anti-static.



Equipment debugging project
  1. Sorting data Settings
  2. The sorting template is generated
  3. Idle times setting
  4. Compensation value setting
  5. Monitor voltage internal resistance
  6. Test pin change
Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --



the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out



Function Introduction



1.Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries 0



2.Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 200PCS18650 battery cells.



Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries 1



3.Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.



Belt Transmission Five Level Automatic Sorting Equipment For Cylindrical Batteries 2



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
