Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power

  • High Light

    Battery Cell Sorting Machine 220V

    ,

    Industrial Lithium Cell Sorting Machine

    ,

    Touchscreen Lithium Cell Sorting Machine

  • Product Name
    10 Gear Sorting Machine
  • Sorting Gear
    10+1 Gear
  • Voltage Accuracy
    0.1%
  • Internal Resistance Accuracy
    0.5%
  • Power Specifications
    220V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    15 Set/Sets per Week

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power


Equipment introduction

● This type of cell sorting machine is suitable for automatic sorting equipment of voltage and internal resistance test of cylindrical cell of various specifications.


● The number of finished cylindrical cells is more than 4000 units per hour.


● Adopt 10+1 gear design, a total of 11 gear. The rear end is independently equipped with 1 NG slot and 10 good product stalls.


● PLC+ host computer control mode, host computer real-time record and display sorting data, sorting data can be saved and exported.


● Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design. The mechanical structure design is simple and elegant, and the system performance is stable.


● Adopt integrated industrial grade computer, human-computer interaction is simple and convenient


● Easy to operate interface, with one-key generation function, only need to enter the initial voltage resistance, input the corresponding interval, you can complete the parameter setting.


● It comes with manual parameter modification function, which can be fine-tuned for each gear, or adjusted using the one-click modification function.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, anti-static.



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI 3561/HOPE 350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting

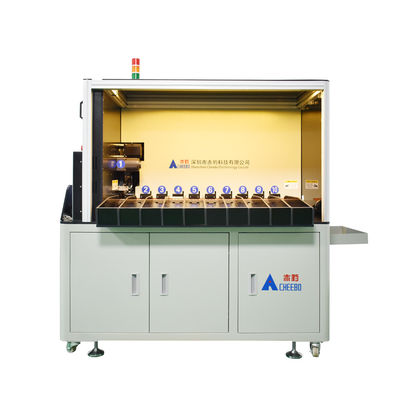

Equipment analysis diagram

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power 0

1. Battery charging spout 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor



Function Introduction

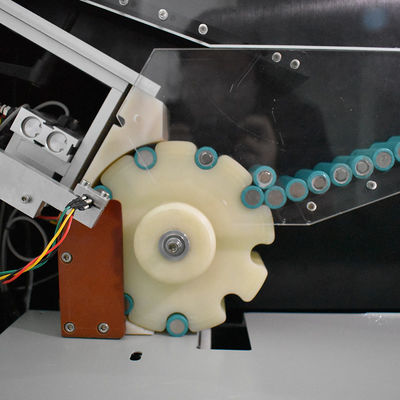

 1. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.



Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power 1



 2. Italic design

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power 2



 3. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

Touchscreen Lithium Battery Cell Sorting Machine Industrial Control 220V Power 3



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
