Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack

Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack

  • High Light

    Cylindrical Cell Sorter Machine


    Battery Sorting Machine 1.5KW


    Automatic Battery Sorting Machine

  • Power(KW)
  • Product Name
    5 Gear Cell Sorting Machine
  • Production Efficiency
  • Weight
    150 KG
  • Sorting Gear
    4+1 Gear
  • Test Location
    Anode And Cathode
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Internal sealing mold, external wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

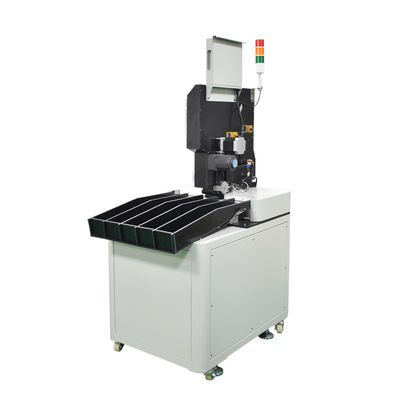

Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack

Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack


Equipment introduction

● This battery sorting machine is suitable for automatic sorting equipment for voltage internal resistance tests of cylindrical batteries of various specifications.

● Applicable battery models: 18650/21700/26650/26700/32650/32700 models.

● Complete the sorting of more than 4000 cylindrical finished battery cells per hour.

● Easy to operate interface with one click generation function. Simply input the initial voltage resistance and corresponding range to complete parameter settings.

● Adopting PLC+upper computer control mode, the upper computer records and displays sorting data in real-time.

● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.

● Equipped with manual parameter modification function, each gear can be fine tuned or adjusted with one click modification function.

● Mitsubishi PLC+imported Panasonic servo control unit+4 probe designs, high-end configuration, stable performance, long service life, and low failure rate.

● Adopting high-definition touch screen computer, human-computer interaction is simple and convenient.

● Reserve an interface for connecting to the paper machine, which can be directly connected to the paper machine, saving labor costs.

● The sorting gear has a sloping design and an open gate, which facilitates material collection and improves production efficiency.

● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.


Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting


Device action flow description


The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --


the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt -- the


sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out


Function Introduction

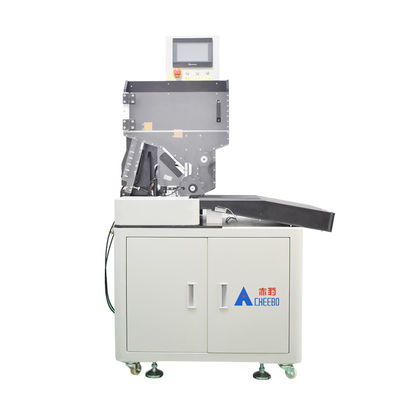

 1. Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.


Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack 0


 2. Baffleless design

No baffle design, smooth operation, no lag.
The sorting state of the cell at the arrival position is clearly visible. Flexible belt design


Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack 1


 3. On-line mechanism

Can be connected according to the production process needs to save costs, to meet the diversification of production.


Automatic Cylindrical Cell Sorter Machine Battery Assembly For Battery Pack 2


Debugging project
  1.  Sorting data Settings
  2.  The sorting template is generated
  3.  Idle times setting
  4.  Compensation value setting
  5.  Monitor voltage internal resistance
  6.  Test pin change


Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?


Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.


Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.


Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.


Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.


Service process


1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery


After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.


Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
