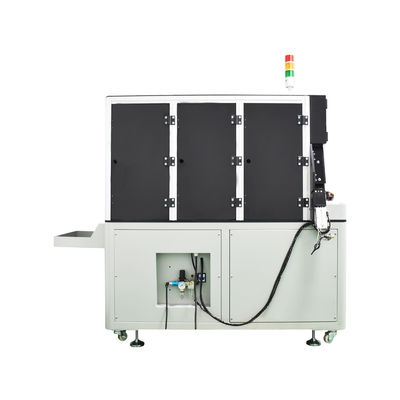

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine

  • High Light

    Automatic Battery Cell Sorting Machine


    18650 Battery Cell Sorting Machine


    10 gear Battery Cell Sorting Machine

  • Production Efficiency
  • Waste Sorting File
  • Finished Product Sorting File
  • Air Source Specifications
  • Product Name
    10 Gear Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine


Equipment introduction

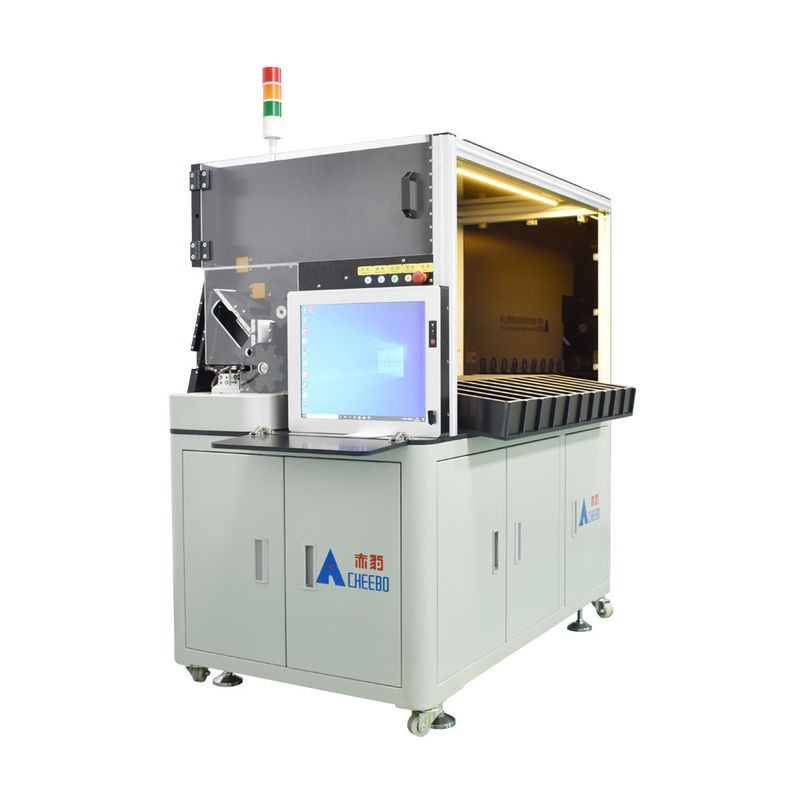

● CBFXH-10 multifunctional cylindrical battery testing and sorting machine is an automatic sorting equipment suitable for voltage and internal resistance testing of various specifications of cylindrical cells.


● Applicable battery cell models: 18650/21700/26650/26700/32650/32700, etc

● Complete the sorting of more than 4000 cylindrical finished cells per hour.

● Easy to operate interface with one click generation function. Simply input the starting voltage internal resistance and corresponding interval to complete parameter setting.

● Equipped with manual parameter modification function, it can be fine-tuned for each gear position or adjusted with one click modification function.

● Adopting a 10+1 gear design, there are a total of 11 gears. 10 good product positions, with 1 NG slot independently set at the rear end.

● Adopting PLC+upper computer control mode, the upper computer records and displays sorting data in real-time, and the sorting data can be saved and exported.

● Adopting Mitsubishi PLC+imported Panasonic servo control unit+4 probe design. The mechanical structure design is simple and generous, and the system performance is stable.

● Adopting a 19 inch integrated industrial grade computer, real-time display of sorting data, and simple and convenient human-computer interaction.

● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.

● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.


Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting


Function Introduction


 1. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine 0


 2. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine 1


 3. Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 400PCS18650 cells.

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine 2


Equipment analysis diagram

Automatic Lithium Battery Sort 18650 Battery Cell Sorting Machine 3

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor


Device action flow description


Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery - Tester reads


data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to the specified gear - Gear


cylinder action pushes the battery out
