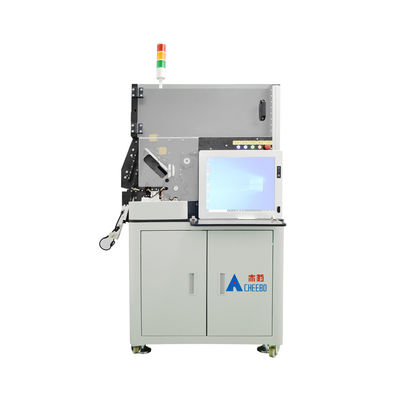

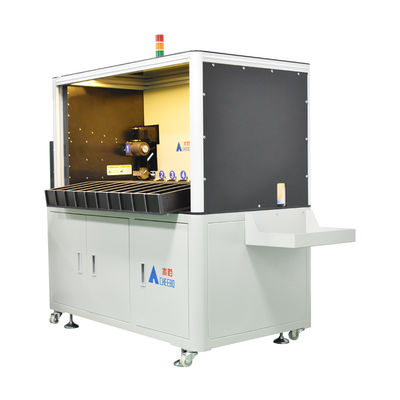

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer

  • High Light

    Cylinder Push Battery Cell Sorting Machine

    ,

    Cylinder Push Lithium Cell Sorting Machine

    ,

    Cell Sorting Machine With Hopper Belt

  • Product Name
    10 Gear Sorting Machine
  • Duty Cycle
    20%
  • Repositioning Accuracy
    0.1mm
  • Work Environment
    10℃—32℃
  • Cell Storage
    50PCS18650 (1 Gear)
  • Internal Resistance Tester
    HOPE3560
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer


Equipment introduction

● CBFXH-10 Multifunctional Cylindrical Battery Testing and Sorting Machine is an automatic sorting equipment suitable for voltage and internal resistance testing of cylindrical batteries of various specifications.


● Low battery model applicable: 18650/21700/226650/32700/26700/32650, etc


● More than 4,000 cylindrical finished cells can be sorted per hour.


● Simple operation interface, with one-click generation function. Simply enter the starting voltage internal resistance and the corresponding interval to complete the parameter setting.


● It has manual parameter modification function, which can be adjusted for each gear by fine tuning or one-click modification function.


● 10+1 gear design, a total of 11 gear. 10 quality Goods slots, with one independent Defective Goods Storage Area at the back end.


● PLC+ host computer control mode, host computer real-time record and display sorting data, sorting data can be saved and exported.


● Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design. The mechanical structure design is simple and elegant, and the system performance is stable.


● 19-inch integrated industrial computer, real-time sorting data display, human-computer interaction is simple and convenient.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.



Equipment analysis diagram

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer 0

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor



Device action flow description



Put the battery into the silo - the test wheel runs to the test position - the test cylinder moves - the test pin presses on the battery - the tester reads



the data - transmits to the computer - the computer does the gear matching - the battery goes to the sorting belt - the sorting belt Run to



designated gear - the gear cylinder action pushes the battery out



Function Introduction



 1. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer 1



 2. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer 2



 3. Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 400PCS18650 cells.

18650 Lithium Battery Cell Sorting Machine 10 Gears Sorting Belt Transfer 3



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
