Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery

Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery

  • High Light

    18650 Cylindrical Battery Spot Welding Machine

    ,

    Dual Station Spot Welding Machine

    ,

    Cylindrical Lithium Battery Spot Welding Machine

  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Welding Material
    Copper Alumina
  • Boundary Dimension
    600*900*1420MM
  • Relocation Accuracy
    0.3MM
  • Welding Head
    Electric
  • Warranty
    1 Year
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1710
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery

Direct Sales Of High-Quality 18650 Cylindrical Lithium Battery Dual Station Rotating Single-Sided Spot Welding Machine




Equipment introduction

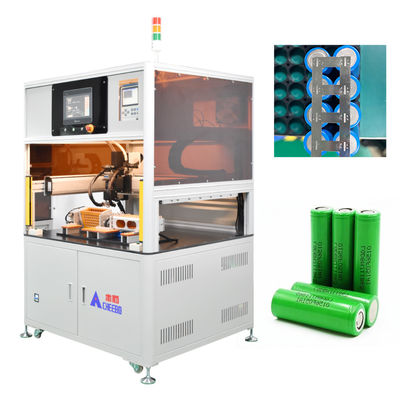

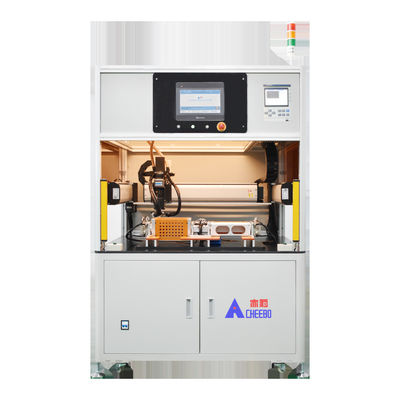

● It adopts welding fixture design that can be automatically flipped. After the A-side welding is completed, it can be automatically flipped to the B-side welding without manually flipping the fixture.


● The welding head can be rotated 135°, which is suitable for welding irregularly shaped nickel sheets, effectively avoiding needle sticking phenomenon during welding.


● Install grille protection devices on both sides to ensure the safe operation of the equipment.


● The explosion welding and virtual welding equipment will automatically alarm, and the automatic area repair welding and single point repair welding will be manually adjusted.


● Using HIWIN module, high precision, low noise, smooth sliding and durable.


● Using Panasonic servo, fast welding speed and high precision.


● High-definition LCD touch screen, man-computer interaction interface, simple and convenient operation.


● Independent development of various automatic intelligent systems, convenient equipment operation, help improve production efficiency.


● With energy switching function, production counting function, welding pin compensation function, manual debugging function, etc. It can assist in the intelligent operation of the equipment.


● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.


● Production counting function, set the production quantity, complete the output automatic shutdown of the welding pin compensation function, set the number of welding pins, and automatically remind the welding pin maintenance after the number of times.


● Manual debugging function, you can fine-tune the welding head for each point and save the spot welding parameters (it is convenient to modify the coordinates of the welding joint), or you can use the one-key correction function to adjust.


● Manual programming, CAD drawing, import spot welding path, and fast realization of programming. Easy to learn, production line workers are fully competent.


● Aluminum alloy structure, electrostatic powder spraying process, anti-scratch, anti-rust, anti-static.


● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production safety factor.



Application scope of the product



The equipment is suitable for fully automatic single-sided spot welding of 18650, 21700, 26650, 32700 and other kinds of cylindrical battery cell



combinations. It is suitable for the production of NB/Power Tool/Gardening Tool/High Power/Storage Power Station Battery/Electric



Motorcycle/Electric Vehicle and other modular lithium battery pack spot welding, and can be used with the lithium battery pack production line.


This equipment is a multi-axis control machine developed by modern automation expert technology, with precision transmission and motor control



mechanism, self-propelled travel mechanism, effective real-time control of the processing of automated production equipment.

  •

  • Adjustable items



1. Y axis, X axis, A axis, U axis coordinate parameters
2. Spot welding power supply parameter setting
3. Spot welding pressure, stroke adjustment
4. Spot welding times set
5. Needle service life setting
6. Spot welding spacing setting
7. Spot welding mode setting



Technical specification
Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools



Function Introduction



1. Hd touch screen



Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 0



2.Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 1

3.Double station rotating platform

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.



Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 2



    1. Welding case



Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 3 Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 4 Dual Station Rotating Single-Sided Spot Welding Machine For 18650 Cylindrical Lithium Battery 5
