Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery

Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery

  • High Light

    Lithium Battery Voltage Sorting Machine

    ,

    Cylindrical Cell Voltage Sorting Machine

  • Appearance Structure
    Aluminum Alloy
  • Transmission Mode
    Belt Transmission
  • Product Name
    5 Gear Cell Sorting Machine
  • Core Component
    Internal Resistance Tester
  • Display Type
    7 "touch Screen
  • Warranty Period
    1 Year
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery

Lithium Battery Professional Finished Cylindrical Cell Voltage Sorting Machine

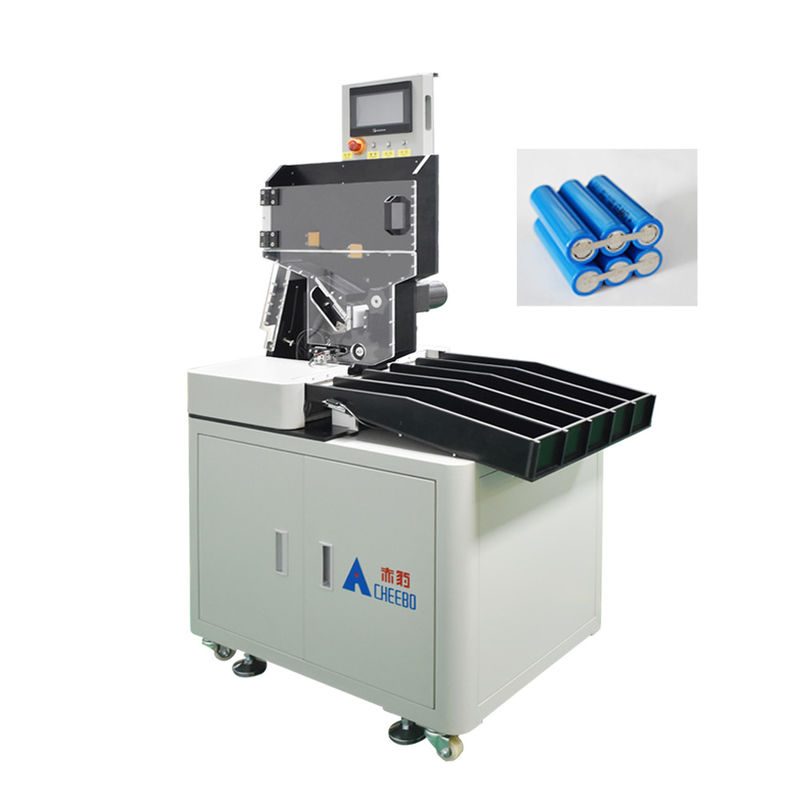

Equipment introduction



● This battery sorting machine is suitable for automatic sorting equipment for cylindrical battery voltage internal resistance test of various specifications.


● Multiple battery types can be used: 18650/21700/26650/26700/32650/32700 models.


● CBFXH-05 lithium battery separator can complete the separation of more than 4,000 cylindrical products batteries per hour.


● Easy-to-operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, you can complete the parameter setting.


● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life, low failure rate.


● Using high-definition touch screen computer, human-computer interaction is simple and convenient.


● Reserved interface with the paper machine, can be directly connected with the paper machine, saving labor costs.



●PLC+ host computer control mode, real-time display of upper computer, record cell sorting data.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.


● With manual parameter modification function, you can fine-tune each gear, or you can use the one-key modification function to adjust.

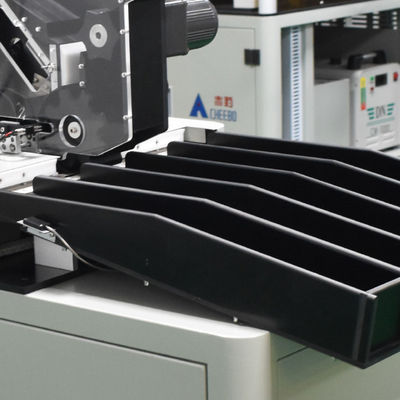

● Sorting gear ramp design, cutting port, convenient to receive materials, improve production efficiency.


● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention, anti-static.



Equipment debugging project
  1. Sorting data Settings
  2. The sorting template is generated
  3. Idle times setting
  4. Compensation value setting
  5. Monitor voltage internal resistance
  6. Test pin change
Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --



the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out



Function Introduction



1.Inspection and testing organization

4-probe design, simultaneous detection of positive and negative electrodes, equipped with a branded internal resistance meter for more accurate detection data.According to the test parameters, the upper computer analyzes the data and classifies cells into designated channels.Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery 0



2.Loading mechanism

Humanized design makes it easy to fill the entire box. A large hopper can accommodate 200PCS 18650 batteries at a time.



Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery 1



3.Operating interface

Using a 7-inch touch screen, gear parameter settings are simple and fast. Real time display of sorted data.



Professional Finished Cylindrical Cell Voltage Sorting Machine For Lithium Battery 2
