Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery

Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery

  • High Light

    Professional Battery Pack Spot Welding Machine

    ,

    Lithium Battery Pack Spot Welding Machine

  • Usage
    Spot Welding
  • Condition
    New
  • Weight
    330kg
  • Dimensions
    1680*1400*2000mm
  • Max. Welding Thickness
    0.3mm
  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

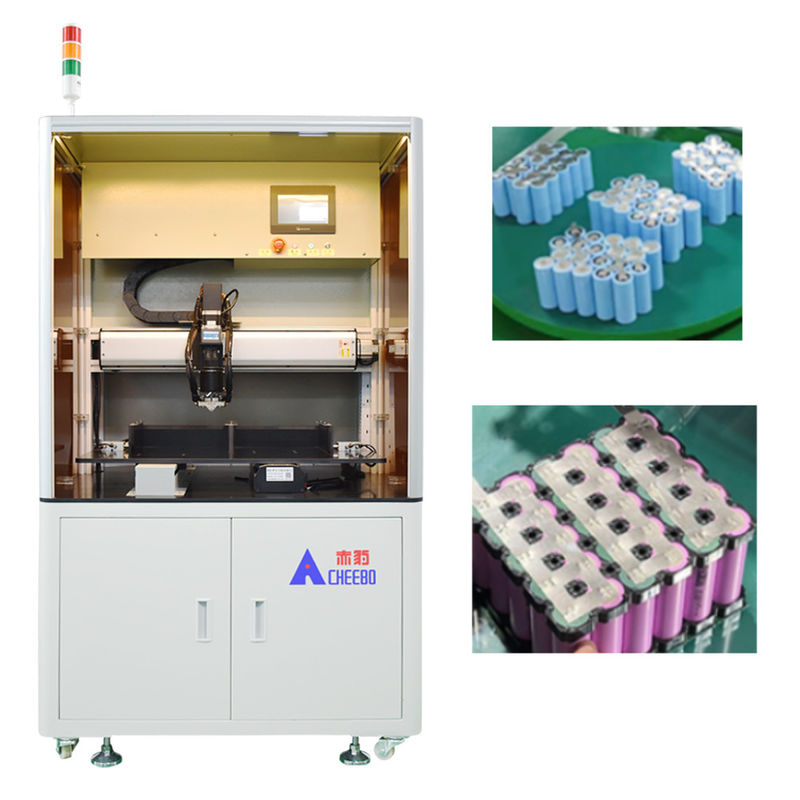

Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery

Lithium Battery Single-Sided Nickel Sheet Professional Product Battery Pack Spot Welding Machine


Equipment introduction



● This lithium battery spot welding machine is a multi-axis control machine tool developed by modern automation experts, equipped with precision transmission and motor control mechanism, self-propelled travelling mechanism, automated production equipment, effective real-time control of processing.


● Applicable to fully automatic single-side spot welding of 18650, 21700, 26650, 32700 and other cylindrical battery combinations.


● CBMO4-1710 Li-ion battery welding single-side machine adopts welding fixture design, which can be automatically turned over after A-side welding is completed, and can be automatically turned over to B-side welding without manually turning over the fixture.


● CHEEBO core welding head automatic spot welder can be rotated 135°, which is suitable for the welding of irregular shape nickel sheet, and effectively avoid the needle dirt during welding.


● There are grid protection devices on both sides to ensure the safe operation of the equipment.


● Blow-up welding and false welding equipment will automatically alarm, automatic area replenishment welding, single-point replenishment welding manual adjustment.


● Adopt HIWIN module, high precision, low noise, smooth and durable sliding.


● Adopt Panasonic servo, fast welding speed and high precision.


● High-definition LCD touch screen, human-machine interactive interface, easy and convenient operation.


● Independently developed various automation intelligent system, convenient for equipment operation, help to improve production efficiency.


● With energy switching function, production counting function, soldering foot compensation function, manual debugging function and so on. It can assist the intelligent operation of equipment.


● Manual programming, CAD drawing, spot welding path import, quick programming. Easy to learn, fully competent for production line workers.


● Aluminium alloy structure, electrostatic powder coating process, scratch-resistant, anti-rust, anti-static.


● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve production safety factor.



Technical specification
Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools



Function Introduction





1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery 0

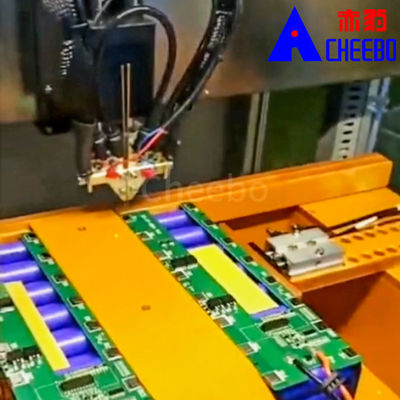

2. Precision servo welding head

The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.

Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery 1



3. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Professional Battery Pack Spot Welding Machine Single-Sided Nickel Sheet For Lithium Battery 2

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
