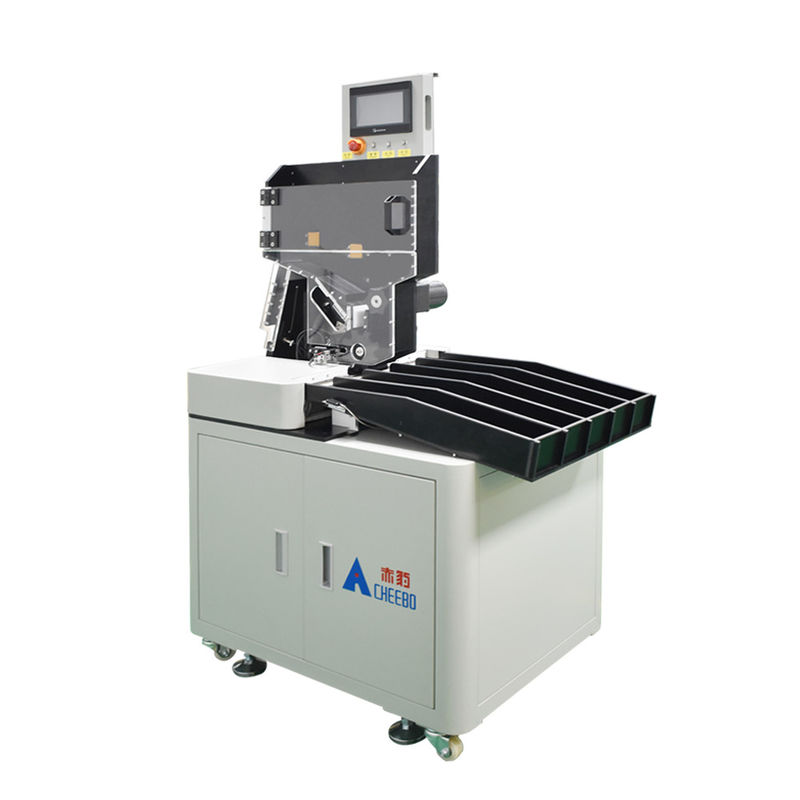

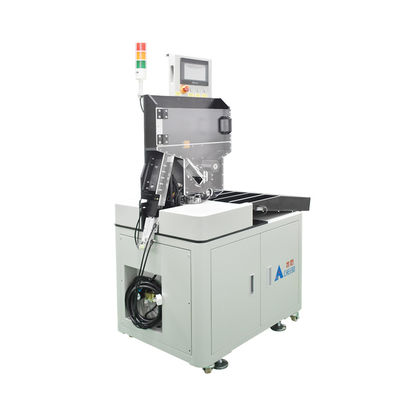

● This battery sorting machine is suitable for automatic sorting equipment for cylindrical battery voltage internal resistance test of various specifications.
● Multiple battery types can be used: 18650/21700/26650/26700/32650/32700 models.
● CBFXH-05 lithium battery separator can complete the separation of more than 4,000 cylindrical products batteries per hour.
● The operation interface is simple, with one click generation function. Only the initial resistance is required, and the corresponding interval is entered to complete parameter settings.
● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life, low failure rate.
● Using high-definition touch screen computer, human-computer interaction is simple and convenient.
● Reserved interface with the paper machine, can be directly connected with the paper machine, saving labor costs.
●PLC+ host computer control mode, real-time display of upper computer, record cell sorting data.
● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.
● With manual parameter modification function, you can fine-tune each gear, or you can use the one-key modification function to adjust.
● Sorting gear ramp design, cutting port, convenient to receive materials, improve production efficiency.
● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention, anti-static.
| Production efficiency | 50-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | Diameter: 18-32; Length: 65-70 | Transmission mode | belt transmission |
| Sort the gears | 4+1 | Product loss rate | 0 |
| SBM Series | HIOKI3561/HOPE350 | Frame material | Aluminium alloy |
| Voltage accuracy | 0.1% (according to the internal resistance meter) | Machine Dimensions | 1600*600*1650MM |
| Internal resistance accuracy | 0.5%(depending on internal resistance meter) | Machine Weight | 220KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery sorting |
The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --
the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --
the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out
1.Inspection and testing organization
4-probe design, simultaneous detection of positive and negative electrodes, equipped with a branded internal resistance meter for more accurate detection data.According to the test parameters, the upper computer analyzes the data and classifies cells into designated channels.
2.Loading mechanism
Humanized design makes it easy to fill the entire box. A large hopper can accommodate 200PCS 18650 batteries at a time.
3.Operating interface
Using a 7-inch touch screen, gear parameter settings are simple and fast. Real time display of sorted data.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Our products are sold all over the world, you can rest assured.
