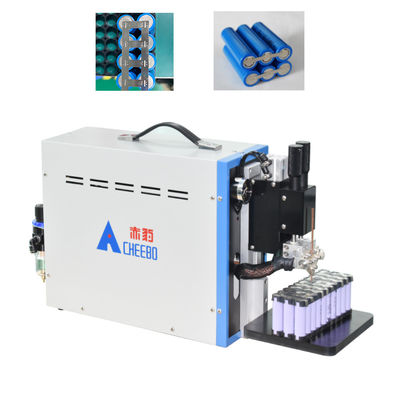

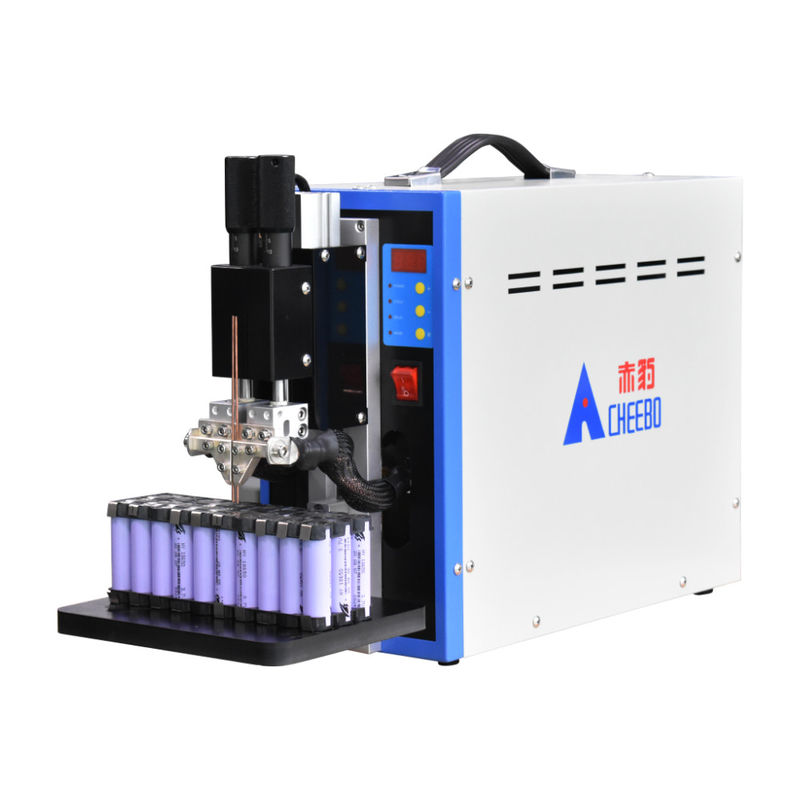

Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine

Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine

  • Highlight

    Multi Pulse Precision Spot Welding Machine

    ,

    Integrated Precision Spot Welding Machine

    ,

    Lithium Battery Precision Spot Welding Machine

  • Usage
    Spot Welding
  • Condition
    NEW
  • Warranty
    1 Year
  • Weight
    45KG
  • Dimensions
    640mm*200mm*360mm
  • Product Name
    Portable Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine

Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine


Equipment introduction



● Controlled by a single-chip computer, it can achieve single-pulse, multi-pulse, and dual-pulse welding.

● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no false welding, small sparks, and excellent surface quality.

● Independent welding pin with spring buffering design for precise adjustment of welding pressure.

● The welding head platform can be adjusted up and down, allowing welding of various sizes of batteries.

● Using imported alumina copper electrodes, pure purple copper welding cables, pure copper electrode clamps, and other high-quality accessories, the machine is durable.

● Precise control by intelligent chips, imported control chips, microsecond-level corresponding chip integration process, small size, able to work for long hours, and stable operation.

● All parameters are set digitally, providing stable, intuitive, and accurate parameter adjustment.

● The welding adopts vertical spot welding with adjustable pressure depth.

● Pneumatic precision welding heads developed by CHEEBO feature precise pressure adjustment control.

● Digital LED display for more intuitive adjustment of equipment parameters, easy to learn and operate.

● Controlled by microcomputer technology, grid voltage control, and automatic tracking compensation.

● The portable lithium battery spot welding machine adopts an all-in-one design, saving space and easy to carry.

● The welding machine can pre-store multiple programs, which can be changed and recalled as needed.

● Compact structure, small size, high power, and industrial circuit design ensure a safe and reliable welding process.



Product introduction



This product is currently widely popular AC pulse spot welding machine, using microcomputer single-chip microcomputer control, stable and



reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack



welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding,



stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance



and proofing.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 0Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 1Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 2





Function Introduction



1. Pneumatic precision welding head

Double point welding head with both left and right electrodes simultaneously pressed down, precise and adjustable. Flexible and fast pressurization, with good pressure follow-up. High machining accuracy and small electrode inertia. The built-in pressure local sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.



Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 3



2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 4



3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Lithium Battery Multi Pulse Precision Integrated Precision Spot Welding Machine 5



Debugging project
  1. Welding pressure: 1-5 kg/F
  2. Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3. Air pressure regulation
  4. Adjustment of needle extension length
  5. Adjust the position under the table top
  6. Adjust the spacing between the left and right pins



FAQ



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
