Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine

Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine

  • High Light

    Lithium Battery Spot Welding Machine

    ,

    Rail Spot Welding Machine

    ,

    Gantry Spot Welding Machine

  • Current Output Mode
    DC
  • Usage
    Spot Welding
  • Dimensions
    700*1200*1450mm
  • Machine Type
    Semi-automatic
  • Port
    According To The Buyer's Demand
  • Product Name
    Guide Rail Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine

Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine


Equipment introduction

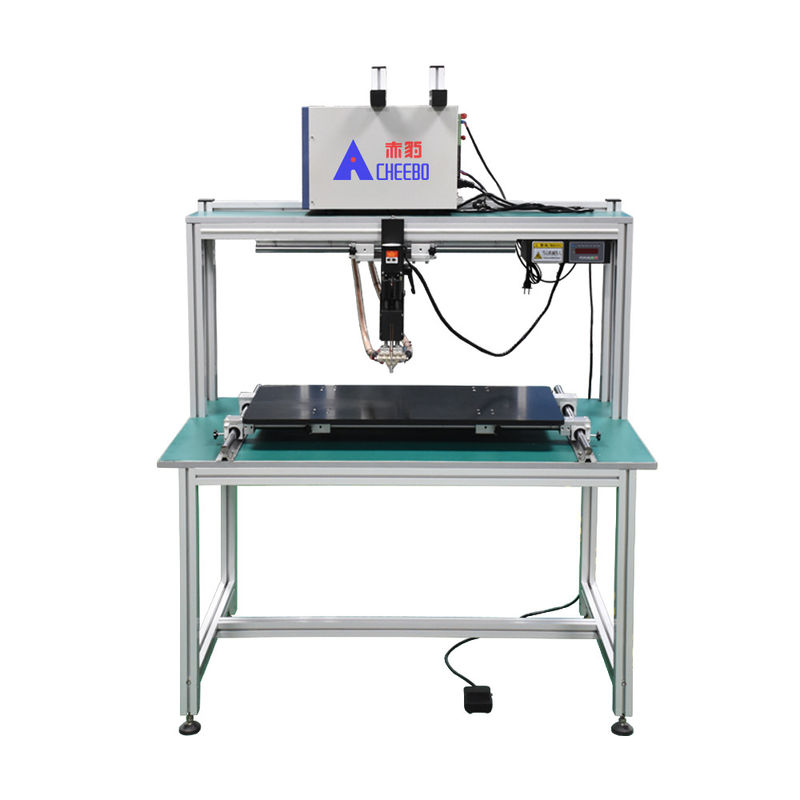

● Pure electric without cylinder, low noise, fast speed, stable pressure.


● Double guide rails are thicker and thickened, the chassis is stable and firm, not easy to deform. Welding head can be moved up and down, according to the size of the battery pack to move the welding head, convenient welding.


● Self-developed precision welding head, precise pressure adjustment and control.


● Desktop guide rail can be pushed and pulled back and forth to move, the stroke is 750*350mm.


● The guide rail is easy to move, saves time and effort, greatly shortens the welding time and improves the manual welding speed.


● No need to push the battery pack in the spot welding process, saving energy and fast, the platform can load 50KG, especially suitable for large battery pack welding.


● Transistor welding power supply, current rising speed, short time to achieve high quality welding.


● Three welding modes: constant voltage, constant current and constant voltage and current.


● Compact structure, small size, high power, no need for welding transformer.


● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


● 5.7-inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, can be pre-stored multiple procedures.


● Energy saving and environmental protection, stable and efficient, low power consumption of the equipment.



Device action flow description



Power on - detect whether the WELED switch is on - turn on the power of the motion control system - weld head action - find the home position -



place the product to be welded on the table - step on the foot pedal - weld head down - spot welding completed - weld head back in place



Technical specification



Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine 0



2. Guide rail design

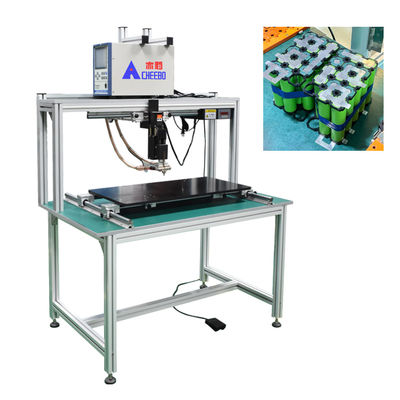

Double rail thickened design, stable and firm chassis, not easily deformed. The guide rail can move left and right, and the welding head is also equipped with a guide rail design, suitable for assembling and welding large batteries, saving time and effort.


Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine 1



3. Electric precision welding head

Horizontal welding structure, double track guide rail design, and adjustable left and right pressures. Built in pressure sensor for precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.



Lithium Battery DC Power Supply Rail Type Gantry Spot Welding Machine 2



  • Welding precautions



1. Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2. For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3. Clean the end face of the spot welding needle regularly.



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
