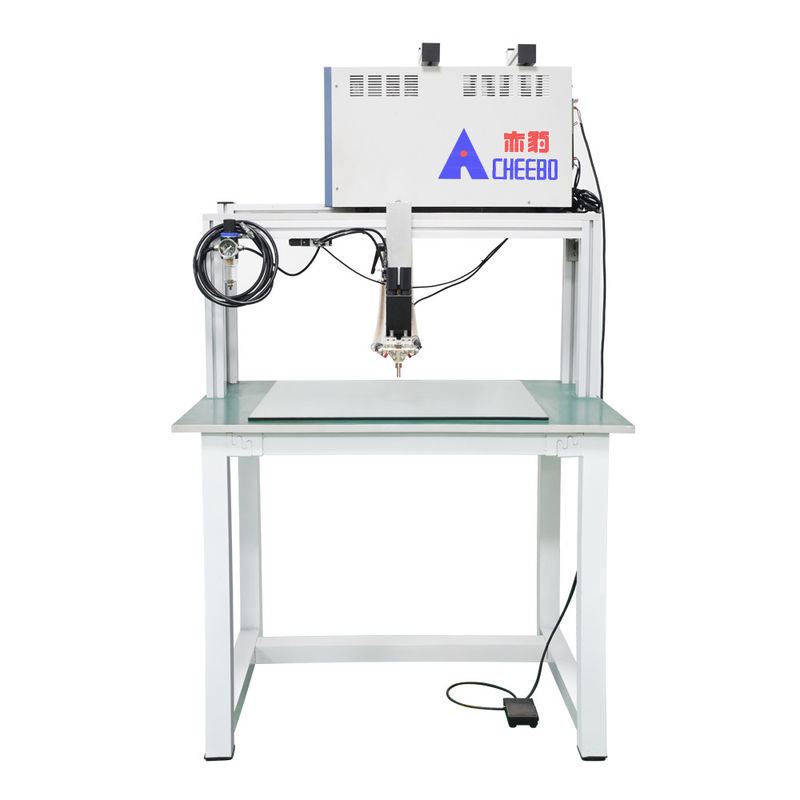

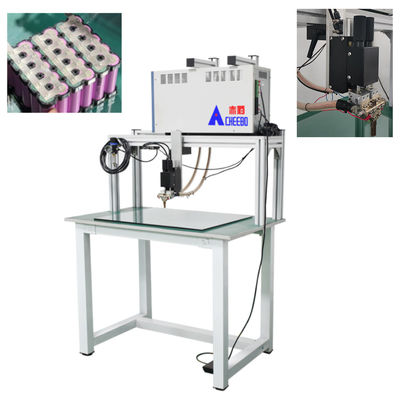

Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine

Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine

  • High Light

    Bipolar Spot Welding Machine

    ,

    Lithium Battery Spot Welding Machine

    ,

    Lithium Battery Desktop Spot Welding Machine

  • Voltage
    220v
  • Usage
    Spot Welding
  • Max. Welding Thickness
    0.3mm
  • Machine Type
    Semi-automatic
  • Bipolar High-efficiency Output Welding Lithium Battery Semi-automatic Desktop Spot Welding Machine
    PLC, Transistor Power Supply, Foot Switch, Welding Head, Control Box
  • Main Selling Point
    High Precision
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    10 Set/Sets per Week

Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine

Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine

Equipment features:

  • The bipolar output eliminates the welding polarity effect and makes the energy on both sides of the welding electrode consistent.
  • Using the energy stored in capacitors for welding, it can also be used in small power supply conditions.
  • The welding power supply is controlled by switching mode, which can realize small and efficient welding with high output.
  • The welding current of the power supply rises fast, achieving high quality welding in a short time.
  • Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.
  • 5.7 "HD LED display, convenient and intuitive device parameter adjustment, can store multiple programs.
  • There are three welding modes: constant voltage, constant current and constant voltage and current combination.
  • The output current has the function of polarity switching, effectively eliminating the polarity in the welding process.

Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine 0Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine 1Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine 2Bipolar High-Efficiency Output Welding Lithium Battery Semi-Automatic Desktop Spot Welding Machine 3

Equipment technical parameter


Welding mode Single side double point balance welding
Welding thickness 0.04-0.25mm
Supply current 5000A
Spot welding mode A raised or pointed point
Equipment power 12KW
Driving mode Electric/Pneumatic (optional)
Table top and weld head height 250MM (maximum pitch) adjustable
Welding power supply transistor
Welding speed 200P/M (Max)
Welding pressure 5KG/F (adjustable)
