Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine

Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine

  • High Light

    Multi Pulse Spot Welding Machine

    ,

    Lithium Battery Spot Welding Machine

    ,

    Gantry Spot Welding Machine

  • Usage
    Spot Welding
  • Condition
    New
  • Weight
    60kg
  • Max. Welding Thickness
    0.3mm
  • Product Name

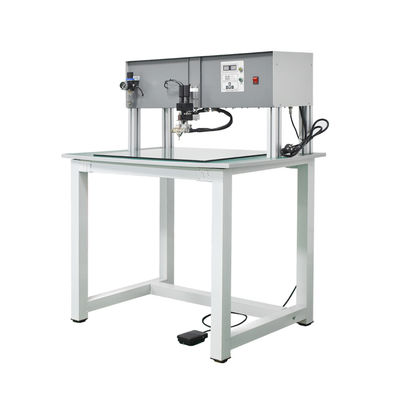

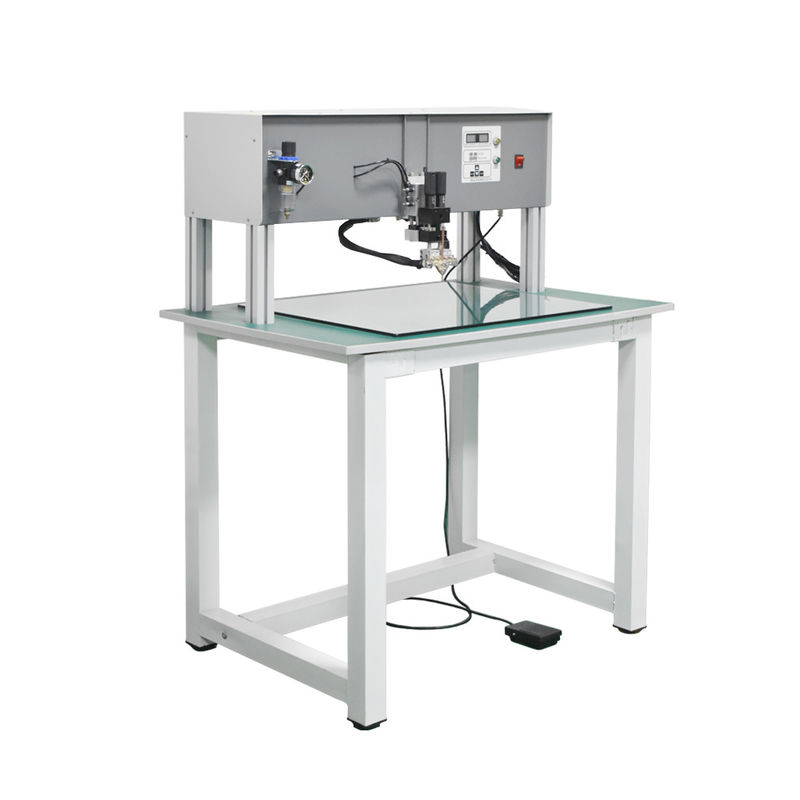

    Gantry Lithium Battery Precision Spot Welding Machine
  • Machine Type
    Semi-automatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-23
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine

Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine




Equipment introduction



● Product application scope: pack welding of power lithium-ion battery, welding of 3C lithium-ion battery pack, welding of Nickel–metal hydride



battery pack, welding of small hardware parts, welding of electronic and electrical parts, wire terminal welding, welding of stainless steel parts,



welding of metal jewelry, welding of copper products, welding of aluminum products, etc. It is also suitable for welding work such as product



maintenance and sampling.



● Multi-pulse regulation can improve the output energy waveform of welding, improve the welding ability, make the solder joint firm and beautiful.


● Self-developed precision welding head, precise pressure adjustment control.


● Microcomputer technology control, control voltage grid, automatic tracking compensation.


● The welding machine can pre-store multiple programs, welding different materials can be changed, call different energy for welding.


● High quality tempered glass is used to protect the desktop from wear during welding.


● Vertical spot welding method for spot welding, manual control of the depth of pressure.


● Compact structure, small volume, large power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.02-0.15MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 2800A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 7KW Equipment size 600*900*1150MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1. Multi-pulse welding power supply

Exclusive output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no false soldering, small cremation, and good surface quality.



Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 0



2. Pneumatic precision welding head

Horizontal welding structure, dual track guide rail design, and adjustable left and right pressures. Built in pressure sensor for precise control to apply stable pressure.

Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 1



3. Cylinder drive

The air source interface is connected to the pressure regulator to regulate the air source pressure and filter water. The gas is transported to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 2



Equipment workflow



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on



the pedal -- push down the welding head -- spot welding completed -- return the welding head



  1. Welding case



Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 3 Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 4 Multi Pulse Gantry Lithium Battery Precision Spot Welding Machine 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
