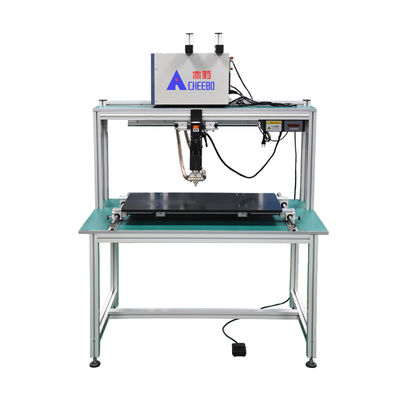

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries

  • High Light

    cylindrical lithium batteries spot welding machine

    ,

    guide rail spot welding machine

    ,

    desktop spot welding machine

  • Voltage
    220v
  • Usage
    Spot Welding
  • Condition
    New
  • Dimensions
    700*1200*1450mm
  • Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Machine Type
    Semi-automatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries

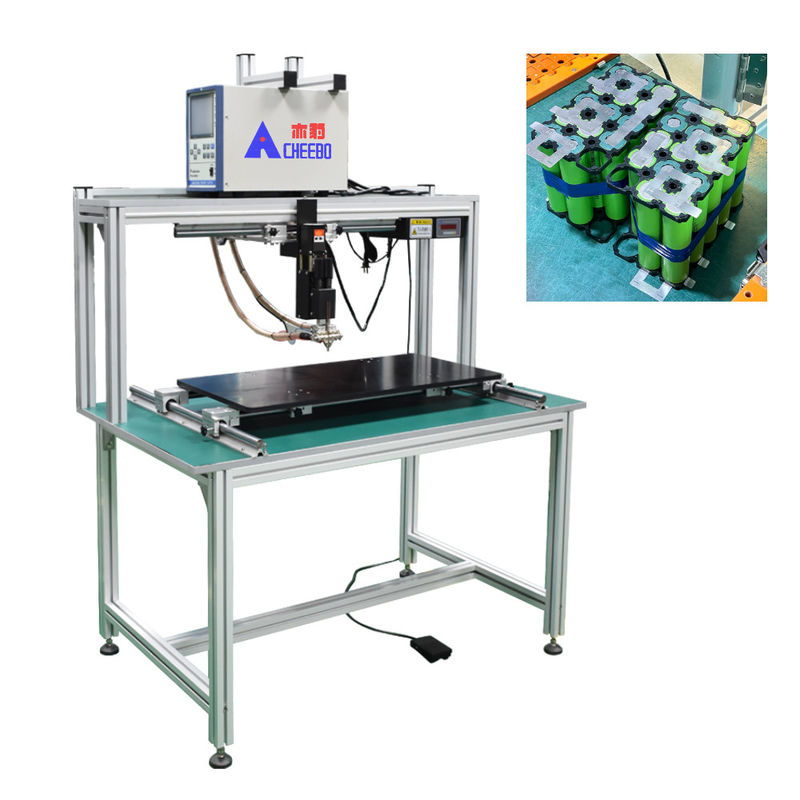

Equipment introduction

​​This lithium battery spot welding machine adopts transistor welding power supply, the current rises fast, and achieves high quality welding in a short time.


​​Three welding modes can be adjusted: constant voltage, constant current and constant voltage current.


​​Compact power supply, small size, large power, no need to weld transformers.


​​Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


​​5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.


​​Pure electric no cylinder, low noise, fast speed, stable pressure, does not affect the welding quality due to external air source interference.


​​Independently developed precision welding head, the pressure can be accurately adjusted and controlled according to the thickness and material of nickel sheet to achieve precision welding.


​​Double guide rail thickening, the chassis is stable and firm, not easy to deformation.


​​Welding The welding head can be moved up and down, and the welding head can be moved according to the size of the battery pack for easy welding.


​​The table guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.


​​The spot welding process does not need to push the battery pack, saving energy and fast, the platform can carry 60KG, especially suitable for large battery pack welding.


​​The guide rail is convenient to move, saving time and labor, greatly shortening welding time and improving manual welding speed.


​​Energy saving and environmental protection, stable and efficient, low power consumption of equipment.

  1. Welding case

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 0 Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 1 Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 2

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Driving mode Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

  • Welding precautions

1.Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2.For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3.Clean the end face of the spot welding needle regularly.

Function Introduction

1. Electric control

No additional air source required, low noise, fast welding speed, and stable pressure.



Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 3



2. Guide rail design

Double rail thickened design, stable and firm chassis, not easily deformed. The guide rail can move left and right, and the welding head is also equipped with a guide rail design, suitable for assembling and welding large batteries, saving time and effort.


Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 4



3. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.

Semi Automatic Guide Rail Desktop Spot Welding Machine For Cylindrical Lithium Batteries 5
