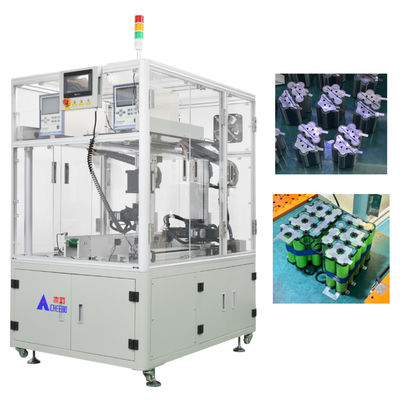

● This lithium battery spot welding machine adopts the electric precision rotating welding head independently developed by ceebo technology. The 135° rotating welding head design can set the rotation Angle of the welding head according to the slot position of the nickel sheet to avoid welding errors caused by the failure of the welding head to rotate. At the same time, it has the function of anti-sticking needle.

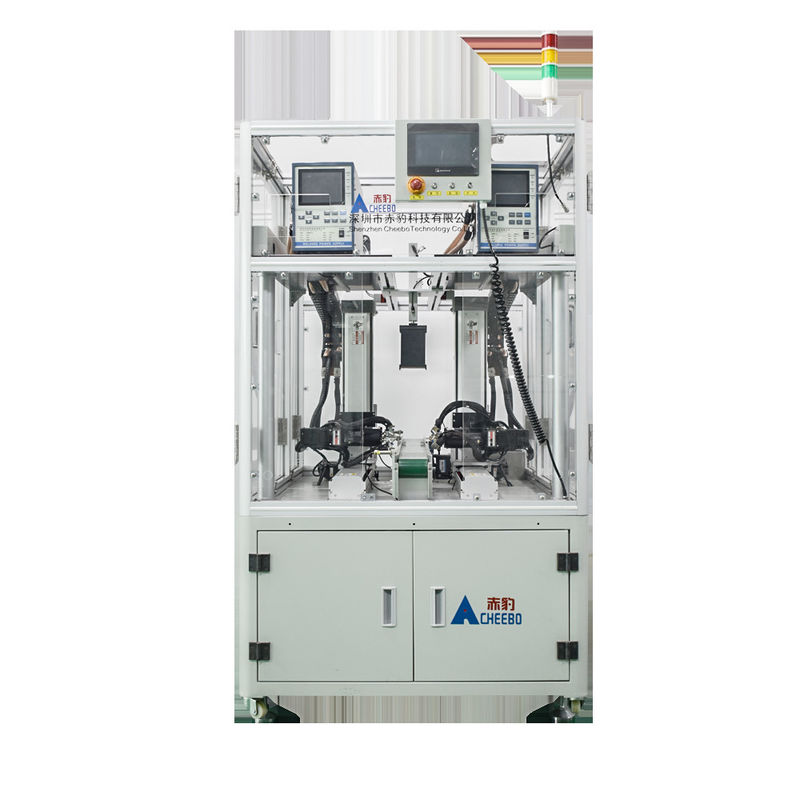

● The left and right sides are welded at the same time, the left and right platforms can be independently set welding parameters, and the welding path and rotation Angle and direction can be independently set according to different welding requirements.
● HD LCD touch screen, human-machine interface, easy to operate. Manual programming, CAD drawing, importing spot welding path, fast programming. Simple and easy to learn, ordinary workers can set.
● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.
● Production count function, set the production quantity, complete the output automatically stop.
● Welding needle compensation function, set the number of welding needles, and automatically remind when the number of repairing needles is reached.
● Manual debugging function, you can fine-tune the welding head of each point, and save the spot welding parameters (easy to modify the welding coordinates), you can also use the one-click correction function to adjust.
● The designed structure (forward forward out or forward forward out) can be connected with the back-end production line, and can be taken out on the other side after welding to improve production efficiency.
● Blast welding, virtual welding, automatic alarm of welding equipment, manual adjustment of welding error area, automatic repair welding, can also set single point repair welding.
● Taiwan upper silver rod guide module, high precision, low noise, smooth sliding, durable.
● Aluminum alloy skeleton, imported acrylic shielding plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.
The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device
automatically spot-welds the device to the extraction position (select the discharge method: forward forward out, forward forward
out) -- the battery pack is removed from the fixture -- and the next production cycle is carried out
| Production efficiency | 3600PCS/H | Welding head rotation | Yes |
| Welding thickness | 0.02-0.3MM | Type of cooling | Forced water circulation cooling |
| Welding source | Transistor/multipulse (Optional) | Mode of motion | Automatic continuity |
| XY shaft welding accuracy | 0.1MM | Welding pressure | 5KG/F |
| Electrode material | Copper alumina | Machine Dimensions | 1400*1000*1680MM |
| XY shaft welding stroke | 360MM*500MM | Machine Weight | 330KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery welding |
1. Transistor welding power supply
Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.
2. Hd touch screen
Real time display of welding data and welding hole positions. The system parameter settings are simple and easy to learn.
Support manual programming, CCD mapping, importing solder joint paths, and achieving fast programming.
3. Electric rotating welding head
The welding head can rotate 135 ° for welding, suitable for irregular nickel plates, and also has anti stick needle function.
The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.
1. Energy storage battery pack 2. Electric bicycle battery pack 3. Electric tool battery pack
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Our products are sold all over the world, you can rest assured.
